Quick Details
-
Brand Name:
-
JMEI
-
Model Number:
-
YC-08
-
Dimension (L x W x H):
-
420*495*600mm
-
Product name:
-
15 sound sistema rcf active line array
-
Application:
-
weddings, conferences, roadshows
-
Keyword:
-
professional audio, Passive Speaker
-
Frequency response:
-
125Hz-18KHz
-
Maximum sound pressure:
-
123db
-
Dimensions:
-
1085*163*172mm
-
Package Size:
-
1150*220*232mm
-
Net Weight:
-
26KG
-
Impedance:
-
6Ω
Quick Details
-
Power:
-
850W, 850W
-
Frequency Range (Hz):
-
70Hz-18KHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JMEI
-
Model Number:
-
YC-08
-
Dimension (L x W x H):
-
420*495*600mm
-
Product name:
-
15 sound sistema rcf active line array
-
Application:
-
weddings, conferences, roadshows
-
Keyword:
-
professional audio, Passive Speaker
-
Frequency response:
-
125Hz-18KHz
-
Maximum sound pressure:
-
123db
-
Dimensions:
-
1085*163*172mm
-
Package Size:
-
1150*220*232mm
-
Net Weight:
-
26KG
-
Impedance:
-
6Ω
YC-08 is a 2-way range passive speaker, it forms by a 1.73" compression driver and one 8" low-frequency loudspeaker. Pair with anactivesub YC-15B, which is formed by a 15" supper low-frequency loudspeaker and 18mm thick plywood. Together it makes a perfect combination. Thanks to the in-built amplifier module with DSP processor, which makes the sound delicate, solid and powerful. Its delicate and elegant appearance and the easy set up design, which is a perfect choice for different events, such as weddings, small parties.
|
Model |
YC-08 |
YC-15B |
|
System |
Full Frequency |
SUB |
|
bass & treble |
LH:1*8; HF:1*1 |
LH;15*1 |
|
Response frequency |
70Hz-18KHz |
30Hz-300Hz |
|
impedance |
8Ω |
4Ω |
|
sensitivity |
97dB |
96dB |
|
Maximum pressure |
120dB |
123dB |
|
Power |
200W |
450W |
|
Size(WxDxH) |
420mm×230mm×267mm |
420mm×495mm×600mm |
|
N.W. |
11.9KG |
26KG |

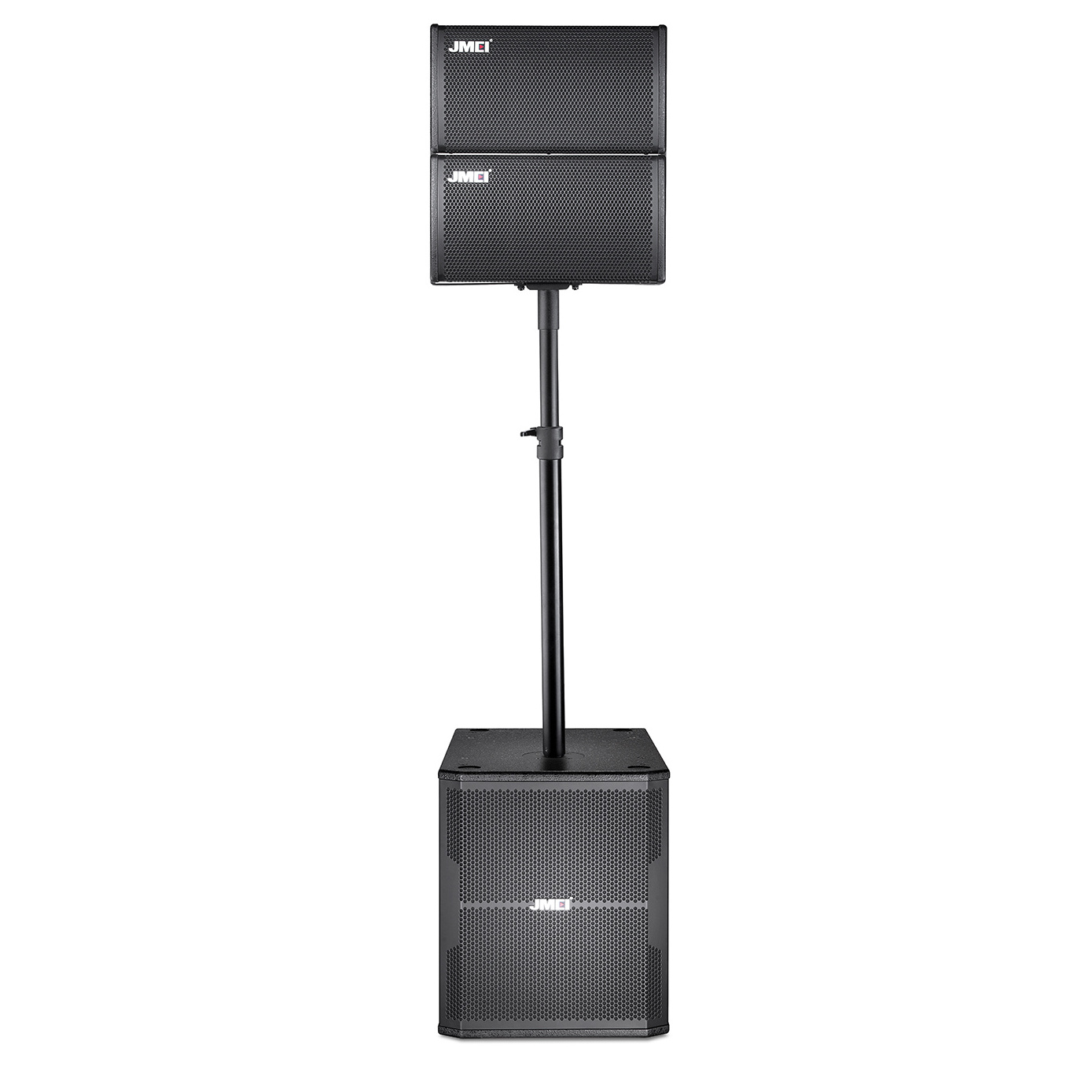

YC-08 with YC-15B is an active linear array specially designed for theatres, stadiums, multi-functional, banquet halls, small and medium-sized indoor and outdoor performances, etc.
