Quick Details
-
Model Number:
-
pfa tube1/8''
-
Specification:
-
ID 0.9mm~100mm
-
Length:
-
100m/roll 200m/roll 300m/roll
-
Thickness:
-
0.15mm-4.00mm
-
Standard:
-
ISO9001:2000
-
Colour:
-
Transparent
-
Coefficient of elongation:
-
280-400
-
Specific gracity:
-
2.17
-
Tensile strength:
-
27-35
-
Oxygen Index:
-
>95vol.%
-
Water absorption:
-
>0.01%
-
Permittivity:
-
2.1
-
Melting point:
-
302-310℃
-
Max temperature:
-
250 ℃
-
MOQ:
-
100meter
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUSUI
-
Model Number:
-
pfa tube1/8''
-
Specification:
-
ID 0.9mm~100mm
-
Length:
-
100m/roll 200m/roll 300m/roll
-
Thickness:
-
0.15mm-4.00mm
-
Standard:
-
ISO9001:2000
-
Colour:
-
Transparent
-
Coefficient of elongation:
-
280-400
-
Specific gracity:
-
2.17
-
Tensile strength:
-
27-35
-
Oxygen Index:
-
>95vol.%
-
Water absorption:
-
>0.01%
-
Permittivity:
-
2.1
-
Melting point:
-
302-310℃
-
Max temperature:
-
250 ℃
-
MOQ:
-
100meter
Company introduction
Our company is one of the most reputed manufacturer in Jiangsu ,specializing in fluorine plastic products’ researching and producting,which is located in Wuxi and 55 minutes road to shnaghai,China.We make a wide variety of extruded plastic tube including FEP, PFA, PTFE tube and other products related. Besides, clients’ order as well.
The products we made have gained ISO 9001:2000 certification and ROSH approval with many advantages like : excellent high and low temperture resistance , noncombustible , good tensile strength and so on .They are widely used in aerospace, apparatus, medical treatment ,electronics ,telecom ,petro-chemical, metallurgy electrical powder, home electronics, and decoration illumination.
In recenet years ,we have achieved good results on domestic trade ,and has achieved a certain fame in the plastic industry.With strong technical strength and the capacity of self-development production ,we have established long partner relationship with Asian clients.For example, Kanken Techno Co.,Ltd. in Japan.We hope to cooperate with you ,offering excellent products with reasonable price,and quality service.

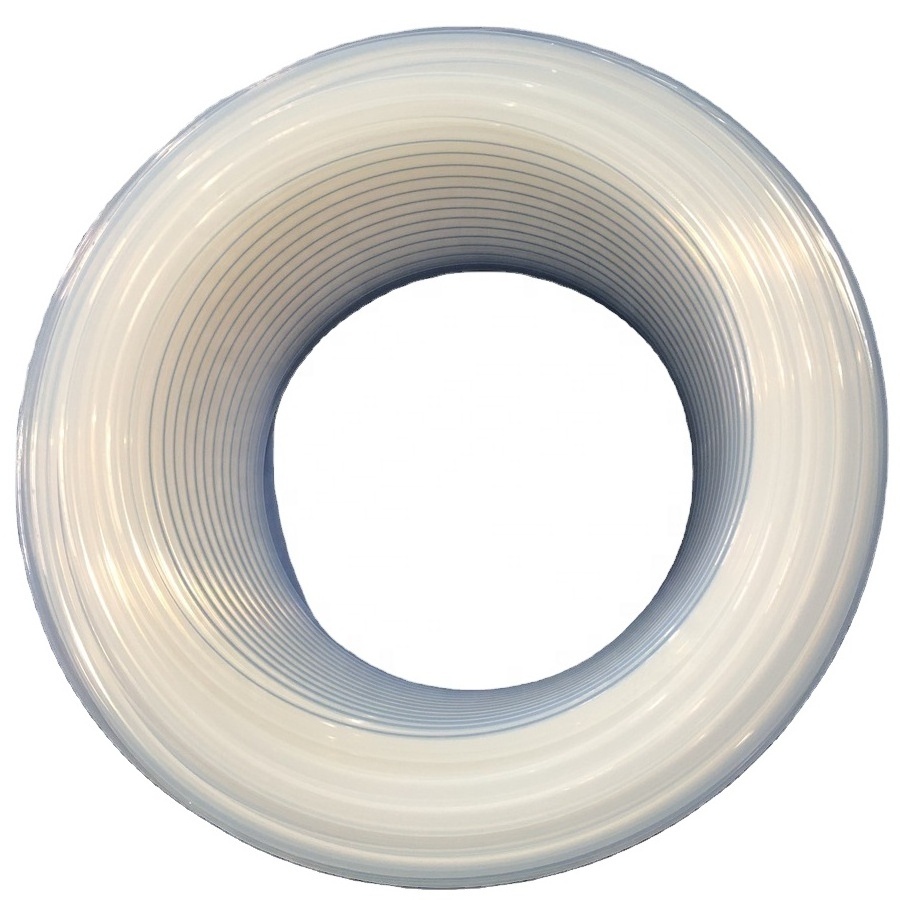

PFA tube
Usage
1. Semi-conductor product equipment
2. Heat exchange equipment ,steam tubing.
3. High pure reagent pipe
4. All kinds of causticity medium (rigor impregnant) pipe
5. Double pole ionic membrane caustic soda producing tube
6. Electric wire and cable jacket, slot insulation tube
7. Fluorin plastic O airproof loop tube
Characteristic
1. High and low temperature preservation
2. -200~255°C high temperature intensity better than F4
3. No-begriming ,and no-stagnant in tube
4. Security and insulation
5. Under 60HZ—60MHZ high and low temperature , permittivity is 2.1
6. If firing, and will still insulate
7. Voltaic are>165 seconds insulation
8. Erode preservation
9. Under high temperature, fluorin and alkali will reaction with PFA, no reaction with other acid.
10. Low water absorption<0.01%
11. No firing in air( oxygen index>95 vol.%)
12. No poison, with physical inertia
13. High diaphaneity, lowest refractive index in plastic material
14. Weather-assistant, under ozone and sunshine for long time
15. Easy to process for second time self-close, self-joning and self-turning.
Properties
|
PFA |
||
|
Items |
Properties |
Indicators |
|
physical properties |
specific gravity(g/cm³) |
2.12~2.17 |
|
meltingpoint(°C) |
302~312 |
|
|
melt index(g/10min) |
5~25 |
|
|
electrical properties |
tensile strength(Mpa) |
27~29 |
|
elongation at break(%) |
250~300 |
|
|
rigidity(SH) |
D60~70 |
|
|
coefficient of kinetic friction |
0.2 |
|
|
mechanical properties |
volume resistivity(Ω.CM) |
≥10 18 |
|
insulated breaking voltage(0.2mm)/(mv/m) |
20 |
|
|
dielectric constant 1MHz |
2.1 |
|
|
dielectric loss angle tangent 1MHz |
≤0.003 |
|
Specifications
|
ODmm |
IDmm |
g/m |
|
2.00-2.80 |
1.6 -2.30 |
2.45-4.35 |
|
3.00-3.9 |
2.00-3.30 |
8.52-7.36 |
|
4.00-4.90 |
2.00-4.50 |
20.45-6.41 |
|
5.00-5.50 |
3.00-5.00 |
27.27-8.95 |
|
6.00-6.90 |
3.00-6.50 |
46.01-9.13 |
|
7.00-7.60 |
5.00-7.20 |
40.90-10.09 |
|
8.00-8.20 |
5.00-7.40 |
66.47-21.27 |
|
9.00-9.60 |
6.00-9.00 |
76.69-19.02 |
