1. The feeding system adopts pinch roll feeding, which is suitable for bar diameter range of 40-120mm.
2. The feeding speed is controlled by variable frequency motor and the feeding speed is adjustable.
3. The pitch roller feeding motor and the reducer all adopt aluminum shell, which can effectively prevent the hot around the coil.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
500KW
-
Usage:
-
heating rebar for hot rolling
-
Certification:
-
ISO9001:2000/CE
-
voltage:
-
380v 50HZ
-
market:
-
south east asia, africa, middle east, south america etc.
-
cooling:
-
water cooling
-
service:
-
provide long-terms technical support
Quick Details
-
Place of Origin:
-
Henan
-
Brand Name:
-
Hongteng
-
Name:
-
induction heater medium frequency
-
Power:
-
500KW
-
Usage:
-
heating rebar for hot rolling
-
Certification:
-
ISO9001:2000/CE
-
voltage:
-
380v 50HZ
-
market:
-
south east asia, africa, middle east, south america etc.
-
cooling:
-
water cooling
-
service:
-
provide long-terms technical support
Why Choose Us
Product Description

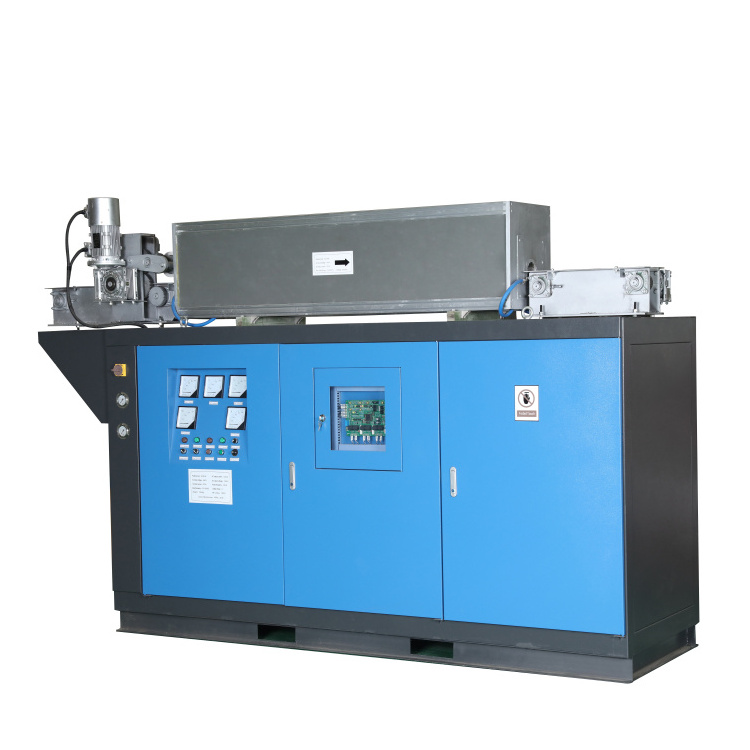

Forging used medium frequency induction heater
1. Medium frequency power supply and heating furnace are designed together
2. Save space
3. 24 Hour continuous work
4. Water cooling tower
5. infrared thermometer
6. Temperature reject system
7. Automatic pinch roller feeding
8. Chain wheel quick disharge
Furnace body Part :
1. Furnace body frame use national standard aluminum, nice appearance looking ,not give hot.
2. The induction coil inside the furnace body is insulated by two insulation treatment. First spray high temperature insulating paint. The second is wrapped around the fiberglass ribbon. The service lifetime of the treated furnace lining and induction coil will be more than doubled.
3. The water inlet and outlet of furnace body adopt water-cooled copper plate to improve the service life of furnace lining.
4. The top of furnace body is designed with sliding cover design, which makes it more convenient for maintenance personnel to maintain the furnace body.
5. The cooling water pipe of the furnace body adopts high temperature carbon-free hose, and the water hose can work for a long time under the ambient temperature of -18c --120C. The service lifetime is more than three years.
Feeding System Part :
|
Specification And Technical Parameter
|
|
|
|
|
||||
|
Model
|
MF power
|
Input voltage
|
DC Current
|
MF frequency
|
||||
|
GTR-200
|
200kw
|
3ph,380V
|
400A
|
2-10KHZ
|
||||
|
GTR-300
|
300kw
|
3ph,380V
|
600A
|
2-10KHZ
|
||||
|
GTR-400
|
400kw
|
3ph,380V
|
800A
|
2-10KHZ
|
||||
|
GTR-500
|
500kw
|
3ph,380V
|
1000A
|
2-10KHZ
|
||||
|
GTR-800
|
800kw
|
3ph,380V
|
1600A
|
2-10KHZ
|
||||
|
GTR-1000
|
1000kw
|
3ph,380V
|
2000A
|
2-10KHZ
|
||||
|
GTR-1600
|
1600kw
|
3ph,380V
|
3200A
|
2-10KHZ
|
||||
|
GTR-2000
|
2000kw
|
3ph,380V
|
4000A
|
2-10KHZ
|
||||
Fumace Application
WE HAVE RICH EXPERIENCE IN PRODUCING INDUCTION FORGING HEATER
INDUCTION HEATER MOST USED IN FOLLOWING APPLICATIONS:
1.Used in forging factory. Heating furnace most used for preheat material before forge.
2.Used in 3PE anticorrosion production line.Heating furnace use for heating pipe before coating.
3.Used in Rebar production line.Heating furnace most used for reheat the billets to high temperature before goes into rolling mill.
Steel pipe medium frequency induction heating
3PE Coating production line
steel billet as raw material produce rebar
1. induction heating furnace for rebar heating
2. rolling mills for produce diameter 8-32mm rebar
3. cooling bed, hydraulic cutting machine
More Products
Aluminum melting furnace IGPS
KGPS power supply
Ciosed cooling tower
About Us
Luoyang Hongteng Electric Equipment Co.,ltd are expert of induction furnace, over 15 years prouction expericence. Professional technical team and service team. Sincerely looking forward to your visit our factory .
Electric board
The main control circuit board is the core component of the machine.high quality. We have many stocks.
Main control circuit board as the main part of the machine, we made in their research and development, and adopted by the company and built since the automatic welding and testing equipment to ensure that each set of machine can achieve the best effect, and we have main control board in stock lone time, can satisfy the parts supply problems.
Induction coils
The induction coil inside the furnace body is treated with two insulations. The first spray of high temperature insulation paint. The second round of glass fiber tape. The service life of the treated furnace lining and induction coil will increase by more than two times.
Drawings
technical drawings of automaic tilting induction melting furnace .
meeting
learning traing product knowledge
our team,Hongteng company have professional technical team, excelent sale persons, forgein trade servcie person.
test maching runing
our technical staff are testing machine running
FAQ
1: Are you the Manufacturer or a trading company?
We are direct manufacturer specialized in produce in machinery for 15 years.Our factory located in high industry zone,Luoyang city,henan province,where is the biggest industry machinery manufacturing base in china.
2: Why should we choose Hongteng?How do you ensure the quality?
We have professional research staff and strict in Production,inspection and debugging and package process.We always insist on supply good pre-sales,order following,after sell service for our customers.
We have professional QC person inspect machinery production.After production finished,all machines will be testing & debugging carefully before shipment.
3: Which kind of power supply do you supply? Electricity or gas?
Electricity.
4: How can I trust your company and machine?
Our factory have been in producing machinery for around 15 years ,our machine have exported to East Asia, South Asia, the middle East Asia, Africa etc. areas and have a good feedback with no complaints.
Welcome to visit us,and have a face to face negotiation.
5: How do you control the quality?
We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.
6: Which county do you exported to ?
We have already exported our machines to many famous company in many countries, such as Vietnam,Indonesia,Myanmar,Qatar,Iran,Ukraine etc . Welcome customers to visit our factory.
7: How about your after sales service?
After customers get machines,We will send our engineers to customer's workshop.We will supply installation & debugging & training service for customers till machine normal production.
