Color Doppler Trolley Ultrasound Machine 4d Ultrasound Scanner Medical Instrument 3D 4D 5D Trolley Ultrasound Machine

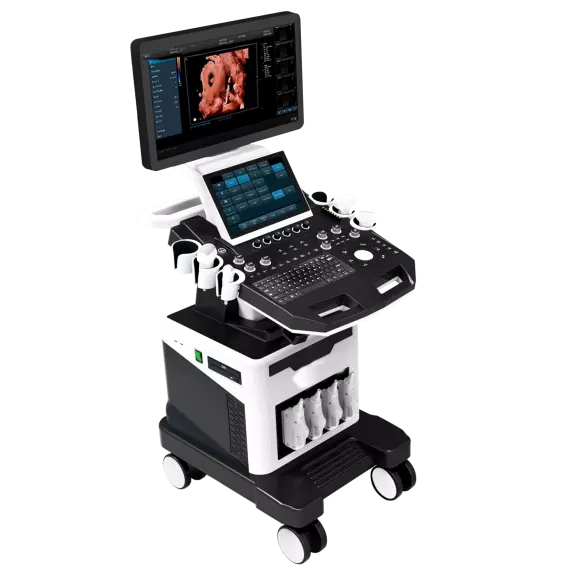

1.Product Name: Color Ultrasonic Diagnostic Apparatus

Structure type: Dual-screen trolley type

2.Main specifications and system overview

2.1 Operating system: Windows 8
2.2 Pulse Wave Doppler
2.3 Directional Energy Doppler
2.4 Real-time triple synchronization
2.5 Spatial Composite Imaging
2.6 Tissue Harmonic Imaging
2.7 2B/4B Imaging
2.8 Support system languages: Chinese, English, French, Russian, Spanish.
2.9 Standard monitor size: 21.5 inch, high-definition medical grade LCD display, and 13.3 inch touch screen
2.10 Integrated clipboard: display the saved images at the bottom of the screen, which can be directly transferred or deleted
2.11 With on-site upgradeable functions
2.12 Preset conditions: For different inspections, preset inspection conditions for optimized images, reducing adjustments during
operation, and commonly required external adjustments and combined adjustments
2.13 Support real-time 3D imaging function (3D/4D/5D)
2.14 Probe ports: 4 active
2.15 Trapezoidal Imaging
2.16 One-key auto optimization

3.2D mode

3.1Gain: 0－100, single step 1, visible and adjustable
3.2TGC: 8 segment adjustable
3.3 Dynamic range: 20-280dB, 20 levels visible and adjustable
3.4 Pseudo color: 12 kinds, visible and adjustable
3.5 Sound power: 5%－100%, single step 5%, visible and adjustable
3.6 Body mark: 6 kinds
3.7 Number of focus: max 6
3.8 Gray Scale: 0-7, visible and adjustable
3.9 Filtering: 0-4
3.10 Scanning range: 50%-100%
3.11 Frame related: 0-4, visible and adjustable
3.12 Real-time display of 14 parameters such as sound power, probe frequency, dynamic range, pseudo color, gray scale, etc., which
are adjustable
3.13 Scanning line density: high, medium and low adjustable
3.14 Noise reduction: 0-14
3.15 Pseudo-color spectrum: 0-11
3.16 Support frequency compound

4.Color Imaging Mode

4.1 Color deflection: available
4.2 Color frame related: 0-12 levels, visible and adjustable
4.3 Color map: 0-3 levels, visible and adjustable
4.4 Color flip: adjustable
4.5 B/C split screen synchronous display function: available
4.6 Color baseline: 11 levels, visible and adjustable
4.7 Color line density: high and low adjustable
4.8 Wall filter: 0-5 level adjustable

5.Pulse Wave Doppler Mode

5.1 Sampling volume angle correction: -80°～80° adjustable
5.2 Sampling volume: 0.5mm-20mm visible and adjustable
5.3 Frequency: 2.5MHz and 3.0MHz visible and adjustable
5.4 Baseline: 11 levels adjustable
5.5 Pseudo-color spectrum: 0-5
5.6 Display layout: 4 kinds, visible and adjustable
5.7 Pseudo-color: 6 kinds adjustable
5.8 Speed scale: 3-2288cm/s
5.9 Spectrum envelope function: real-time automatic spectrum envelope, manual spectrum envelope and other modes are available, the
system automatically analyzes and displays: PSV, EDV, RI, PI, S/D, ACC, HR and other data
5.10 Grayscale: 0-7
5.11 Wall filter: 0-12
5.12 Dynamic range: 10-95dB, single step 5
5.13 Noise reduction: 0-60
5.14 Volume: 0-100

6.Real time 3D Imaging Mode

6.1 Fast angle: support 0°, 90°, 180°, 270° rotation of the 3D window image
6.2 Display layout: support "double frame", "four frame", "single frame" image display
6.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax five reconstruction modes
6.4 Pseudo-color display: support 0-7 level adjustment
6.5 Image magnification: support 5 levels
6.6 Contrast: 0%-100%
6.7 Threshold: 0%-100%
6.8 Smooth: 3 levels adjustable
6.9 Pseudo-color: 7 levels adjustable
6.10 X-axis, Y-axis, and Z-axis rotation support adjustable
6.11 Brightness: 0%-100%

7.4D Imaging Mode

7.1 Fast angle: support 0°, 90°, 180°, 270° rotation of the 3D window image
7.2 Display layout: support "double frame", "four frame", "single frame" image display
7.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax five reconstruction modes
7.4 Pseudo-color display: 0-7 levels adjustable
7.5 Image magnification: 5 levels
7.6 Contrast: 0%-100%
7.7 Threshold: 0%-100%
7.8 Smooth: 3 levels adjustable
7.9 Pseudo-color:7 levels adjustable
7.10 X-axis, Y-axis, and Z-axis rotation adjustable
7.11 Line density: 2 levels adjustable

8.Measurement and analysis functions

8.1 General measurement of distance, area, angle, time, slope, heart rate, speed, acceleration, neck transparent layer, spectrum
trace, resistance index/pulsation index, etc.
8.2 Obstetric measurement: weight measurement formula: 13 kinds for option
8.3 The color and type of the measuring line can be adjusted(including the activation color and the completion color)
8.4 The display position and font size of the measurement results can be adjusted
8.5 Measurement packages: abdomen, obstetrics, urology, etc.

9.Picture and text management system: Picture saving format: BMP/DICOM/JPEG as default

9.1 Built-in 256GB SSD to start fast and stable
9.2 Cine loop: 600 frames
9.3 Built-in file information management system: with record number, name, inspection number, inspection date, etc., and can
search and manage by number, inspection number, name, etc.
9.4 Report types: 17 kinds
9.5 One-key quick report graphic management

10.Interfaces

4*USB ports, 1*Video, 1*S-Video, 1*DVI, 1*HDMI, 1*RJ-45
