Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu China
-
Model Number:
-
HGL
-
Depth:
-
400-2000mm
-
Weight Capacity:
-
100-500kgs/layer
-
Width:
-
1200-2700mm
-
Height:
-
3500-9000mm
-
Color:
-
Blue/Orange/Yellow/Grey etc
-
Finish:
-
Powder Coated
-
Structure:
-
Bolted
Quick Details
-
Type:
-
Multi-Level
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu China
-
Model Number:
-
HGL
-
Depth:
-
400-2000mm
-
Weight Capacity:
-
100-500kgs/layer
-
Width:
-
1200-2700mm
-
Height:
-
3500-9000mm
-
Color:
-
Blue/Orange/Yellow/Grey etc
-
Finish:
-
Powder Coated
-
Structure:
-
Bolted

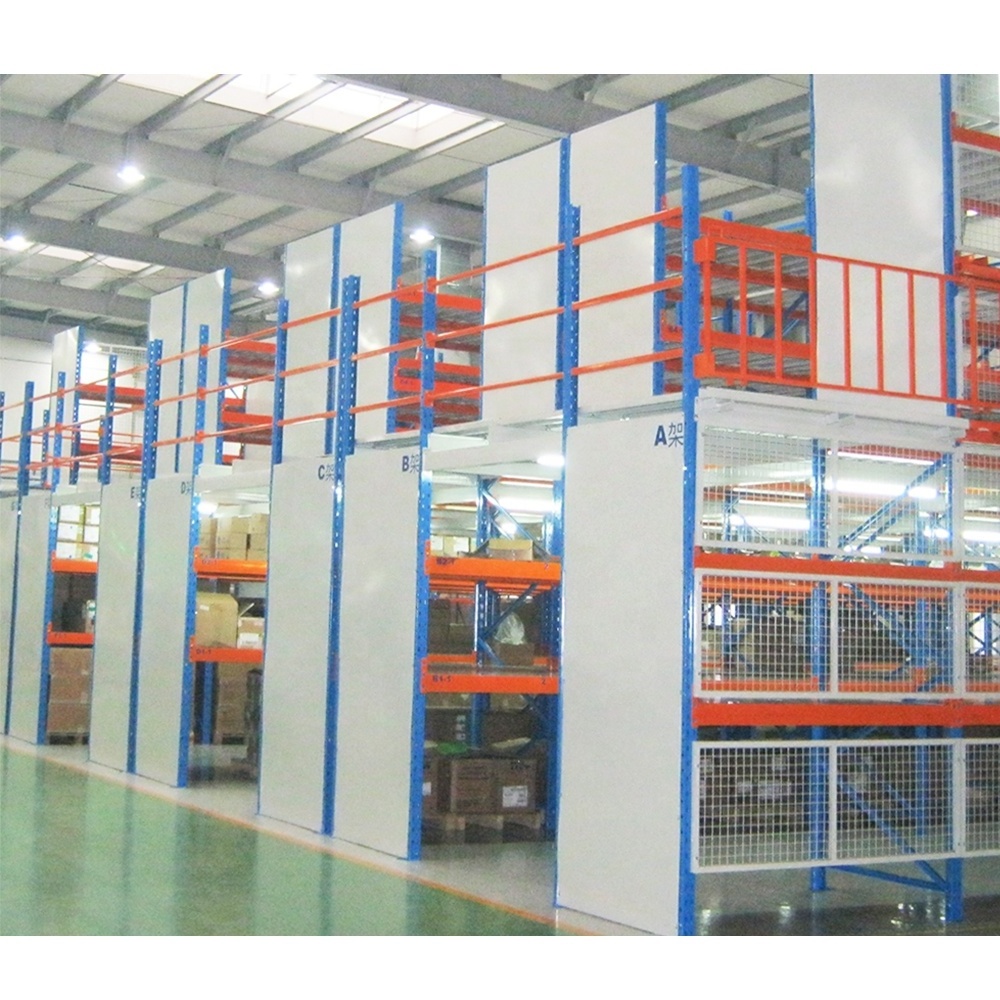

1. Rack supported mezzanine, or multi tier rack, is usually for storage of goods picked up manually.
2. Compared with steel shelving , rack supported mezzanine is higher on height, and could make more use of warehouse space.
3. Size and load are customized based on clients’ storage needs.
4. Load per shelf level is usually within 500kgs. Mostly, floor load per square meter is from 300kgs to 500kgs.
5. There are doors for loading and unloading goods.
6. When the height is out of reach, it could be used with ladder .
7. The general ways of transportation from one floor to another are: staircase, lift, hoist machine, conveyor belt, slideway, and forklift truck, etc.
8. It’s used in machinery manufacturing industry, logistics center, distribution center, food industry, chemical industry, electronic industry, furniture industry, warehouse supermarket, etc.
Product Information
| Rack Type | rack supported mezzanine | ||
| Model | HGL-A | single or multi tier (layer) rack supported mezzanine | |
| HGL-B | single or multi tier (layer) rack supported mezzanine topped with floor | ||
| Access Style | flexiable | ||
| Structure | knock down or assembled,welded structure available | ||
| Working Asile | around 1000mm,depends on customer's storage needs | ||
| Load Capacity & Dimension | Load capacity | light duty | ≤150kgs/level |
| medium duty | 150~500kgs/level | ||
| heavy duty | ≥500kgs/level | ||
| floor load | 300kgs~800kgs/sqm | ||
| length | 900mm~3000mm | ||
| depth/width | 250mm~2000mm | ||
| height | 3500mm~8000mm | ||
| tier | ≥1 | ||
| Components | core components | frame(upright,also called column or post,bracing,base plate,fasteners),beam,shelf,stairase,handrail | |
| optional components | wire mesh decking,back/side board,back/side mesh,top tie, divider | ||
| Core Components Specification | upright section | face | 55mm,80mm,90mm,100mm,120mm |
| height | 47mm,55mm,57mm,60mm,67mm,95mm,135mm | ||
| thickness | 1.5mm,1.8mm,2.0mm | ||
| adjust step | 50mm,75mm | ||
| beam section | height | 50mm,60mm,80mm,110mm | |
| width | 30mm,40mm,50mm | ||
| thickness | 1.2mm,1.5mm,1.8mm,2.0mm | ||
| Material | Q215,Q235(ss400),Q355(S355B,S355JR) | ||
| Finish | Epoxy resin electrostatic spraying(powder coating) | ||
| Coating thickness | no less than 40um for average thickness | ||
| Color |
ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers |
||
Galvanized floor for saving cost
Sliding door for loading and unloading, flip door, pivoting door are available based on needs. Side plate for protecting cargo from falling.
Different transportion solution
Different floor panel to suit different needs
To suit different clients needs,HBrack use different storage method.Following are rules followed.
For container order : stretch film+carton board+packing belt+plywood stick+plywood pallet leg
For less than container order :plywood box or other that can keep the product safe during transportation
Other : based on clients' needs, such as vacum packing etc.
For detailed quote and drawing,please provide following information:
1. Rack size and mezzanine size
2. Max. rack layer load and floor load
3. Staircase quantity and position
4. Mezzanine layer needed
5. Other matters need us take care of
