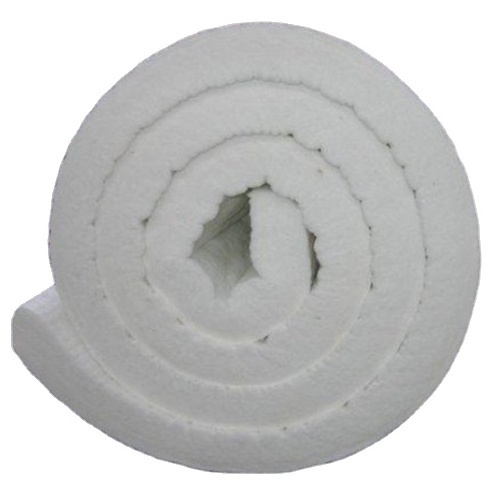

aluminosilicate ceramic fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns
aluminosilicate ceramic fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns
aluminosilicate ceramic fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns
aluminosilicate ceramic fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns
aluminosilicate ceramic fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns
aluminosilicate ceramic fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns
aluminosilicate ceramic fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns
aluminosilicate ceramic fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns

aluminosilicate ceramic fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns

FOB Reference Price: Get Latest Price
≥100 Rolls
US $8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Ultimate Strength (≥ MPa):
0.5Mpa (25mm thickness)
Density (kg/m³ ):
128
Length:
customerized
Working Temperature:
1260°C
Fiber Diameter:
2-3, 3-5μm
Shrinkage (1800 ℉, 3h):
-3%
Thermal Conductivity:
0.055-0.180(W.k.m.)
Model Number:
1260
Brand Name:
Hongtai
Place of Origin:
Henan, China
Product name:
Ceramic Fiber Blanket
Name:
Pure White Ceramic Wool Blanket
Raw material:
Spuned Ceramic Fiber Bulk
Application of ceramic fiber blanket:
Refractory Furnace Lining
Color:
Spotlessly White
Certificate:
ISO9001:2000
Package:
Carton or bags
Type:
1100C/1260C/1420C/1600C
Feature 1:
Low Thermal Conductivity
Feature 2:
Thermal Shock Resistance

Quick Details

Thickness:
10-50mm
Width:
610/1220
Chemical Composition:
Al2O3, SiO2
Ultimate Strength (≥ MPa):
0.5Mpa (25mm thickness)
Density (kg/m³ ):
128
Length:
customerized
Working Temperature:
1260°C
Fiber Diameter:
2-3, 3-5μm
Shrinkage (1800 ℉, 3h):
-3%
Thermal Conductivity:
0.055-0.180(W.k.m.)
Model Number:
1260
Brand Name:
Hongtai
Place of Origin:
Henan, China
Product name:
Ceramic Fiber Blanket
Name:
Pure White Ceramic Wool Blanket
Raw material:
Spuned Ceramic Fiber Bulk
Application of ceramic fiber blanket:
Refractory Furnace Lining
Color:
Spotlessly White
Certificate:
ISO9001:2000
Package:
Carton or bags
Type:
1100C/1260C/1420C/1600C
Feature 1:
Low Thermal Conductivity
Feature 2:
Thermal Shock Resistance
Product Description

aluminosilicate fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns


Aluminosilicate Ceramic fiber blanket, also known as aluminum silicate fiber blanket, is called ceramic fiber blanket because one of its main components is alumina, which is the main component of porcelain.

The ceramic fiber blanket series products are made of high-quality and high-purity ceramic fiber cotton, melted in a resistance furnace, continuously spun into fiber, cotton collection, double-sided needle punching, high-temperature shaping, transverse and longitudinal cutting, and rolling to make lightweight heat insulation Refractory materials. The advanced production technology makes the fiber layers evenly interwoven, with low slag ball content, good delamination resistance and tensile strength, flexibility, and excellent wind erosion resistance. Ensure that the fiber blanket can maintain good performance and stability under high and low temperature conditions. It is widely used in industrial kiln wall lining, backing insulation, high temperature pipe insulation, electrical component heat insulation and fire protection, ceramic fiber modules, folding block processing materials, etc.

Ceramic fiber blanket Features :
1. Low thermal conductivity, low heat capacity;
2. Excellent chemical stability, (except for hydrofluoric acid, strong breakage);
3. Excellent thermal stability and thermal shock resistance;
4. Excellent tensile strength;
5. Excellent heat insulation, fire resistance and sound absorption.

Ceramic fiber blanket Applications :
1. Aerospace, non-ferrous metal smelting, petrochemical industry kilns, boilers, glass kiln wall lining heat insulation, furnace door and roof heat insulation;
2. Furnace back lining heat insulation;
3. Wall linings of electric boilers, gas turbines and nuclear power thermal insulation chemical industry high temperature reaction equipment and heating equipment;
4. Thermal insulation of high temperature pipes, flue lining;
5. Electrical components are insulated and fireproof, high temperature insulation;
6. High-temperature gaskets, modules, folding block materials;
7. Fire and heat insulation inside ships, fire and heat insulation of high-rise buildings;
8. Heat insulation and noise reduction parts of vehicle engine compartment;
9. High temperature filter material.

Specification

aluminosilicate fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns

Ceramic fiber blanket Data sheet

Item Common Standard High purity High alumina Zirconia
Type 1100 1260 1260 1360 1430
Working temperature℃ 950 1050 1150 1260 1350
Buck Density kg/m3 96 96 96 128 128
128 128 128 160 160
Thermal conductivity (w/n.k) -4(1000℃) -3(1000℃) -3(1100℃) -3(1250℃) -3(1250℃)
Permanent thread shrinkage % 0.09(400℃) 0.09(400℃) 0.09(400℃) 0.132(600℃) 0.132(600℃)
0.176(800℃) 0.176(800℃) 0.176(800℃) 0.22(1000℃) 0.22(1000℃)
Tensile strength MPa 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12
Componets% AL2O3 42-44 45-46 47-49 52-55 45-46
AL2O3+SIO2 96 97 99 99 ---
AL2O3+SIO2+ZrO2 --- --- --- --- 99
ZrO2 --- --- --- --- 10
Fe2O3 <1.2 <1.0 0.2 0.2 0.2
NaO+K2O ≤0.5 ≤0.5 0.2 0.2 0.2
Size mm Common specifications are 7200X610X10-50; other specifications are made according to user requirements.
Packaging & Shipping

aluminosilicate fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns

Packaging for ceramic fiber blanket

1.Pallet+Plastic bag+Carton box or plastic bag+woven bag

(1) Inner side is plastic bag, outside is woven bag package.

(2) Inner side with plastic bag, outside with standard export carton .

(3) Pallet is ok if needed .

2.Can make the package according to customer's requirements.

Shipping for ceramic fiber blanket

1.FEDEX/DHL/UPS/TNT for samples.

2.By Sea for batch goods.

3.Customers specifying freight forwarders or negotiable shipping methods!

4.Delivery Time for ceramic fiber blanket

(1)Samples:3 days for common shape samples;15 days for special shape samples.

(2)Batch goods:Within 7-10days for in stock blankets from ordering shipping space to deliver goods and within20-30 days for NO in stock blankets.

Payment Terms

(1)T/T, Western Union,LC;

(2)Usually 30% deposits,70% balance to be paid before delivery or against copy of BL or negotiations

Others

MOQ: Usually 1 container, MOQ 1Tons, Customers can order certain PCS for special blankets.

Customers

Hongtai Kiln Refractory has professional sales and after-sale service team who provide customers all-around service about product selection, transportation, installation and operation technology training etc. Now we have established cooperation relationship with many science and research units and our aluminosilicate products have been sold to Vietnam, Thailand, Malaysia, South Korea, Pakistan, Kazakhstan, India, Japan, Indonesia, Germany, Italy, Mongolia, Russia, Argentina, colombia, Eygpt and etc.


We has over 20 years experience on producing aluminosilicate fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns.

Payment Guarantee: If couldn't trust us at first order, could use trade Assurance .

Why choose us

aluminosilicate fiber blanket for Aerospace, non-ferrous metal smelting, petrochemical industry kilns

We provide you

1. Timely response: Timely response to your inquiry within 24 hours and provide solution.

2. Competitive Price: Make the products competitive in your market.

3. Free sample: Free sample are offered, trial order are accepted for quality evaluation.

4. Strict quality control: We set Quality Management System, from the raw material to finished products, produce high quality products according to chemical & physical specifications strictly to satisfy customers’ needs.

5. Fast delivery time: Within 3-30 days according to your quantity after receiving your advance payment.

6. Professional services: Provide pictures from order to delivery. Inspect report by our country’s designated authority and oversea services if necessary.

We are here prepare alumina silicate ceramic fiber blanket , plate, module, paper, braid and rope for you!
