Quick Details
-
Place of Origin:
-
Other Country
-
Brand Name:
-
RELA
-
Voltage:
-
220V/380V/415V/600V, 3P, 50/60Hz
-
Dimension(L*W*H):
-
Depends
-
Power (kW):
-
3 kW
-
Product name:
-
drum mixer
-
Keyword:
-
spice mixer
-
MOQ:
-
1 Set
-
Usage:
-
Industry
-
Packing:
-
Wooden Case
-
Price:
-
Cost
-
Machine Name:
-
powder mixer
-
Advantage:
-
Easy Control
-
Function:
-
Mixer Blender
Quick Details
-
Barrel Volume (L):
-
800
-
Max. Loading Volume (L):
-
480 L
-
Weight (KG):
-
400 KG
-
Place of Origin:
-
Other Country
-
Brand Name:
-
RELA
-
Voltage:
-
220V/380V/415V/600V, 3P, 50/60Hz
-
Dimension(L*W*H):
-
Depends
-
Power (kW):
-
3 kW
-
Product name:
-
drum mixer
-
Keyword:
-
spice mixer
-
MOQ:
-
1 Set
-
Usage:
-
Industry
-
Packing:
-
Wooden Case
-
Price:
-
Cost
-
Machine Name:
-
powder mixer
-
Advantage:
-
Easy Control
-
Function:
-
Mixer Blender

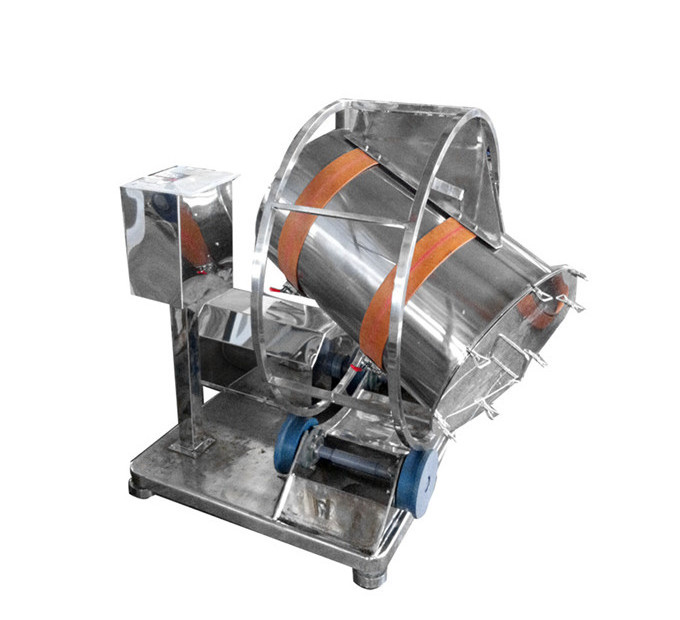

Stainless steel powder rotating drum mixing machine Spice powder drum mixer
Application
RELA THJ Drum Mixers are used for the drying blending of free flowing solid (powder, granule, etc.) in Pharmaceutical Industry, Foodstuff Industry, Spice Industry, Chemical Industry, etc
Working Principle
The materials being blended are directly loaded into the drum, which has a cover. The loading factor is 40%-60%. The materials being blended in these units can vary in bulk density and in percentage of the total mixture. After loading, the drum is fastened and fixed on the hoop by belt. The drum gets rotation along with the hoop, which is placed on four wheels. The wheels are under the driven of motor-reducer. Materials being blended are constantly as the drum rotates. Normal cycle times are typically in the range of 15 minutes, however can be less depending on the difficulty of blending.
PS: normally it is empty in the drum without tools. However, different kinds of Baffles in the drum can be customized to get better mixing result.
Technical Parameters
|
Model |
Gross Volume |
Working Volume
|
Rotary Speed |
Power |
Weight |
Dimension |
|
/ |
L |
L |
rpm |
KW |
KG |
mm ( L*W*H) |
|
THJ-10 |
10 |
4-6 |
34 |
0.37 |
150 |
650*650*700 |
|
THJ-50 |
50 |
20-30 |
34 |
0.75 |
180 |
850*780*980 |
|
THJ-100 |
100 |
40-60 |
32 |
1.1 |
200 |
1060*900*1180 |
|
THJ-200 |
200 |
80-120 |
28 |
1.1 |
280 |
1300*1280*1380 |
|
THJ-400 |
400 |
160-240 |
24 |
2.2 |
320 |
1620*1480*1600 |
|
THJ-800 |
800 |
320-480 |
22 |
3.0 |
400 |
1980*1850*1940 |
1.Suitable for bulk densities up to 0.6x103kg/m3
2.MOC SS304
3.Mirror polished for both interior and exterior
4.Fully integrated motors and controls
