The normal package is wooden box. If export to european and American countries, or upon customers' requirement, the wooden box
will be fumigated.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/1P/50Hz, 220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WITY
-
Dimension(L*W*H):
-
1150*1100*1400mm
-
Weight:
-
380 KG
-
Model:
-
QLFM-900Y
-
Max laminating width:
-
650mm
-
Laminating speed:
-
0-20m/min
-
Laminating temperature:
-
60~130℃
-
Motor power:
-
0.55 KW
-
Power of electric heater:
-
2.4 KW
-
Cylinder diameter:
-
140mm
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Plastic, Paper
-
Driven Type:
-
Hydraulic
-
Voltage:
-
220V/1P/50Hz, 220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WITY
-
Dimension(L*W*H):
-
1150*1100*1400mm
-
Weight:
-
380 KG
-
Model:
-
QLFM-900Y
-
Max laminating width:
-
650mm
-
Laminating speed:
-
0-20m/min
-
Laminating temperature:
-
60~130℃
-
Motor power:
-
0.55 KW
-
Power of electric heater:
-
2.4 KW
-
Cylinder diameter:
-
140mm
-
Marketing Type:
-
Hot Product 2019
Product Description
This machine covers a small area, which is operated conveniently and runs fast. The machine adopts pre-coated film as the material. It is widely used for lamination on the surface of window packing paper boxes, various books, maps, pictures,
certificates, holographic cellophane etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three dimensional sense.
certificates, holographic cellophane etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three dimensional sense.
|
Model
|
QLFM-720Y
|
QLFM-900Y
|
QLFM-1000Y
|
QLFM-1200Y
|
|
Max laminating width
|
650mm
|
850mm
|
980mm
|
1150mm
|
|
Laminating speed
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
|
Laminating temperature
|
60~130℃
|
60~130℃
|
60~130℃
|
60~130℃
|
|
Motor power
|
0.55 KW
|
0.75KW
|
0.75KW
|
1.1KW
|
|
Power of electric heater
|
2.4 KW
|
3.6KW
|
4.8KW
|
5.4KW
|
|
Voltage
|
220V
|
220V
|
220V
|
220V
|
|
Cylinder diameter
|
190∮
|
190∮
|
190∮
|
190∮
|
|
Measurement(L×W×H)
|
1.15×1.1×1.4m
|
1.35×1.1×1.4m
|
1.55×1.25×1.45m
|
1.75×1.25×1.45m
|
|
Weight
|
380KGS
|
500KGS
|
580KGS
|
650KGS
|
|
Pressure
|
0~4 Mpa
|
0~5 Mpa
|
0~10 Mpa
|
0~10 Mpa
|
Machine Details

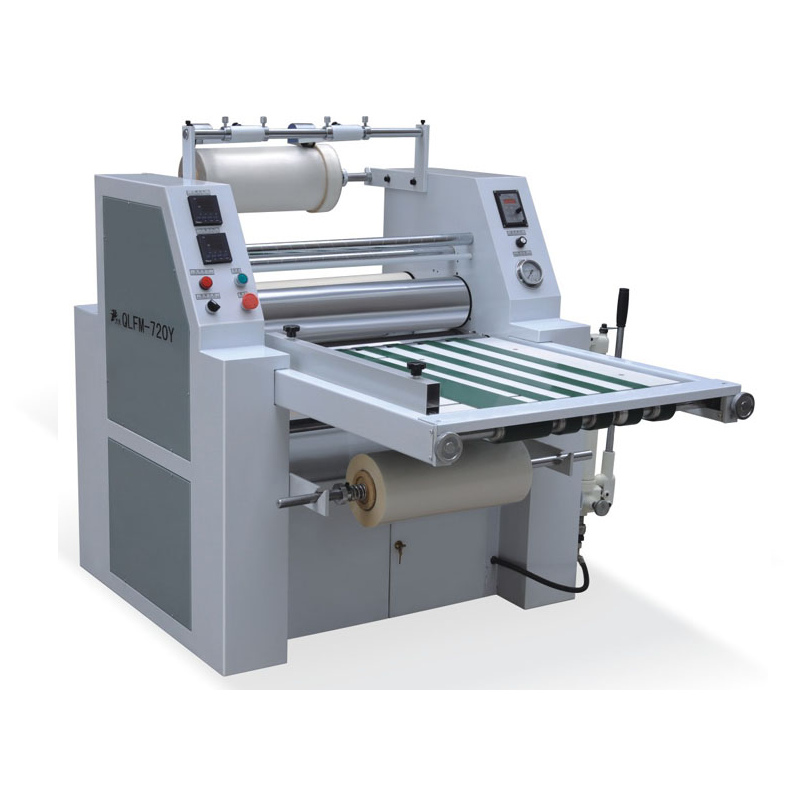

Overall look
Overall look
Heating roller 140mm diameter
Temperature controller
Film slitting
