Quick Details
-
Function:
-
Collect data tansmit in computer
-
GPRS Module:
-
32 bits MCU
-
Analog input:
-
10
-
Digital input:
-
6
-
Temp. input:
-
2
-
Relay output:
-
4(120VAC/3A, 24VDC /3A)
-
Port:
-
2 RS232+1 RS485
-
Products Status:
-
Stock
-
Type:
-
LOGIC ICS
-
D/C:
-
S275
-
Package:
-
Standard
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
King Pigeon
-
Model Number:
-
S275
-
Function:
-
Collect data tansmit in computer
-
GPRS Module:
-
32 bits MCU
-
Analog input:
-
10
-
Digital input:
-
6
-
Temp. input:
-
2
-
Relay output:
-
4(120VAC/3A, 24VDC /3A)
-
Port:
-
2 RS232+1 RS485
-
Products Status:
-
Stock
-
Type:
-
LOGIC ICS
-
D/C:
-
S275
-
Package:
-
Standard

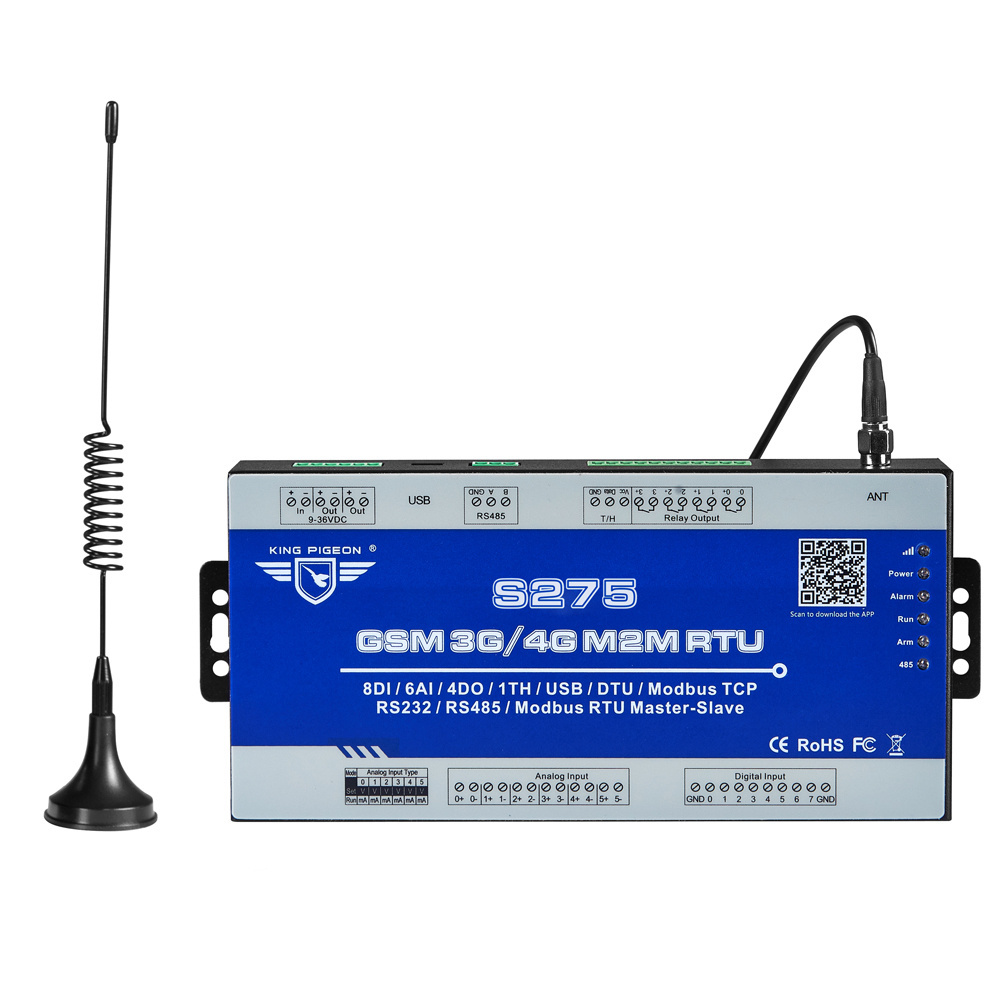

GSM GPRS RTU Telemetry Logging Engine S275 Series
King Pigeon Hi-Tech.Co.,Ltd is a professional GSM Alarm, wifi camera alarm, GSM SMS Controller Alarm, GSM GPRS 3G M2M, GSM GPRS 3G RTU Automation, GSM GPRS 3G Telemetry Data Logger, GSM 3G Senior Telecare, GSM 3G Senior Telehealth OEM ODM Manufacturer since 2005.
>>>Model List Table:
|
Model |
Analog input |
Digital input |
Temp. input |
Relay output |
USB |
RS232 |
RS485 |
SCADA |
Battery |
|
S200 |
4 |
2 |
2 |
2 |
1 |
/ |
1 |
Yes |
Yes |
|
S220 |
6 |
6 |
2 |
4 |
1 |
/ |
1 |
Yes |
Yes |
|
S240 |
10 |
6 |
2 |
4 |
1 |
1 |
1 |
Yes |
Yes |
>>>S200,S220,S240 GPRS Data Logger Features:
> Direct connection to the GSM GPRS Network;
> Transparent Serial Data Tunneling using low cost SMS/GPRS network;
> Remote Configuration by SMS Messages or GPRS;
> Upload data via GPRS or SMS on Schedule or event occurs;
> Supports Dynamic Domain name or fixed IP address;
> Supports SMS, CSD, GPRS, UDP and TCP/IP protocols;
> Supports Modbus RTU protocols;
> 2 RS232 Serial Ports, and 1 RS485 Serial Ports;
> UP TO 6 OPT Coupler (5-24V) Digital Inputs can be programmed to NC/NO/Edge/Level type by switch, OPT and NON OPT can be programmed by switch, when alarm occurs can send Alarm Messages by SMS or GPRS or auto dial the preset phone numbers;
> UP TO 6 digital inputs can be used as Pulse Counters;
> UP TO 4 OPT Digital Outputs can be programmed as dial to switch on/off with free communication fee, alarm-linkage and Schedule to action, also can be send SMS to switch on/off;
> UP TO 10 Analogue Inputs. (12 bit resolution, 0-5V or 4-20mA can be programmer by switches);
> UP TO 4 Digital Relay Outputs : 120VAC/3A, 24VDC /3A, Can be controlled by Event, scheme, Incoming call, SMS Commands, Timer, Interlock; 2 outputs can setup as NC or NO type;
> User friendly PC Programming Interface, it can remotely program the terminals as well as to upload the data from the terminals by SMS or GPRS, all of the Current Value or status of the terminal can be display directly, and also will display the SMS Command details while you programming it;
>>>>GPRS Data Logger S200,S220,S240 is a Low cost Remote GPRS Monitoring Suitable for:
>Environmental
>Pumping station
>Gas data acquisition
>Oilfield
>Power Station
>Rain gauge
>Urban water supply pipe network
>Reservoir
>Meter reading system
>Sewage treatment
>Transformer
>Water level
>>>>>Specifications of GPRS RTU S240:
|
Parameter Item |
Reference Scope |
|
DC Power supply |
Standard adapter: DC 12V/1.5A Reference scope 9-24V DC |
|
Power consumption |
Standby:12V/70mA; Working Max.: 12V/300mA |
|
GPRS Module |
Siemens MC55i |
|
Frequency bands |
Quad-band: EGSM 850,EGSM900, GSM 1800, GSM 1900, Compliant to GSM Phase 2/2+ |
|
|
|
|
|
|
|
GPRS Data Transmission |
GPRS data downlink transfer: max. 85.6 kbps; GPRS data uplink transfer: max. 42.8 kbps. |
|
TCP/IP stack |
TCP,UDP |
|
SIM interface |
Supporting 3V SIM Card |
|
External antenna |
Connected via 50 Ohm antenna connector or antenna pad, SMA Antenna interface |
|
Serial Interfaces |
1 RS-232 Port,1 RS485 Port, 1 USB Port; |
|
|
|
|
Digital Inputs |
6 OPT Coupler (Active Contact 3-24V);NC/NO/Edge/Level type; Active Contact and Passive Contact By Switch; Can be used as Pulse Counters; |
|
Analog Inputs |
10 Analog Inputs. 12 bit resolution, 0-5V or 0-20mA; |
|
|
|
|
Digital Relay Outputs |
Incoming call, SMS Commands, Timer, Interlock; 2 outputs can setup as NC or NO type; |
|
|
|
|
Internal Backup Battery |
7.2v 1200mAH |
|
Work Temperature range |
-10-+70 °C |
|
Humidity range |
Relative humidity 95% (condensation free) |
|
Exterior dimension |
168mm*113mm*32.3mm |
|
Net Weight |
1000 g |
>>>>Standard Package list:
>>GSM/GPRS RTU x1
>>Power supply adapter x1 (12V 1.5A 1)
>>USB cable for communication x1
>>CD disk (PC Configurator and User Manual) x1
>>GSM Antenna x1
>>Package Size:W300*D205*H75MM
>>Gross Weight:1.5KG, 5Pcs per carton
