Quick Details
-
Brand Name:
-
Weshine
-
Model Number:
-
VS-JB900A
-
AC Current Output:
-
3 Channels ,40A/450VA Three-Phase Parallel 120A
-
AC Voltage Output:
-
4 Channels,120V/80V Line Voltage 240V Per Channel
-
DC Current Output:
-
3 Channels, Each Channel ±10A/200VA
-
DC Voltage Output:
-
3 Channels, Each Channel ±160V/70VA
-
Phase:
-
0~360°,Accuracy:<0.5°
-
Output frequency:
-
0~1000Hz
-
Frequency accuracy:
-
0.01Hz
-
Superimposed harmonics:
-
0~20 Times
-
Entry:
-
8 Channels
-
Exports:
-
4 Pairs
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Weshine
-
Model Number:
-
VS-JB900A
-
AC Current Output:
-
3 Channels ,40A/450VA Three-Phase Parallel 120A
-
AC Voltage Output:
-
4 Channels,120V/80V Line Voltage 240V Per Channel
-
DC Current Output:
-
3 Channels, Each Channel ±10A/200VA
-
DC Voltage Output:
-
3 Channels, Each Channel ±160V/70VA
-
Phase:
-
0~360°,Accuracy:<0.5°
-
Output frequency:
-
0~1000Hz
-
Frequency accuracy:
-
0.01Hz
-
Superimposed harmonics:
-
0~20 Times
-
Entry:
-
8 Channels
-
Exports:
-
4 Pairs
Discount Benefits
Products Description
Given the diverse functional requirements of the grid’s protection system, testing capabilities require a new level of sophisticated test hardware and software with which to analyse the entire protection system’s (or individual protection component’s) operation in "real life" situations. It is further necessary that these expanding testing capabilities be met with a similar improvement in the simplification of a test instrument’s user interface and software control. Rest assured that every facet of relay testing, no matter the complexity,
can be handled simply with the comprehensive line of
Relay Test Set
(VS-JB Series) from
W
eshine
. Moreover, whether you are testing legacy electromechanical relays or modern IEC 61850 networked devices , our rugged products output the high power you need while still being portable for real world testing.
W
eshine
developed the first software-driven protective relay test system in 2013, and we continue to provide models ranging from computer-controlled (with comprehensive yet simple, built-in, touch screen user interfaces) to manually operated test sets in portable and laboratory styles for every relay testing need. Relay test solutions may be expensive propositions when software is charged separately but with
W
eshine
solutions, the software required to test most relays is included with the test set so you don’t incur additional expenses.
Our rich legacy in manufacturing relay and primary injection test solutions is nurtured by the company’s extensive relay testing experience. This experience also fuels the success of our worldwide support system – always here to help you wherever you are!
|
PRODUCT INFORMATION
|
|
|
|
|||
|
Product Name
|

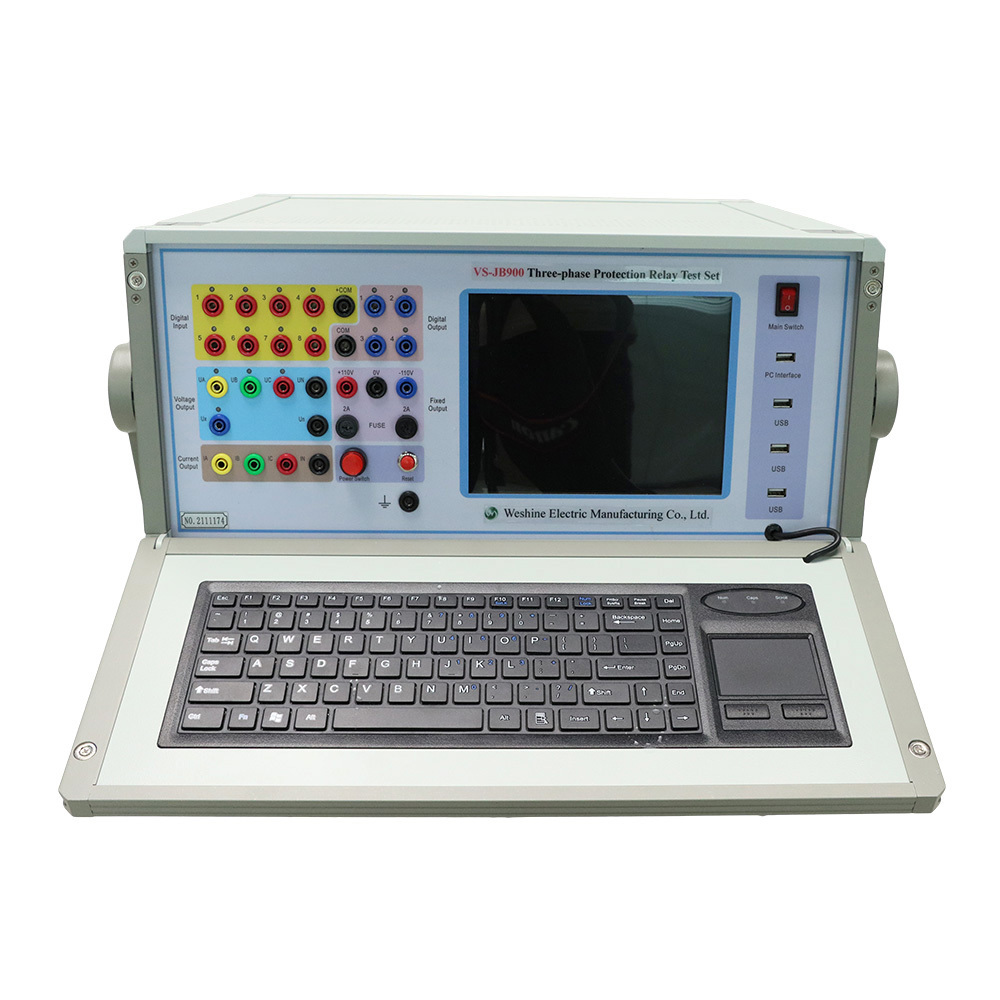

THREE-PHASE PROTECTION RELAY TEST SET
|
|
|
|||
|
Channels of Voltage
|
4
|
Channels of Current
|
3
|
|||
|
|
AC CURRENT SOURCE
|
|
|
|||
|
|
0 ~ 40 A/phase, accuracy 0.5%
|
|
|
|||
|
|
DC CURRENT SOURCE
|
|
|
|||
|
|
0 ~ ±30 A / phase, accuracy: 0.5%
|
|
|
|||
|
|
AC VOLTAGE SOURCE
|
|
|
|||
|
|
Phase voltage:0 ~ 125 V/phase; Line voltage: 0 ~ 250 V
|
|
|
|||
|
|
DC VOLTAGE SOURCE
|
|
|
|||
|
|
Phase voltage: 0 ～ ±150 V; Line voltage: 0 ～ ±300 V
|
|
|
|||
|
Power |
Maximum output power of each Phase: 420 VA
|
|
|
|||
|
Test Range
|
Maximum output power of 3 parallel current: 900 VA
|
|
|
|||
|
|
Maximum permitted work time of 3 parallel current: 10 s
|
|
|
|||
|
Input Terminals
|
8 pairs
|
Output Terminals
|
4 pairs
|
|||
|
Standards
|
DL/T624-1997...
|
Certificates
|
CE; EMC; LVD; ISO; IEC;
|
|||
|
Dimensions
|
455mm*530mm*220mm
|
Model Number
|
VS-JB900B
|
|||
