Quick Details
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-H31108
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE RoHS FCC
-
Product Name:
-
10-Port Network Switch
-
Back-bound Bandwidth:
-
3.2Gbps
-
Forwarding Rate:
-
1.488Mpps
-
Buffer Memory:
-
2M
-
MAC Address Table:
-
8K
-
Working Temperature:
-
-20℃~55℃
-
Storage Temperature:
-
-40℃~70℃
-
Standard Protocol:
-
IEEE 802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab, IEEE802.3z.
-
Dimension:
-
224.8*156.1*44.2mm(L*W*H)
-
Warranty:
-
1 Year
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
3.2Gbps
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-H31108
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE RoHS FCC
-
Product Name:
-
10-Port Network Switch
-
Back-bound Bandwidth:
-
3.2Gbps
-
Forwarding Rate:
-
1.488Mpps
-
Buffer Memory:
-
2M
-
MAC Address Table:
-
8K
-
Working Temperature:
-
-20℃~55℃
-
Storage Temperature:
-
-40℃~70℃
-
Standard Protocol:
-
IEEE 802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab, IEEE802.3z.
-
Dimension:
-
224.8*156.1*44.2mm(L*W*H)
-
Warranty:
-
1 Year
|

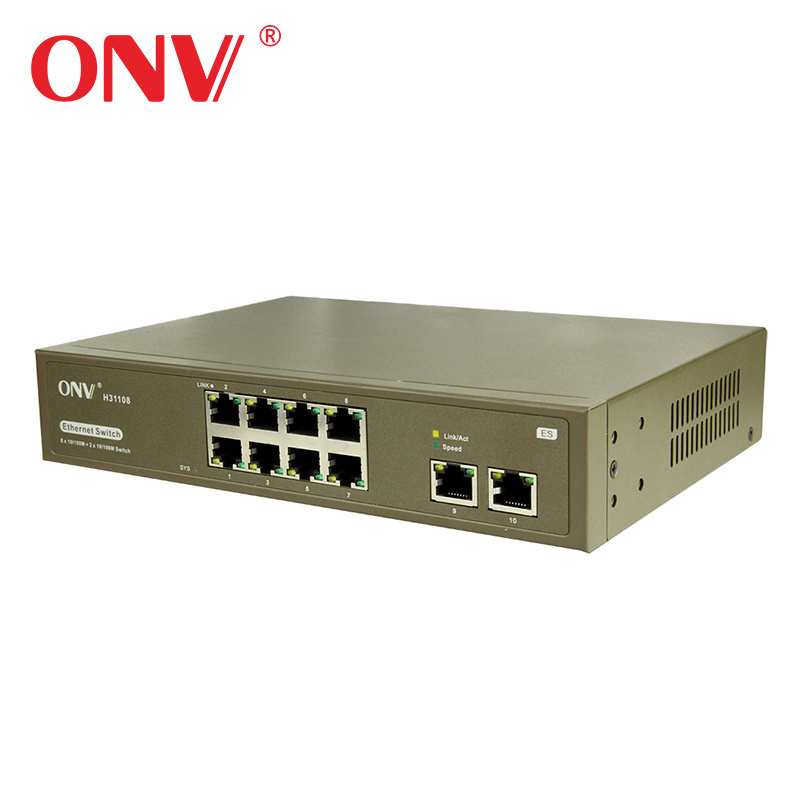

Product Name |
10-Port 10/100M Network Switch |
|
Model |
ONV-H31108 |
|
Interface |
10* 10/100Mbps auto-sensing RJ45 ports (Auto MDI/MDIX) |
|
Compatible System |
Windows 8 32/64 bit , Windows 7 32/64 bit , Windows xp 32 bit , Linux , MAC OS |
|
Network Media |
10Base-T: Cat.3/4/5 (≤100m) UTP/STP |
|
100BASE-TX: Cat.5/Above (≤100m) UTP/STP |
|
|
Forwarding Mode |
Store-and-Forward |
|
Forwarding Rate |
1.488Mpps |
|
Back-bound Bandwidth |
3.2Gbps |
|
Buffer Memory |
2M |
|
MAC Address Table |
8K |
|
Standard Protocol |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|
Access Control |
CDMA/CD |
|
LED Indicator |
1*power LED , 10*10/100Mbps Link/Act LEDs |
|
Power Consumption |
Standby State: 0.7W. Max power consumption < 6W |
|
Power Input |
AC:100 ~ 240V;50-60Hz 0.5A |
|
Dimension |
224.8*156.1*44.2mm ( L*W*H ) |
|
Working Environment |
Working Temperature:-20 ℃ ~55 ℃ |
|
Storage Temperature: -40℃~70℃ |
|
|
Working Humidity: 10%~90% Non-condensing |
|
|
Storage Humidity 5%~90% RH ( non-condensing ) |
|
|
Certification |
CE, FCC, RoHS |
|
Packing List |
1*Fast User Guide & 1*Warranty Card |
|
1*10-Port Network Switch |
|
|
1*AC Power Cable |
|
|
1*Mounting Kits |
|
|
Warranty |
1 Year |
