Quick Details
-
Power:
-
None
-
Min. Lifting Height:
-
Optional
-
Table Size:
-
Optional
-
Overall Dimensions:
-
Optional
-
Weight:
-
100 kg
-
Capacity:
-
150-100KG
Quick Details
-
Warranty:
-
One year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NU-LIFT
-
Power:
-
None
-
Min. Lifting Height:
-
Optional
-
Table Size:
-
Optional
-
Overall Dimensions:
-
Optional
-
Weight:
-
100 kg
-
Capacity:
-
150-100KG

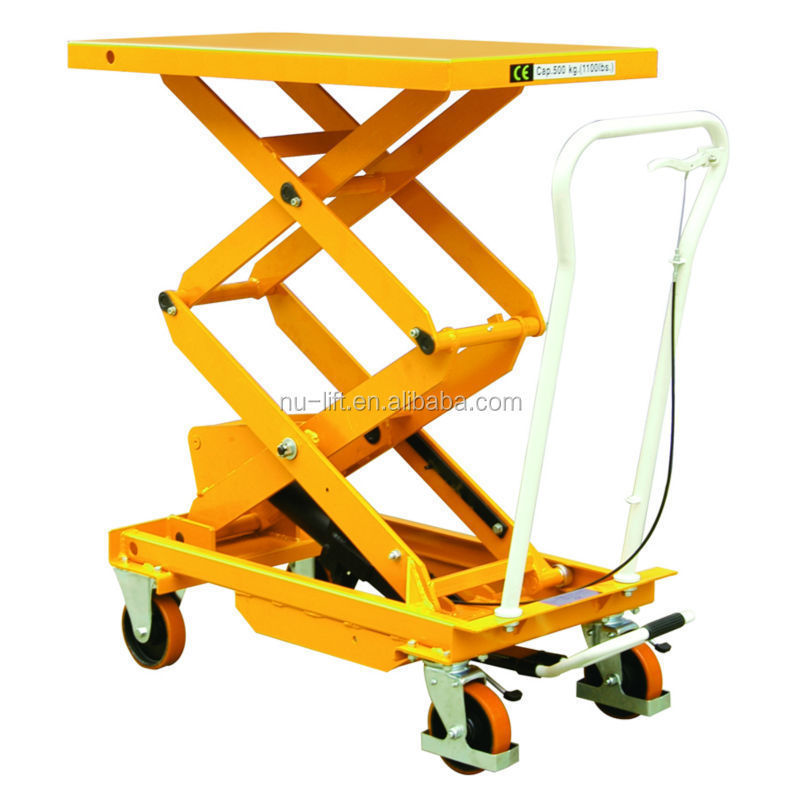

Product Description
•Heavy duty range.
•Capacity:150~1000Kg.
Lifting Height:755~1585mm.
•Single and double scissor available.
•Skirting available as option.
•New hydraulic system increases safety and protects your goods, stepless rate of lowering remains irrespective of the weight of the load.
•New design to meet norm EN1570.
| Model | BS15 | BS25 | BS50 | BS75 | BS100 | BS15D | BS35D | BS50D | BS80D | ||
| Capacity | kg | 150 | 250 | 500 | 750 | 1000 | 150 | 300 | 500 | 800 | |
| Table Size | L | mm | 700 | 830 | 1010 | 1010 | 1010 | 830 | 1010 | 1010 | 1010 |
| W | mm | 450 | 500 | 520 | 520 | 520 | 500 | 520 | 520 | 520 | |
| Table Height | Hmin | mm | 265 | 330 | 435 | 442 | 445 | 435 | 435 | 440 | 470 |
| Hmax | mm | 755 | 910 | 1100 | 1000 | 950 | 1430 | 1585 | 1575 | 1410 | |
| Handle height | h | mm | 1000 | 1100 | 1130 | 1130 | 1130 | 1100 | 1130 | 1130 | 1130 |
| wheel Dia | mm | 100 | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Overall Size | B | mm | 450 | 500 | 520 | 520 | 520 | 500 | 520 | 520 | 520 |
| C | mm | 950 | 1010 | 1185 | 1260 | 1260 | 1010 | 1260 | 1260 | 1260 | |
| Foot Pedal | 20 | 28 | 55 | 65 | 85 | 30 | 75 | 85 | 95 | ||
| Net Weight | kg | 41 | 78 | 118 | 120 | 137 | 90 | 150 | 168 | 165 |
