Quick Details
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Laser Max
-
Weight (KG):
-
240 KG
-
Core Components:
-
laser tube
-
Mode of Operation:
-
Co2
-
Configuration:
-
Co2
-
Product name:
-
Co2 Laser Marking Machine
-
Laser source:
-
Raycus Laser Source
-
Laser Power:
-
80w/100w/130w/150w/180w
-
Laser wavelength:
-
10.64um
-
Marking material:
-
Non-metal
-
Working area:
-
110*110 /150*150/175*175/ 200*200/300*300mm
-
Laser head:
-
Sino-Galvo RC2808
-
Minimum Character:
-
O.01mm
-
Software:
-
EZCAD Software
-
Cooling system:
-
Water Cooling
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst
-
Laser Type:
-
CO2
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Laser Max
-
Weight (KG):
-
240 KG
-
Core Components:
-
laser tube
-
Mode of Operation:
-
Co2
-
Configuration:
-
Co2
-
Product name:
-
Co2 Laser Marking Machine
-
Laser source:
-
Raycus Laser Source
-
Laser Power:
-
80w/100w/130w/150w/180w
-
Laser wavelength:
-
10.64um
-
Marking material:
-
Non-metal
-
Working area:
-
110*110 /150*150/175*175/ 200*200/300*300mm
-
Laser head:
-
Sino-Galvo RC2808
-
Minimum Character:
-
O.01mm
-
Software:
-
EZCAD Software
-
Cooling system:
-
Water Cooling

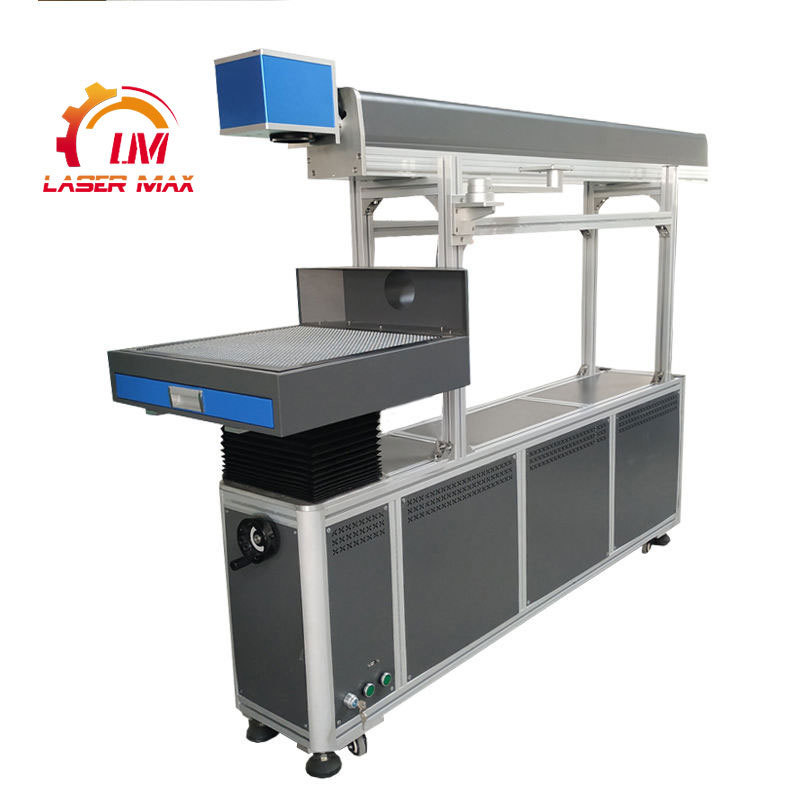

80W/100W/130W Co2 laser marking machine/ big working area cnc laser marking machine for nonmetal
Product Description
Application industry:
1. Medicines, personal care products, tobacco, food and beverage packaging, alcohol, dairy products, clothing accessories, leather, electronic components, chemical building materials and other industries.
2. can engrave non-metal and part of the metal. Widely used in food packaging, beverage packaging, pharmaceutical packaging, architectural ceramics, clothing accessories, leather, fabric cutting, craft gifts, rubber products, electronic components packaging, shell nameplates, etc.
3. It is applied to the marking of various non-metallic materials and products, such as laser marking of medicine, cosmetics, plexiglass, ceramics, plastics, wood, rubber and leather, paper products, electronics industry, various instruments and control panels.
Work area: 300*300mm, 600*600mm as optional
|
Product name
|
CO2 laser marking machine
|
|
Working size
|
110X110mm (150/200/300mm optional)
|
|
Laser Power
|
100W(80/130W optional)
|
|
Scan Head
|
Sino-Galvo RC2808
|
|
Spot diameter
|
Φ20
|
|
Laser Power Control
|
1-100% Software Controlling
|
|
Control Main board
|
BJ JCZ
|
|
Software
|
EZCAD
|
|
Max Speed
|
0-7000mm/s
|
|
Voltage
|
110V/220V, 50HZ/60HZ
|
|
Dust
|
550w exhaust fan
|
|
Bracket for computer display screen
|
Yes
|
|
Min character
|
0.3mm
|
|
Operate system
|
Windows XP/7/8/10
|
|
Format Support
|
PLT/DXF/AI/SDT/BMP/JPG/JPEG/GIF/TGA/PNG/TIF/TIFF
|
|
Laser wavelength
|
10600nm
|
|
Weight
|
240 kg
|
