Quick Details
-
Brand Name:
-
GH
-
Maximum Torque:
-
48
-
Operating Speed:
-
8000RPM
-
Product Name:
-
MK10-2-35-5.5-4-8000
-
Rated Torque:
-
35Nm
-
Rated Speed:
-
1500RPM
-
Rated Current:
-
13A
-
Constant Power Maximum Speed:
-
6000RPM
-
Max Speed:
-
8000RPM
-
Encoder(Optional):
-
1024PPR
-
Poles:
-
4P
-
Phase:
-
3 phase
-
Coolant:
-
Forced Air Coolant
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
93
-
Marketing Type:
-
Hot Product 2022
-
Brand Name:
-
GH
-
Maximum Torque:
-
48
-
Operating Speed:
-
8000RPM
-
Product Name:
-
MK10-2-35-5.5-4-8000
-
Rated Torque:
-
35Nm
-
Rated Speed:
-
1500RPM
-
Rated Current:
-
13A
-
Constant Power Maximum Speed:
-
6000RPM
-
Max Speed:
-
8000RPM
-
Encoder(Optional):
-
1024PPR
-
Poles:
-
4P
-
Phase:
-
3 phase
-
Coolant:
-
Forced Air Coolant

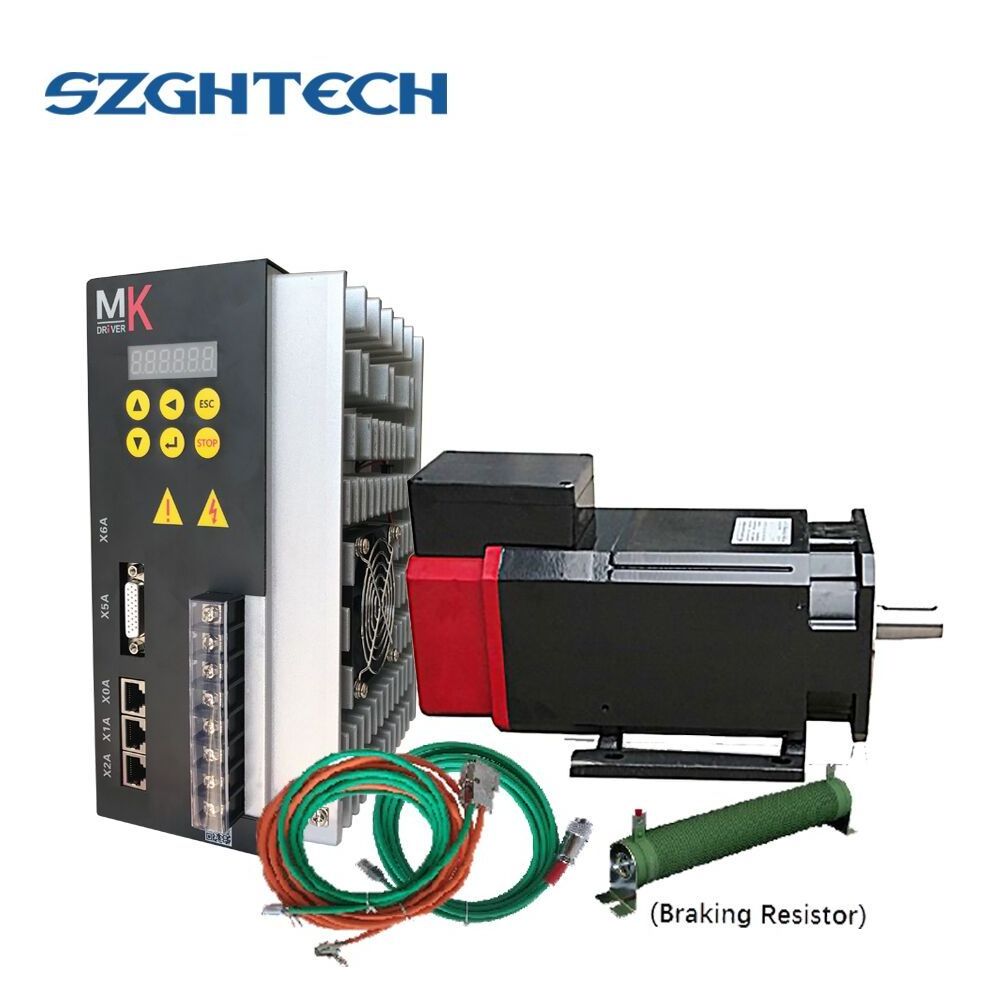

Factory High quality and low price 5.5KW machine tool spindle motor kit
| Specifications: | ||
| Rated Power(kw) | 5.5 | |
| Rated Torque(N.m) | 35 | |
| Rated Current(A) | 13 | |
| overload within 30minutes | Power(kw) | 7.5 |
| Torque(N.m) | 48 | |
| Current(A) | 16.2 | |
| Rated Frequency(Hz) | 50 | |
| Rated Speed(RPM) | 1500 | |
| Max Speed with rated torque | 6000 | |
| Max Speed(RPM) | 8000 | |
| Rotor Inertia(kg.m^2) | 0.0195 | |
| Power of Blower(W) | 40 | |
| Weight(kg) | 57 | |
