Quick Details
-
Rated Voltage:
-
1KV
-
Tensile Strength:
-
>10.4MPA
-
Product name:
-

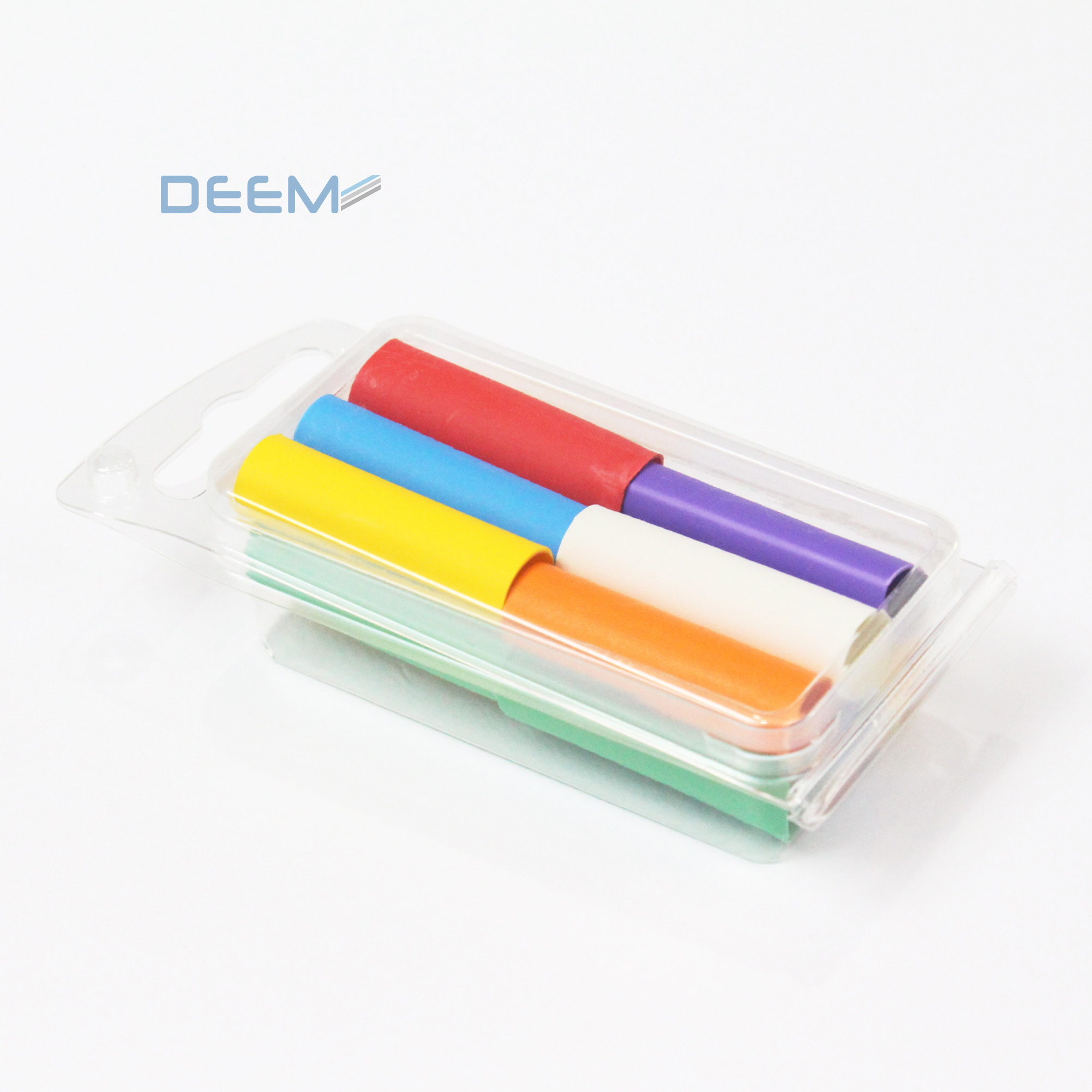

Heat shrink flexible dual wall tubing with adhesive
-
Standard color:
-
red, blue, yellow, green, deep red, orange, purple, and white
-
Operating temperature:
-
-45℃~125℃
-
Certification:
-
UL RoHS Reach Approval
-
Longitudinal shrinkage:
-
0 to -10%
-
Thickness:
-
9mm/3mm
-
Minimum shrink temperature:
-
80°C
-
Elongation at break:
-
>300%
-
Flammability:
-
Flame retardent
-
shrink ratio:
-
3:1
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DEEM
-
Model Number:
-
DM-D31
-
Rated Voltage:
-
1KV
-
Tensile Strength:
-
>10.4MPA
-
Product name:
-
Heat shrink flexible dual wall tubing with adhesive
-
Standard color:
-
red, blue, yellow, green, deep red, orange, purple, and white
-
Operating temperature:
-
-45℃~125℃
-
Certification:
-
UL RoHS Reach Approval
-
Longitudinal shrinkage:
-
0 to -10%
-
Thickness:
-
9mm/3mm
-
Minimum shrink temperature:
-
80°C
-
Elongation at break:
-
>300%
-
Flammability:
-
Flame retardent
-
shrink ratio:
-
3:1
Technical Data
| Property | Test Method | Typical Data |
| Tensile strength | ASTM D 2671 | >10.4 MPa |
| Tensile strength after aging(158°C/168 hrs.) | ASTM D 2671 | Remains 70% |
| Elongation at break | ASTM D 2671 | >300% (min) |
| Elongation at break after aging(158°C/168 hrs.) | ASTM D 2671 | 100% (min) |
| Longitudinal shrinkage | UL 224 | 0 to -10% |
| Heat shock 250°C/4 hrs | No cracking, | no dropping |
| Cold bend (-30°C/1 hr.) | ASTM D 2671 | No cracking |
| Voltage withstand (AC 2500V/60 seconds) | ASTM D 2671 | No breakdown |
| Volume resistance | ASTM D 876 | ≥10 14 Ω.cm |
| Flammability | SAE-AMS-DTL-23053/4 | Self-extinguish in 30 sec |
| Copper corrosion(158°C/168 hrs.) | UL 224 | Pass |
| Water absorption | ASTM D 570 | <0,5% |
Dimensions( Except for 9mm, other specifications require customization )
| Size | As Supplied (mm) | After Recovery (mm) | Standard length | |||
| mm. (D) |
Inside Diameter
Min. (D) |
Inside
Diameter Max. (d) |
Total Wall
Thickness Min. (t) |
Adhesive
Thickness |
m/piece | m/spool |
| DM-D31 Shrink Ratio 3:1 Adhesive-lined tubing | ||||||
| 3/1 | 3 | 1 | 1 | 0.5 | 1.22 | 200 |
| 4.8/1.5 | 4.8 | 1.5 | 1 | 0.5 | 1.22 | 100 |
| 6/2 | 6 | 2 | 1 | 0.5 | 1.22 | 100 |
| 9/3 | 9 | 3 | 1.4 | 0.6 | 1.22 | 50 |
| 12/4 | 12 | 4 | 1.6 | 0.7 | 1.22 | 25 |
| 19/6 | 19 | 6 | 2.15 | 0.8 | 1.22 | 25 |
| 24/8 | 24 | 8 | 2.4 | 1 | 1.22 | 25 |
| 30/10 | 30 | 10 | 2.4 | 1 | 1.22 | 25 |
| 40/13 | 40 | 13 | 2.4 | 1 | 1.22 | 25 |
| 50/19 | 50 | 19 | 2.4 | 1 | 1.22 | 25 |
For detailed product information, please consult
