Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUOLIN
-
Model Number:
-
CF-G-2-20g
-
Capacity (CFM):
-
600
-
Power (W):
-
200
-
Voltage (V):
-
220
-
Principle:
-
Corona discharge
-
Ozone capacity:
-
20g/h
-
Media type:
-
DTA non-glass dielectric tube
-
Function:
-
Lab test/water treatment/air disinfection
-
Feed gas type:
-
oxygen source
-
Ozone concentration:
-
148mg/l(10wt%)
Quick Details
-
Warranty:
-
1 Year
-
Type:
-
Ozone Generator
-
Application:
-
Outdoor, Hotel, Garage, Commercial, Household
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUOLIN
-
Model Number:
-
CF-G-2-20g
-
Capacity (CFM):
-
600
-
Power (W):
-
200
-
Voltage (V):
-
220
-
Principle:
-
Corona discharge
-
Ozone capacity:
-
20g/h
-
Media type:
-
DTA non-glass dielectric tube
-
Function:
-
Lab test/water treatment/air disinfection
-
Feed gas type:
-
oxygen source
-
Ozone concentration:
-
148mg/l(10wt%)

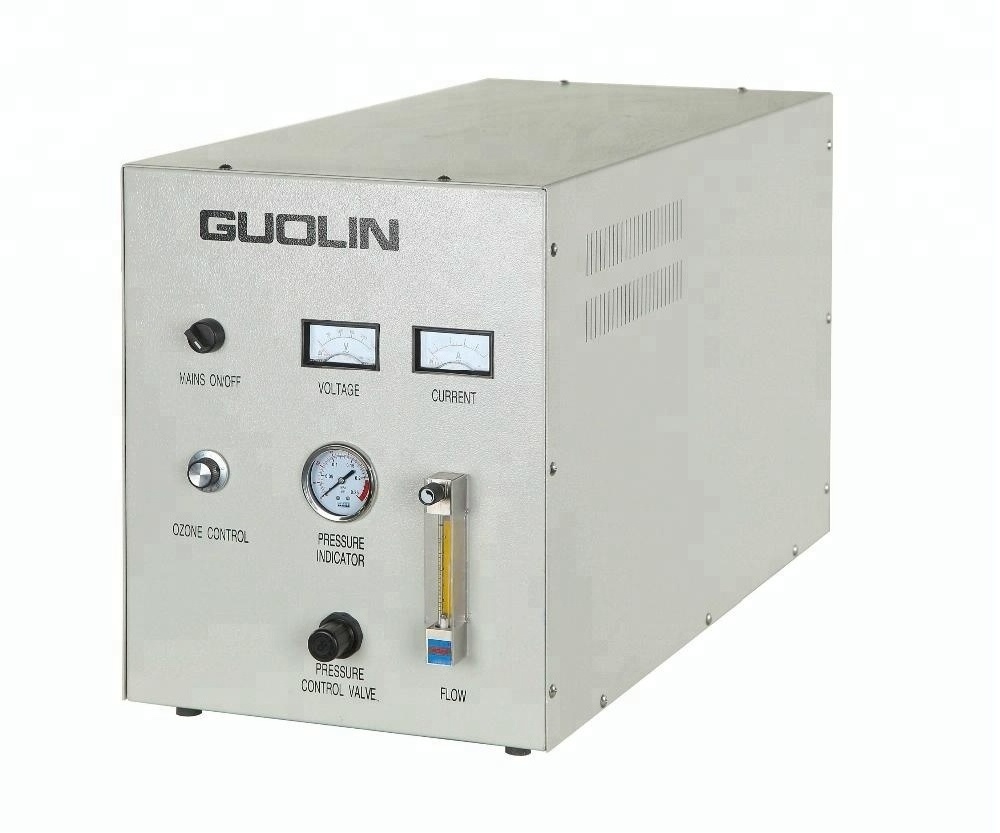

Water treatment ozone generator
GUOLIN ozone generators uses the patented technology---- connectable type non-glass dielectric tube (Patent No.: ZL 01 2 68920.3). The patented enamel dielectric tube has advantages of large ozone production and high ozone concentration. Ozone power supply adopts special independent power supply technology for more reasonable matching and better adaptability. The equipment uses standard feed gas source and cooling way guarantee. The stability, technical indicators and application results of the equipment are better than those of domestic similar products. The life time of equipment is more than ten years.
Main Features
1 Water cooling mode. Multi-stage cooling structure design ensures the cooling efficiency to be increased by 20%. Equipment can be running continuously for 24hrs;
2 Patented enamel dielectric tube with features of high strength, good pressure resistance and good heat resistance; easier to be maintained;
3 Electrode tube is made of 316L stainless steel; imported medium coating material is used for dielectric tube;
4.Ozone capacity could be regulated with range of 10%-100%; high ozone concentration, large ozone capacity, more stable performance and longer life time;
5.Equipment has operation monitoring functions to current, voltage, temperature, flow rate, gas pressure and operation status and protection functions;
6. Control method includes manual control and automatic control for option.
Product Composition
Model: CF-G-3-20g
Brand: GUOLIN
Original: China
---ozone generation device (ozone generation tank, dielectric tube, high voltage fuse)
----PSU device(includes high voltage transformer, DC reactor, coil in reactor, rectifier and inverter, etc )
----control device (includes circuit board, power meter, ozone capacity adjusting knob, etc.)
----instruments and pipelines(gas flow meter, pressure relief valve, check valve, pressure switch and regulation valve, etc.)
----PLC control system and monitoring instruments (automatic control type) (option)
Customer service center set up 400 and 800 national service hotline for the user to answer the questions during the operation of equipment. We make service commitment of "fast response, rapid action" and provide customers with convenient after-sales service.
Customer service center works based on the strategic policy of "taking the technology as guide, quality as main line and customer satisfaction as the purpose ". We devote ourselves to build a professional after-sales service team. At the same time, the customer service center has a professional after-sales service vehicles and service equipment to provide customers with professional after-sales service.
After-Sales Service Work
Guolin After-sales Service Center could provide a comprehensive pre-sales, sales and after-sales service for customers to make sure the stable operation of all products. Guolin will supply the most advanced products, the most convenient operation and maintenance and best service for all industries.
Packaging
Packaging Details:
All of GUOLIN ozone generators and corollary equipments are packed by plywood case which meet the requirements of export without fumigation.
