Quick Details
-
Raw Material:
-
Steel
-
Power:
-
Manual
-
Machine model:
-
W2.5X2500
-
Bending thickness:
-
2.5MM
-
Length:
-
2500mm
-
Voltage:
-
Cutomized
-
tools material:
-
42 CrMo
-
Bending angle:
-
60-130 degree
-
Dimension:
-
2750x900x1200mm
Quick Details
-
Certification:
-
CE, ISO CE
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
-
Machine Type:
-
Sheet Metal Folder , Hand Brake
-
Raw Material:
-
Steel
-
Power:
-
Manual
-
Machine model:
-
W2.5X2500
-
Bending thickness:
-
2.5MM
-
Length:
-
2500mm
-
Voltage:
-
Cutomized
-
tools material:
-
42 CrMo
-
Bending angle:
-
60-130 degree
-
Dimension:
-
2750x900x1200mm

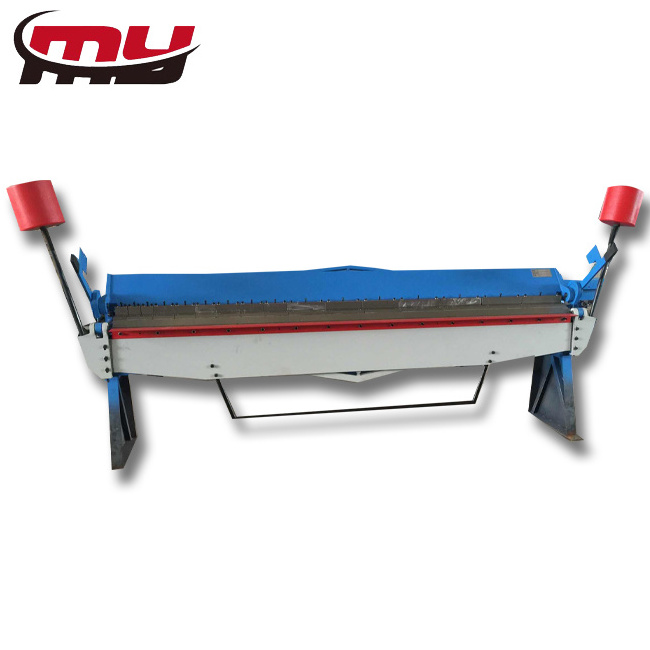

MYT brand Sheet Metal Folder , Hand Brake , Box and Pan Brake for sale
Product Description
Description of Sheet Metal Folder , Hand Brake , Box and Pan Brake for sale
The manual folding machine is one of the thin sheet metal processing equipments. It's especially used on thin plate's bending process. It has light weight, simple operation, convenient transportation. And its suitable to use in any environment and the length can be customized according to customer's requirements.
It is adjustable on movable mold, or under the asjustable mode, asjustable by the panel cutter, and processing according to the different needs of different sizes, will be folded out of sheet metal flanging or four sides together at the end of one piece or set pieces.
manual pan brake folder
Advantages
Hand Operated Metal Folder For Pan Brake machine
Both of the machine's up and down movements can be adjusted. They can process workpieces according to the customer's requirement and can fold sheet into a box/pan with four sides.
It is light, energy saving, high efficiency, and has high output speed.
Standard Features of Pan and Box Folder / sheet metal folding machine / manual press brake
1.Segmented top blade
2.Clamping blade has adjustments for clamping pressure and materials thickness
3.Heavy duty steel fabricated construction
4.Adjustable clamping pressure beam and apron to prevent distortion during bending
5.Has a range of finger widths to enable the bending of pans or boxes
| Modle | Capacity(mm) | Packing size(cm) | N.W./G.W.(kg) | ||
| Length | Thickness | Angle | |||
| W2.5X1220 | 1220mm(48") | 2.5mm(12Ga) | 0-135° | 171x75x94 | 513/575 |
| W2.0X2040A | 2040mm(80") | 2.0mm(14Ga) | 0-135° | 255x76x100 | 850/1000 |
| W2.5X2040A | 2040mm(80") | 2.5mm(12Ga) | 0-135° | 255x76x100 | 1145/1295 |
| W2.0X2540A | 2540mm(100") | 2.0mm(14Ga) | 0-135° | 300x76x100 | 1190/1360 |
| W2.5X2540A | 2540mm(100") | 2.5mm(12Ga) | 0-135° | 300x76x100 | 1310/1480 |
| W2.0X3050A | 3050mm(120") | 2.0mm(14Ga) | 0-135° | 350x76x110 | 1490/1690 |
| W1.2X3700A | 3700mm(146") | 1.2mm(20Ga) | 0-135° | 425x85x120 | 2450/2670 |
| W0.8X4000A | 4000mm(157") | 0.8mm(22Ga) | 0-135° | 470x90x120 | 2700/2950 |
Detailed images about Sheet Metal Folder , Hand Brake , Box and Pan Brake for sale
From Left side about Sheet Metal Folder , Hand Brake , Box and Pan Brake for sale
Blades about Sheet Metal Folder , Hand Brake , Box and Pan Brake for sale
Sheet Metal Folder , Hand Brake , Box and Pan Brake for sale
Sheet Metal Folder , Hand Brake , Box and Pan Brake for sale
