- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
uni-t
-
Model Number:
-
electroplating rectifier DCPower Supply
-
Output Frequency:
-
47Hz/63Hz
-
Output Current:
-
0~6A
-
Color:
-
White and grey
-
DC Gain Accuracy:
-
±3%
Quick Details
-
Output Power:
-
101 - 200W
-
Input Voltage:
-
115VAC/230VA
-
Output Voltage:
-
0~32V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
uni-t
-
Model Number:
-
electroplating rectifier DCPower Supply
-
Output Frequency:
-
47Hz/63Hz
-
Output Current:
-
0~6A
-
Color:
-
White and grey
-
DC Gain Accuracy:
-
±3%
The electroplating rectifier power supply is an economical switching DC power supply with a single output. It has pure output and excellent performance indicators to meet diverse testing needs.

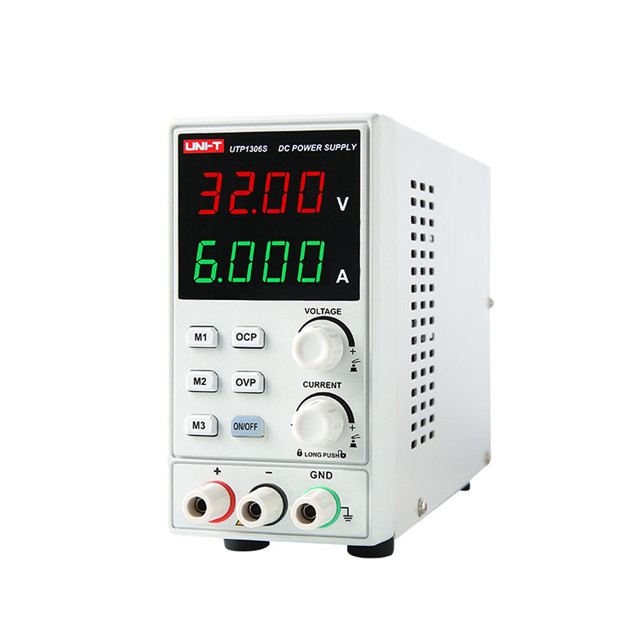

32V 5A Programmable dc power supply electroplating rectifier
32V/6A
Voltage / current display resolution: 10mV / 1mA
Single output
Four-digit voltage and current display
Overvoltage / overcurrent / over temperature protection
3 groups of one-click call to store the value
Overcurrent/overvoltage protection value can be set
Independent output switch
Operation button can be locked
| basic skills | electroplating rectifier |
| Rated output voltage | 0~32V |
| Rated output current | 0~6A |
| Output Power | 192W |
| Load regulation rate | Voltage: <0.3%+5mV |
| Current: <0.2%+3mA | |
| Power regulation rate | Voltage: <0.3%+5mV |
| Current: <0.2%+3mA | |
| Set resolution | Voltage: 10mV |
| Current: 1mA | |
| Readback resolution | Voltage: 10mV |
| Current: 1mA | |
| Setting accuracy | Voltage: <0.5%+5mV |
| (25 ° C ± 5 ° C) | Current: <0.2%+3mA |
| Ripple and noise | Voltage: ≤10mVrms |
| (20Hz~20MHz) | Current: ≤ 2mArms |
| Temperature Coefficient | Voltage: ≤300ppm/°C |
| Current: ≤300ppm/°C | |
| Display type | LED digital tube display |
| voltage | AC 220V±10% |
| frequency | 50Hz/60Hz |
| Size (W*H*D) | 80mm × 150mm × 230mm |
| weight | 2 kg |
We provide 30 days warranty counting from the arrival date of the item.
If the parts you purchased from us are not of perfected quality or they don't work, please simply return them to us for replacement or refund.
If the part is defective, please notify us within 3 days after arrival.
Any parts must be returned in their original condition to qualify for a refund or replacement.
