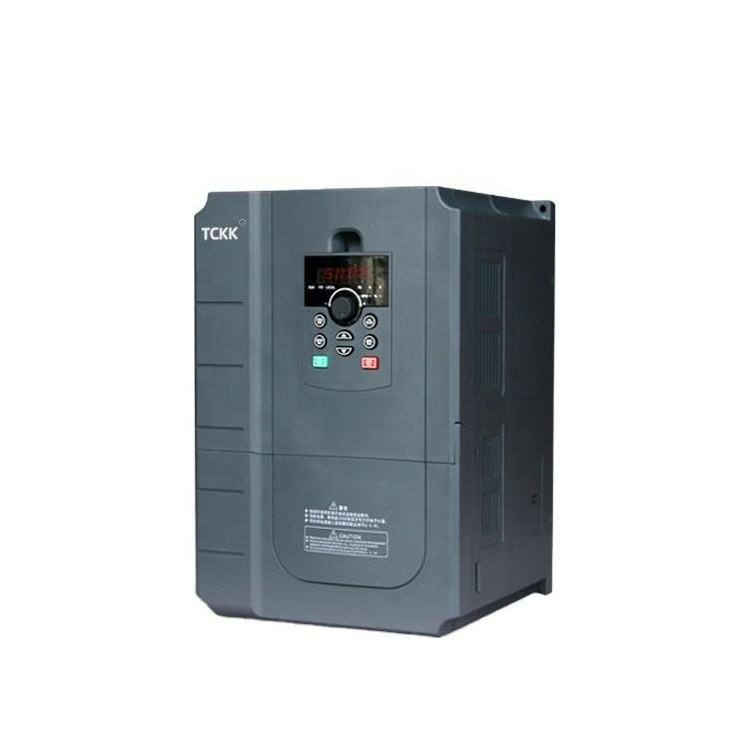

Quick Details
-
power phase number:
-
3
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TCKK
-
Model Number:
-
TK500-T0185G3
-
Warranty:
-
18 months
-
Type:
-
Frequency Converter
-
Certification:
-
CE& Test Report
Quick Details
-
Control Mode:
-
Control Panel
-
Rated Power:
-
18.5kW
-
Nominal Voltage:
-
380V
-
power phase number:
-
3
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TCKK
-
Model Number:
-
TK500-T0185G3
-
Warranty:
-
18 months
-
Type:
-
Frequency Converter
-
Certification:
-
CE& Test Report
Frequency converter models and technical data( Three - phase 380V~480V)
| Item | Norm | |||||||||||||||
| Input Power | 0007 | 0015 | 0022 | 0030 | 0040 | 0050 | 0075 | 0110 | 0150 | 0185 | 0220 | 0300 | 0370 | 0450 | 0550 | |
| Applicable Motor Capacity | 0.75 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 | 11.0 |
15.0 |
18.5 | 22.0 | 30.0 | 37.0 | 45.0 | 55.0 | |
| Output | Rated Output Current | 1.5 | 3.8 | 6.0 | 7.5 | 8.0 | 13.0 | 17.0 | 25.0 | 32.0 | 37.0 | 45.0 | 60.0 | 75.0 | 90.0 | 110.0 |
| Output Voltage | Three-Phase: 0~Input voltage | |||||||||||||||
| Max Output Frequency | 500Hz ( Can be changed by parameters) | |||||||||||||||
| Carrier Frequency | 0.8kHz~8.0kHz ( Automatic adjustment of carrier frequency according to load characteristics) | |||||||||||||||
| Overload Capacity |
150% rated current ( For 60s) |
|||||||||||||||
| Input | Rated Input Current | 2.4 | 4.6 | 6.3 | 9.0 | 11.4 | 16.7 | 21.9 | 32.2 | 41.3 | 49.5 | 59.0 | 57.0 | 69.0 | 89.0 | 106.0 |
| Rated Voltage/ Frequency | AC Three-Phase: 380V~480V, 50Hz/60Hz | |||||||||||||||
| Permissible Voltage Fluctuation range | -15%~10%, Actual allowable range: AC 323V~ 528V | |||||||||||||||
|
Permissible Frequency Fluctuation Range |
±5%, Actual allowable range: 47.5Hz~ 63Hz | |||||||||||||||
| Power Capacity (kVA) | 2.8 | 4.1 | 5.0 | 6.7 | 9.5 | 12 | 17.5 | 22.8 | 33.4 | 42.8 | 45.0 | 54.0 | 63.0 | 81.0 | 97.0 | |
| Item | Norm | |||||||||||||||
| Input Power | 0750 | 0930 | 1100 | 1320 | 1600 | 1850 | 2000 | 2200 | 2500 | 2800 | 3150 | 3550 | 4000 | 4500 | 5000 | |
| Applicable Motor Capacity | 75 | 90 | 110 | 132 | 160 | 185 | 200 | 220 |
250 |
280 | 315 | 355 | 400 | 450 | 500 | |
| Output | Rated Output Current | 150 | 180 | 220 | 260 | 320 | 370 | 400 | 440 | 480 | 520 | 630 | 700 | 800 | 900 | 1000 |
| Output Voltage | Three-Phase: 0~Input voltage | |||||||||||||||
| Max Output Frequency | 500Hz ( Can be changed by parameters) | |||||||||||||||
| Carrier Frequency | 0.8kHz~ 8.0kHz | 0.8kHz~6.0kHz | ||||||||||||||
| Automatic Adjustment Of Carrier Frequency according to Load Characteristics | ||||||||||||||||
| Overload Capacity |
150% rated current ( For 60s) |
|||||||||||||||
| Input | Rated Input Current | 139.0 | 164.0 | 196.0 | 240.0 | 287.0 | 323.0 | 365.0 | 410.0 | 441.0 | 495.0 | 565.0 | 617.0 | 687.0 | 782.0 | 820.0 |
| Rated Voltage/ Frequency | AC Three-Phase: 380V~480V, 50Hz/60Hz | |||||||||||||||
| Permissible Voltage Fluctuation range | -15%~10%, Actual allowable range: AC 323V~ 528V | |||||||||||||||
|
Permissible Frequency Fluctuation Range |
±5%, Actual allowable range: 47.5Hz~ 63Hz | |||||||||||||||
| Power Capacity (kVA) | 127 | 150 | 179 | 220 | 263 | 305 | 334 | 375 | 404 | 453 | 517 | 565 | 629 | 716 | 800 | |
Q1: What's the function of Taikong frequency converter?
A1: Taikong frequency converter control the speed and frequency of motors, which is widely used in industrial control, automation systems.
Q2: How to choose suitable model for my motor?
A2: Please send us the details of your motor, we will provide you the best suitable model.
Q3: What's the payment term?
A3: We accept T/T, L/C, D/A, D/P, WESTERN UNION, PAYPAL, CASH, etc.
Q4: What's the delivery time?
A4: For 2000pcs converter, it usually take take one week to finish.
Q5: What kind of product quality your factory offer?
A5: We offer most competitive price with best quality.
Q6: What kind of certificate you have?
A6: We have TUV, CE etc.
Q7: Do you accept OEM business?
A7: We accept OEM with your autuerization.
Q8: How do you control quality?
A8: Our production strictly follow quality control system, after four times quality inspection and high temperature testing, we will print "QA" pass, we also have ERP system for convenient.
