Quick Details
-
Ice storage capacity:
-
/
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Robin
-
Dimension(L*W*H):
-
1900*1800*2250mm
-
Weight:
-
1800 KG
-
Product name:
-
High quality crystal ice tube tube ice machine 5 tons for sale
-
Keyword:
-
ice tubes machine
-
Feature:
-
Easy Operating
-
Refrigerant:
-
R22 or R404a
-
Cooling way:
-
water cooling or air cooling
-
Tube ice diameter:
-
28mm,&34mm in diameter/customerized
-
Daily capacity:
-
5ton/24hours
-
Harvest ice way:
-
Hot gas defrost
-
Freezing time:
-
Every 20 minutes for a cycle
-
Framework struture:
-
SUS304 stainless steel
Quick Details
-
Ice Shape:
-
tube
-
Voltage:
-
380v
-
Power:
-
23kw
-
Ice storage capacity:
-
/
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Robin
-
Dimension(L*W*H):
-
1900*1800*2250mm
-
Weight:
-
1800 KG
-
Product name:
-
High quality crystal ice tube tube ice machine 5 tons for sale
-
Keyword:
-
ice tubes machine
-
Feature:
-
Easy Operating
-
Refrigerant:
-
R22 or R404a
-
Cooling way:
-
water cooling or air cooling
-
Tube ice diameter:
-
28mm,&34mm in diameter/customerized
-
Daily capacity:
-
5ton/24hours
-
Harvest ice way:
-
Hot gas defrost
-
Freezing time:
-
Every 20 minutes for a cycle
-
Framework struture:
-
SUS304 stainless steel

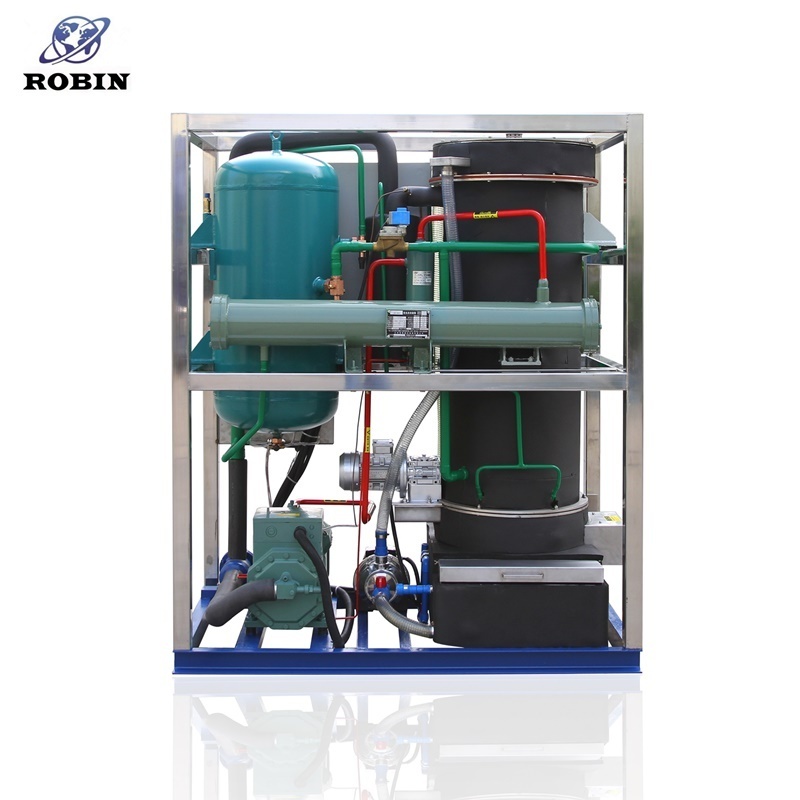

High quality crystal ice tube tube ice machine 5 tons for sale
5 ton tube ice machine is a good choice for community ice business. The ice plant design provided is able to make the machine operation during night, to make more profit for you. A complete tube ice plant normally is equipped with water filter, water tank, tube ice machine, ice bin, ice packing machine, cold storage and ice delivery car. We are able to provide you with the whole line of products. There is no need for you to buy all those products one by one.
Daily Production: 5 ton/24h Features:
- Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
- After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
- With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
- The use of stainless steel SUS304,aluminum alloy plate type evaporator, accords with the health and safety requirements.
- The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.
- Half full liquid: liquid level controller which manages liquid supply of refrigerant makes the system more stable.
- All equipments are assembled in the steel frame, except cooling tower.
- Adopt the highest quality spare parts of international brands, such as Bitzer, Danfoss, Siemens, etc.
5ton Tube Ice Machine Parameters
|
Daily output
(T/24h) |
Compressor
Power |
Fan Power for Cooling Tower |
Cooling Pump
Power |
Unit size (L*W*H mm)
(Intergrated Type) |
Unit N.W.
(kg) |
| 5 | 19.9kw | 0.55kw | 2.2kw | 1600*1400*2250 | 1800 |
|
♦Compressor Brand: Bitzer / Frascold; Refrigerant: R22/R404A; Cooling Method: Water Cooling / Air Cooling;
♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating):-12℃. ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) ♦ (The final interpretation of the above metioned parameters is in Robin, there will be no further notice, if there is any technical change.) |
|||||
Ice tube Size as option:
Tube ice outer diameter is 16mm,22mm, 28mm, 34mm, 40mm; The inner diameter can be adjusted according to the ice making time. Usually it's between 5~10mm.
| Bitzer compressor: high efficiency, low loss, low noise, long service life. | |
| Touch screen: simple operation: the electric control box adopts PLC microcomputer program control, automatic ice forming, automatic ice dropping, automatic ice out and fault intelligent display. | |
| Evaporation barrel: material using SUS304.PE, aluminum alloy and other materials processing, the use of large rounded corner over set.So that there is no dead Angle of cleaning inside the equipment. | |
| Ice outlet: when the ice pipe falls, the ice cutting mechanism will operate and cut the ice pipe into the set size. |
Customers feedback
|
Perfect service system: All ice machines come out with 12 months full warranty. If the machine breaks down in 12 months, Robin will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. |
|
|
Process: |
Please provide the copy of Sales Contract and describe the problems appeared. |
|
Problems conf ir mation: |
|
|
Slight problem: |
Please send the proof to our After-Sales Department, we will reply within two days. |
|
Serious problem: |
|
|
A |
We will dispatch our Quality and Problems Appraisers to make a confirmation. |
|
B |
Have a negotiation of the compensation and sign agreements |
|
C |
Our After-Sales Department will perform the duties as the agreement |
1, What should I prepare to buy the ice machine from you?
First, we will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
Second, the install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V, 50Hz,3P, most North and South America countries are using 220V,60Hz,3P, please confirm with our salesman and make sure it is available in your factory.
Third, with all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment[T/T or L/C or Trade Assurance Order on Alibaba.com directly] to close the deal, for all our standard design, we will need about 35~45 working days on the production.
Fourth. After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2, How to install the ice machine?
For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3, What if I buy your ice machine, but I cannot find the solution for the problem?
All ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
