Quick Details
-
Table Travel (Y) (mm):
-
1400
-
Dimension(L*W*H):
-
4980*2850*3200mm
-
Weight (T):
-
11.5 T
-
Table Travel (Z) (mm):
-
668
-
Range of Spindle Speed(r.p.m):
-
1 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
15-18.5
-
Max. Table Load(kg):
-
2000 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BORUI
-
Voltage:
-
Customer
-
CNC or Not:
-
CNC
-
Machine Type:
-
CNC Vertical Machining Center
-
Product name:
-
3-axis Vertical CNC Machining Center
-
Controlling Mode:
-
CNC Control
-
Product type:
-
gantry machining center
-
Application:
-
Metal Machining Center
-
Name:
-
Vertical Machine Center CNC Machine
-
Keywords:
-
VMC Machine Center
-
Processing:
-
Metal Cutting CNC Milling Machine
-
Precision:
-
High Precision Machining Center
Quick Details
-
Table Size (mm):
-
1700x1400
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
1700
-
Table Travel (Y) (mm):
-
1400
-
Dimension(L*W*H):
-
4980*2850*3200mm
-
Weight (T):
-
11.5 T
-
Table Travel (Z) (mm):
-
668
-
Range of Spindle Speed(r.p.m):
-
1 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
15-18.5
-
Max. Table Load(kg):
-
2000 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BORUI
-
Voltage:
-
Customer
-
CNC or Not:
-
CNC
-
Machine Type:
-
CNC Vertical Machining Center
-
Product name:
-
3-axis Vertical CNC Machining Center
-
Controlling Mode:
-
CNC Control
-
Product type:
-
gantry machining center
-
Application:
-
Metal Machining Center
-
Name:
-
Vertical Machine Center CNC Machine
-
Keywords:
-
VMC Machine Center
-
Processing:
-
Metal Cutting CNC Milling Machine
-
Precision:
-
High Precision Machining Center

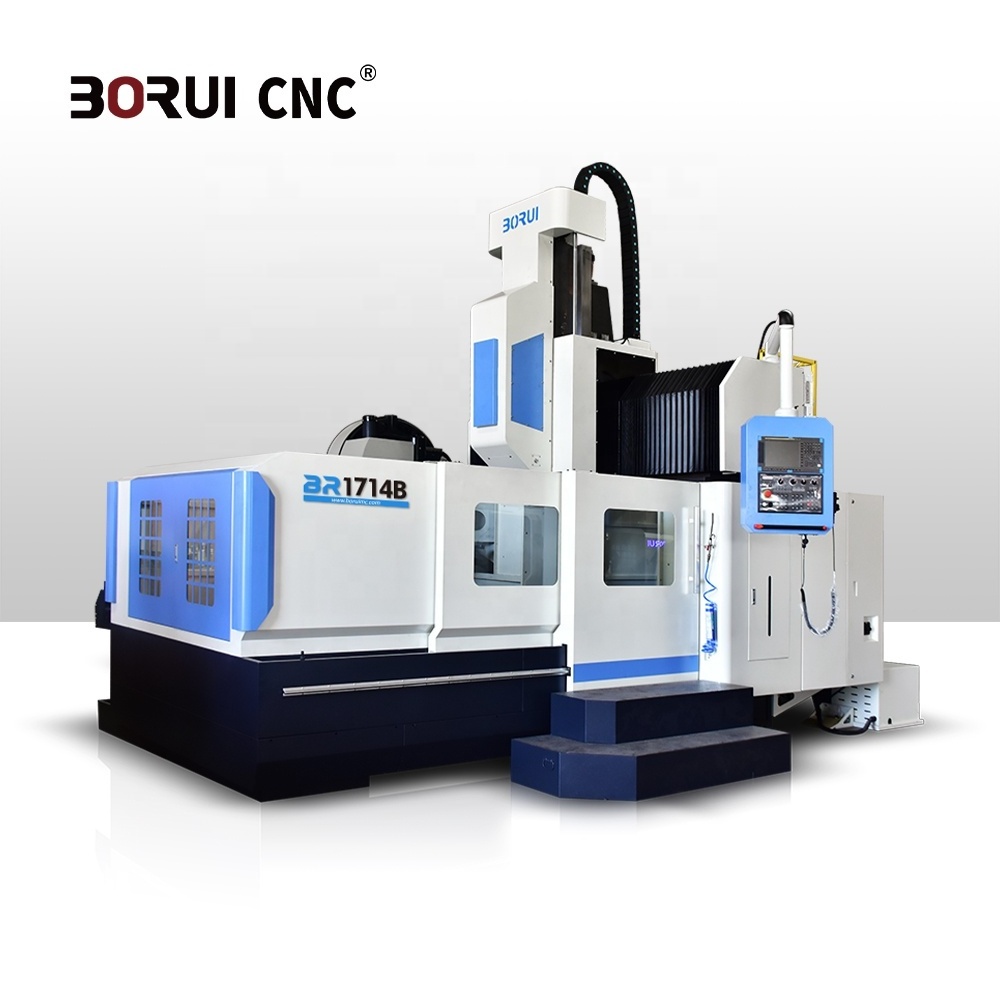

BR1714B CNC
Gantry
Machining Center
Product Description
Product main technical parameters:
|
Type
|
BR1714B
|
|
Travel(X*Y*Z)(mm)
|
1700*1400*668
|
|
Table size(X*Y)(mm)
|
1700*1400
|
|
Maximum load(KG)
|
5000
|
|
Distance from spindle nose to table(mm)
|
225-895(Proboscinal spindle)
|
|
Spindle housing spindle mounting face distance to table surface
|
350
|
|
Inner width of gantry frame(mm)
|
1450
|
|
The height through which the gantry can pass(mm)
|
1000
|
|
Screw specification(X*Y*Z)(mm)
|
50*50*50
|
|
Roller guide specifications(X*Y*Z)(mm)
|
45*45*45-45
|
|
Number of sliders(X*Y*Z)(PCS)
|
X:6;Y:4;Z:8
|
|
Lead screw pitch(mm)
|
X/Y/Z*10 or 12
|
|
Number of T-slots(PCS)
|
7-M167
|
|
spindle(Specifications - Mounting diameter)
|
150/190
|
|
Spindle connection mode
|
direct connection/belt
|
|
Optical machine dimensions(L*W*H mm)
|
4980*2850*3200
|
|
Casting body weight(about)(T)
|
11.5
|
|
Sheet metal weight(about)(KG)
|
1500
|
