Quick Details
-
Power:
-
2.2~75KW
-
Dimension(L*W*H):
-
Min 63*48*58cm
-
Weight (KG):
-
1200
-
Capacity:
-
100~4000kg/h
-
Feed size:
-
10~450mm
-
Final powder size:
-
2mm~8mm
-
Application:
-
Crushing the straw and hard wood
-
Engine Type:
-
Diesel,electrical and PTO(tractor driven)
-
Color:
-
According to customer's request
-
Accept currency:
-
Dollar and Euro
-
Weight:
-
95~1200KG
-
Keywords:
-
Sawdust Machine Wood Crusher Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Known
-
Voltage:
-
220V/380V/418V/480V
-
Power:
-
2.2~75KW
-
Dimension(L*W*H):
-
Min 63*48*58cm
-
Weight (KG):
-
1200
-
Capacity:
-
100~4000kg/h
-
Feed size:
-
10~450mm
-
Final powder size:
-
2mm~8mm
-
Application:
-
Crushing the straw and hard wood
-
Engine Type:
-
Diesel,electrical and PTO(tractor driven)
-
Color:
-
According to customer's request
-
Accept currency:
-
Dollar and Euro
-
Weight:
-
95~1200KG
-
Keywords:
-
Sawdust Machine Wood Crusher Machine

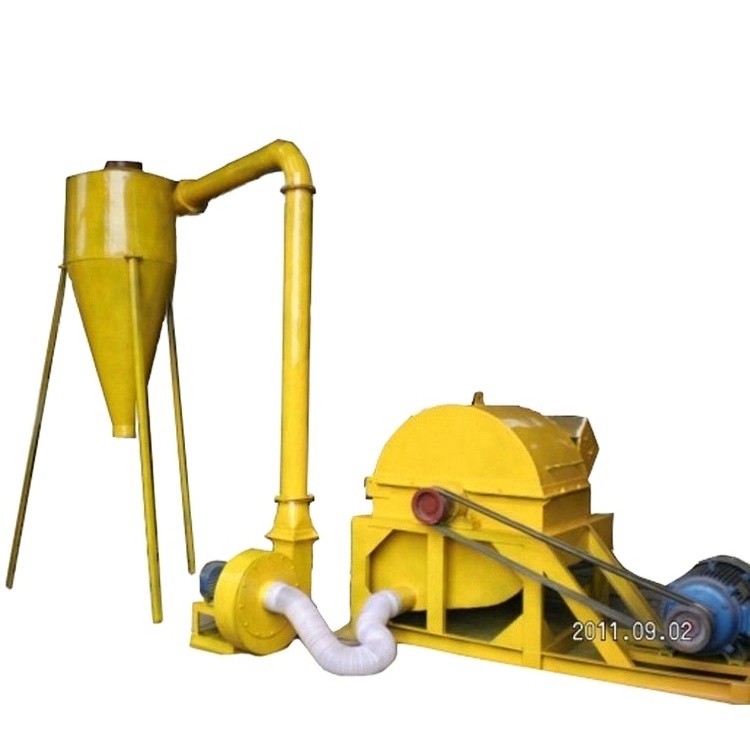

Factory supply the wood pallet crusher with CE
Features--- wood pallet crusher
1, With CE & ISO
2, Safe &Simple operation
3, Low energy, high capacity
4, Best service & fast delivery
Introduction--- wood pallet crusher
Our crusher is new style and multipurpose machine, it can be crushing 10~400 mm (diameter) raw materials . It is use to crushing the raw materials into powder in one process, the finally powder can reach to 1~8mm , no need to use other machines. It have the characteristics of compact structure, strong and durable,safe and reliable, easy operation, low noise, low energy and high efficiency, easy maintenance, etc.
About the crusher we have two series: Hammer mill series and Disk mill series.
· The Hammer mill series is suit to crushing the wood chip, wood branch, straw, bark, leaf, shell, plant root, stalk, leaf, flower, palm fiber and all kinds of small and soft raw materials, etc.
· The Disk mill series is suit to crushing the raw wood, hard wood, big wood, Pine, bamboo, wood pallet, and all kinds big and hard raw materials, etc.
Specification--- wood pallet crusher
|
The Hammer mill series |
|||||
|
Models |
Power |
Capacity |
Weight |
Size(cm) |
|
|
KN-C-158 |
2.2KW |
100~200KG/H |
95KG |
63*48*58 |
|
|
KN-C-198 |
4kw |
200~300 KG/H |
150KG |
97*75*64 |
|
|
KN-C-420 |
7.5KW |
200~500KG/H |
320KG |
165*82*120 |
|
|
KN-C-480 |
11KW |
300~700KG/H |
340KG |
165*82*120 |
|
|
KN-C-500 |
22KW |
800-1200 KG/H |
580KG |
145×85×130 |
|
|
KN-C-420B |
15HP |
300-700KG/H |
400KG |
165*82*120 |
|
|
KN-C-480B |
22HP |
400~1000 KG/H |
410KG |
165*82*120 |
|
|
KN-C-500B |
55HP |
800~1200 KG/H |
600KG |
180*90*145 |
|
|
The Disk mill series |
|
||||
|
Models |
Power |
Capacity |
Feeder size(cm) |
Machine Size(cm) |
|
|
KN-DC-420 |
7.5KW |
300-700 KG/H |
17*15 |
120*55*75 |
|
|
KN-DC-500 |
15KW |
800~1500KG/H |
20*17 |
150*64*82 |
|
|
KN-DC-600 |
22/30KW |
1500~2000 KG/H |
22*19 |
150*70*90 |
|
|
KN-DC-700 |
37KW |
2000~3000KG/H |
23*19 |
185*83*105 |
|
|
KN-DC-1000 |
75KW |
3000~4000 KG/H |
27*25 |
200*187*150 |
|
|
KN-DC-400 |
15HP |
300-500 KG/H |
17*15 |
155×68×110 |
|
The Picture of working principle ----- wood pallet crusher
The picture of packing----
wood pallet crusher
We are very glad to use our knowledge and experience to help you, please inform us these figures:
1.What’s raw materials?
2, The size of your materials? (Diameter& length)
3. Final powder size (mm)?
4. How many do you want to product (KG/H)?
Thanks for your understanding and cooperation! This is my contact information:
More details:
|
Delivery time: |
Within ten working days after received your payments. |
|
Payment : |
by T/T, L/C at sight , or Western Union |
|
Packing: |
In wooden cases |
|
Supply ability: |
500 sets per month |
|
MOQ: |
One set |
|
Currency: |
Dollar and Euro |
