Quick Details
-
Filling Accuracy:
-
99
-
Voltage:
-
220v
-
Place of Origin:
-
China
-
Brand Name:
-
lviv
-
Dimension(L*W*H):
-
1200X650X1400
-
Weight:
-
180 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
MATERIAL:
-
SS304
-
WARRANTY:
-
ONE YEAR
-
FILLING RANGE:
-
30-500ML
-
SPEED:
-
2000-3500BPH
-
MODEL:
-
LVIV-YXD-B
Quick Details
-
Machinery Capacity:
-
Other, 2000BPH
-
Packaging Material:
-
Plastic, Paper
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
99
-
Voltage:
-
220v
-
Place of Origin:
-
China
-
Brand Name:
-
lviv
-
Dimension(L*W*H):
-
1200X650X1400
-
Weight:
-
180 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
MATERIAL:
-
SS304
-
WARRANTY:
-
ONE YEAR
-
FILLING RANGE:
-
30-500ML
-
SPEED:
-
2000-3500BPH
-
MODEL:
-
LVIV-YXD-B
Milking machine
Product Application

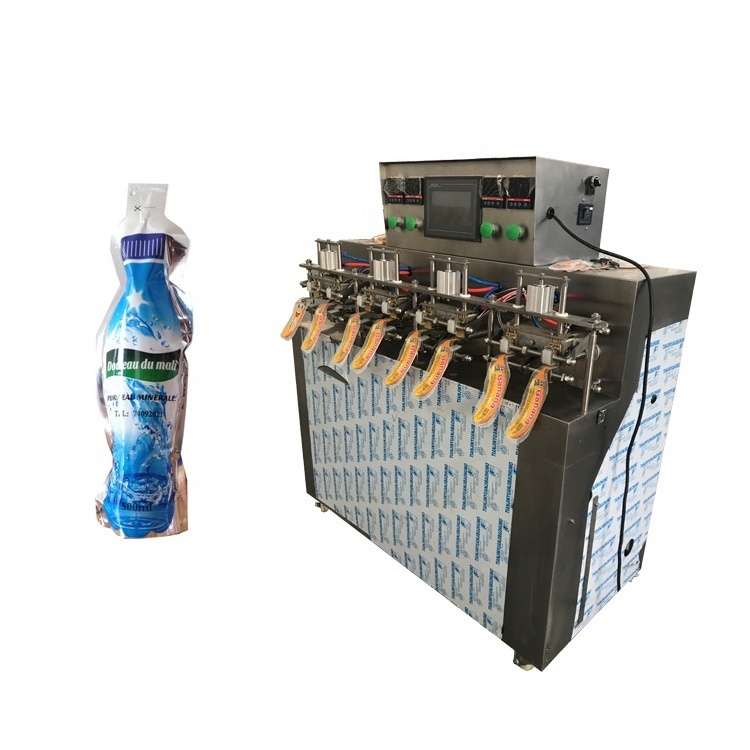

The pouch packing machine is a popular international packaging shape. It is also called pre-shaped bags, expansion bags. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc. (pouch packing machine)
It is widely used in dairy products such as milk, yogurt, lactic acid drinks, Japanese tofu, soy sauce, cooking oil, drinks, mineral water, cleaning supplies, alcohol, etc.(pouch packing machine)
|
SPECIFICATIONS FOR HIGH SPEED POUCH PACKING MACHINE
|
|
|
|
|||
|
MODEL
|
LVIV-YXD-B pouch packing machine
|
|
|
|||
|
SPEED
|
2000-3500BPH
|
|
|
|||
|
POWER
|
1.2-1.6KW/HR
|
|
|
|||
|
FILLING NOZZLE
|
8NOZZLE
|
|
|
|||
|
WORKING STATION
|
4STATION
|
|
|
|||
|
FILLING RANGE
|
30-500ML
|
|
|
|||
|
FILLING ACCURACY
|
±1%
|
|
|
|||
|
POWER INPUT
|
220V 50Hz or 220V 60Hz or 110V 60Hz
|
|
|
|||
|
AIR PRESSURE
|
0.5-0.8 Mpa
|
|
|
|||
|
AIR CONSUMPTION
|
0.25-0.50 M3/MIN
|
|
|
|||
|
FILM THICKNESS
|
>0.18MM
|
|
|
|||
|
WEIGHT
|
180KGS
|
|
|
|||
|
SIZE(LXWXH)
|
1300X650X1400MM
|
|
|
|||
|
PACKAGING
|
WOODEN CASE
|
|
|
|||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
6) Earth leakage protection device
7) Fully Computer control system, you can adjustment filling volume and speed from PLC touch screen
8) Automatic accounting and stop system, such as you set filling 100pcs pouch , the machine will be automatic stop.
pouch packing machine
Main parts machine
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
1300(L) * 650 (W) * 1400 (H)
|
|
|
Weight
|
180KGS
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
1300(L) * 650 (W) * 1400 (H)
|
|
|
Weight
|
180KGS
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
