Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LUNYEE
-
Dimension(L*W*H):
-
120*60*123cm
-
Weight (KG):
-
281 KG
-
After-sales Service Provided:
-
online survice
-
fiber length:
-
10m
-
way of working:
-
continuous light
-
laser wavelength:
-
1070/1080nm
-
welding speed:
-
0~120mm/s
-
chiller:
-
douale temerature control cooler
-
cooling medium:
-
distilled or deionized water
-
working environment:
-
15~35℃ humidity 10%~90% no condensation
-
applicable plate thickness:
-
0~10mm
-
gap requirements:
-
0~2mm
-
maximum power consumption:
-
<5kw/<6kw/<6.5kw
Quick Details
-
Power:
-
1500W, 1000W, 2000W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
RAYCUS
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LUNYEE
-
Dimension(L*W*H):
-
120*60*123cm
-
Weight (KG):
-
281 KG
-
After-sales Service Provided:
-
online survice
-
fiber length:
-
10m
-
way of working:
-
continuous light
-
laser wavelength:
-
1070/1080nm
-
welding speed:
-
0~120mm/s
-
chiller:
-
douale temerature control cooler
-
cooling medium:
-
distilled or deionized water
-
working environment:
-
15~35℃ humidity 10%~90% no condensation
-
applicable plate thickness:
-
0~10mm
-
gap requirements:
-
0~2mm
-
maximum power consumption:
-
<5kw/<6kw/<6.5kw

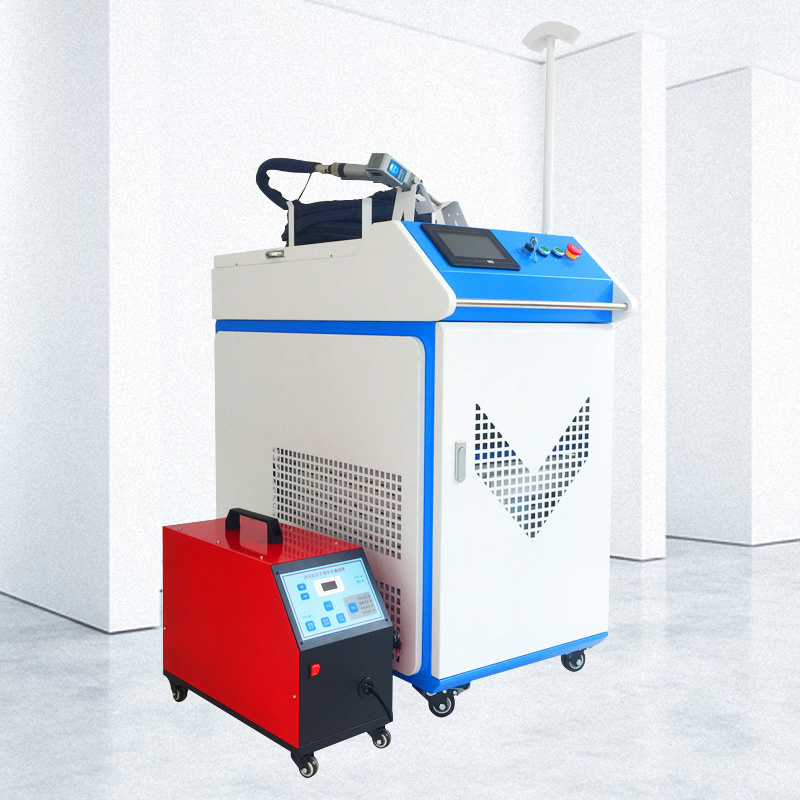

Product Picture
|
Machine parameter
|
|
|
|
|
|||
|
Rated output power
|
1000W
|
1500W
|
2000W
|
|
|||
|
Weld thickness
|
0.3-3mm
|
0.3-4.5mm
|
0.3-6mm
|
|
|||
|
Voltage
|
220V±10V
|
220V±10V
|
380V±10V
|
|
|||
|
Machine size
|
L:120cm
|
W:60cm
|
H:123cm
|
|
|||
|
Net weight (machine + wire feeder)
|
210KG
|
218KG
|
243KG
|
|
|||
|
Gross weight
|
281KG
|
289KG
|
315KG
|
|
|||
Specification
Detail Show
*Be equipped the laser welding gun
*Control panel supports multiple languages
*Lasers for welding, descaling and cutting
Parameter
|
Max Laser Power
|
≤2000W
|
|
|
Collimator Focal Length
|
50mm
|
|
|
Focus Length
|
150mm
|
|
|
Max Air Pressure
|
150Bar
|
|
|
Vertical Focus Range
|
±10mm
|
|
|
Spot Adjustment Range
|
Line 0-5mm
|
|
|
Applicable Wave Length
|
1064nm
|
|
|
Gross Weight
|
0.8kg
|
|
|
Adapt QBH interface, fit for laser machine IPG,SPI, Rofin, nLight,Raycus, Reci and Max etc.
|
|
|
Raycus Laser Features:
High electro-optical conversion efficiency
High electro-optical conversion efficiency
Output fiber length can be customized
QBH connector
Maintenance-free operation
Wide modulation frequency range
Anti-high anti-reaction ability
Efficient thin plate cutting
|
Optical properties
|
|
|
|
|||
|
Average output power:
|
1000W
|
1500W
|
2000W
|
|||
|
Center wavelength:
|
1050±5mm
|
1080±5mm
|
1080±5mm
|
|||
|
Maximum modulation frequency:
|
5kHZ
|
|
|
|||
|
Output power stability:
|
±1.5%
|
|
|
|||
|
Red light indicates output power:
|
0.1-1mW
|
|
|
|||
|
Output characteristics
|
|
|
|
|||
|
Output connector:
|
QBH(customizable)
|
|
|
|||
|
Beam quality ㎡:
|
1.3（25μm）
|
5-6(50μm)
|
5-7(50μm)
|
|||
|
Polarization state:
|
random
|
|
|
|||
|
Output fiber length:
|
20m(customizable)
|
|
|
|||
|
Electronic control characteristics
|
|
|
|
|||
|
Input Power (VAC):
|
220±10%,single phase,50/60Hz
|
|
380±10%,Three-phase four-wire
|
|||
|
Control Mode:
|
External RS232, external AD, Ethernet
|
|
|
|||
|
Power adjustment range:
|
10-100%
|
|
|
|||
|
Size:
|
485*748*237mm
|
410*610*150mm
|
485*900*237mm
|
|||
|
Weight:
|
＜40kg
|
＜50kg
|
＜80kg
|
|||
|
Cooling method:
|
water coolinh
|
|
|
|||
|
Operating temperature:
|
10-40℃
|
|
|
|||
|
Working humidity:
|
＜70%
|
|
|
|||
Wire Feeder
Easy installation, long life, low noise and low energy consumption; Small size, light weight, large torque, can be used with long-distance hand-held welding wire feeding.
Software control, the wire feeding speed parameters are designed through the control screen, and multiple sets of data
can be saved and called arbitrarily.
can be saved and called arbitrarily.
Packing List
Our company
Packing&Delivery
FAQ
Q1. How long is the delivery date?
A1. Each machine has 10 sets in stock and can be delivered quickly, if not in stock, the standard machine can be completed in
10-20 days, Customized models take about 30 days to be ready to ship.
Q2. What about machine warranty?
A2. 1 years warranty, If the main parts are damaged by non-human factors, they can be replaced free of charge. You can choose
toreplace them at the local after-sales point or send them for repair.
Q3. How to install and use?
A3. We provide 24-hour online service. You can install according to the machine's operation manual and installation video,
orchoose door-to-door installation service.
Q4. What about after-sales problems?
A4. Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and
region. You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of
warranty are free of charge.
Q5. What about wholesale price?
A5. If you are a wholesaler, distributor or agent, please contact us to obtain the wholesale price.
A1. Each machine has 10 sets in stock and can be delivered quickly, if not in stock, the standard machine can be completed in
10-20 days, Customized models take about 30 days to be ready to ship.
Q2. What about machine warranty?
A2. 1 years warranty, If the main parts are damaged by non-human factors, they can be replaced free of charge. You can choose
toreplace them at the local after-sales point or send them for repair.
Q3. How to install and use?
A3. We provide 24-hour online service. You can install according to the machine's operation manual and installation video,
orchoose door-to-door installation service.
Q4. What about after-sales problems?
A4. Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and
region. You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of
warranty are free of charge.
Q5. What about wholesale price?
A5. If you are a wholesaler, distributor or agent, please contact us to obtain the wholesale price.
