Quick Details
-
Brand Name:
-
SX
-
Model Number:
-
SX-12CP
-
power distribution:
-
12 channels
-
voltage:
-
3 phase 240v
-
power input:
-
400A camlock
-
Switch:
-
French breaker
-
connector:
-
L2130 5pin socket
-
other:
-
with LED lights
-
packing:
-
shockproof rack
-
Product Name:
-
power distro
-
Application:
-
Low Voltage Power Distribution System
-
Material:
-
copper connectors
-
Color:
-
black
Quick Details
-
Voltage:
-
220v
-
Current:
-
400 amp
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SX
-
Model Number:
-
SX-12CP
-
power distribution:
-
12 channels
-
voltage:
-
3 phase 240v
-
power input:
-
400A camlock
-
Switch:
-
French breaker
-
connector:
-
L2130 5pin socket
-
other:
-
with LED lights
-
packing:
-
shockproof rack
-
Product Name:
-
power distro
-
Application:
-
Low Voltage Power Distribution System
-
Material:
-
copper connectors
-
Color:
-
black

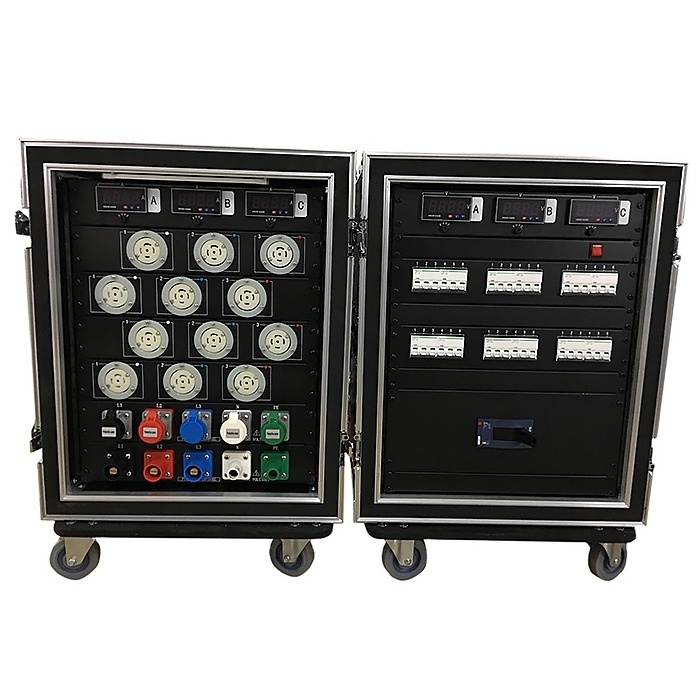

12 channels 400A camlock audio power distribution box
Description:
|
Product name |
12 channels power distribution box |
|
Brand name |
SX |
|
Model |
SX-12CP |
|
Eletrical |
|
|
Input way |
three-phase five-wire, 240V(A.B.C) + Neutral + Ground (PE), with 400A camlock power input and output |
|
Input volatage |
3 phase 240V/50-60Hz |
|
Output way |
12 channels L21-30 5pin sockets, 8KW/way, 30A/way, 220V/way |
|
Output volatage |
each way / (8KW@ 120V) output |
|
Accessory |
|
|
with digital V and A meters, with 250A main switch and branch breakers, rack case packed |
|
|
Approval |
|
|
CE certification |
CE RoHS certification |
|
Packing details |
|
|
packing material |
export cartons and shockproof rack |
|
Packing Weight |
68 kg |
Main functions and features:
1.Intelligent digital voltage meter, can be seen at any time when using the working voltage, current,
2.Convenient lighting and ancillary equipment supply is used.
3.Each separate control, connection is safe and convenient to use.
4.According to user requirements can be designed independently.
Payment and shipping:
Welcome OEM as your own specifications and designs !
Production Flow
Step 1: Wiring the connectors on the rack panels
Step 2: Installing the connector panels on the power racks
Step 3: Production finished
Step 4: Testing the products before delivery
