Eweat DMP20 HiFi Audio ESS9038Q2M DAC with MQA XMOS XU-208 Fully Balanced Decode Music Streamers of DSD512 PCM768 for APP

Eweat DMP20 HiFi Audio ESS9038Q2M DAC with MQA XMOS XU-208 Fully Balanced Decode Music Streamers of DSD512 PCM768 for APP

FOB Reference Price: Get Latest Price

≥1 Pieces

US $258

≥10 Pieces

US $243

≥100 Pieces

US $238

≥300 Pieces

US $232

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

DAC chip:: The ESS9038Q2M chip and VELVET SOUND

Ethernet/ WIFI:: RJ45 1G Ethernet, 802.11 a/b/g/n,2.4G/5.8 Dual Band WIFI

Interface:: Network, USB, SPDIF, SD card, Hard Disk driver, Type-C

Storage:: 2GB DDR4 16GB EMMC

BT Version:: BT V4.1 with aptX HD for 24 Bit/48 kHz high definition audio decoder

Power supply:: 110-120 or 220-240 VAC, 50-60 Hz

Digital Sampling Rates:: 44.1 kHz to 768 kHz, 16 to 32 bit DSD64-DSD512

Analog Outputs:: Balanced XLR, Non-Balanced RCA

Support:: NAS,DLNA,Airplay2,MQA, ROON ready online streaming service

Support format:: DSD, DST, DSF, DFF, DXD, FLAC, APE, WAV, ISO, etc

Quick Details

Brand Name:: Eweat,ODM,OEM

Model Number:: DMP20 Music Streamers

Place of Origin:: Guangdong, China

DAC chip:: The ESS9038Q2M chip and VELVET SOUND

Ethernet/ WIFI:: RJ45 1G Ethernet, 802.11 a/b/g/n,2.4G/5.8 Dual Band WIFI

Interface:: Network, USB, SPDIF, SD card, Hard Disk driver, Type-C

Storage:: 2GB DDR4 16GB EMMC

BT Version:: BT V4.1 with aptX HD for 24 Bit/48 kHz high definition audio decoder

Power supply:: 110-120 or 220-240 VAC, 50-60 Hz

Digital Sampling Rates:: 44.1 kHz to 768 kHz, 16 to 32 bit DSD64-DSD512

Analog Outputs:: Balanced XLR, Non-Balanced RCA

Support:: NAS,DLNA,Airplay2,MQA, ROON ready online streaming service

Support format:: DSD, DST, DSF, DFF, DXD, FLAC, APE, WAV, ISO, etc

Eweat DMP20 HiFi Audio ESS9038Q2M DAC with MQA XMOS XU-208 Fully Balanced Decode Music Streamers of DSD512 PCM768 for APP

Product Description

Overview

Connecting the DMP20 to your wired or wireless home network. Easily stream high resolution

music from on-board music services.

Thanks to the newest ESS9038Q2M VELVET SOUND DAC chips for your choice, native playback up to 32-bit / 768

kHz PCM as well as native DSD up to 512 is achieved effortlessly. It can stream high resolution

music via any network PC, MAC or NAS drive.

DMP20 with its direct file playback capability via its integrated Hard Disk and USB ports for

connecting USB hard discs drives for 32-bit / 768kHz PCM, DSD 512 and ISO playback.

Features

1. Brand new music library management system, which can automatically scan music files to generate albums, and supports self-built albums and self-built album classification;

2. Convenient operation, the graphical interface of the system can be displayed through display devices such as TVs, monitors, etc., which is convenient for intuitive operation;

3. Support mobile phone APP control, you can download the mobile phone APP to connect to the device, and perform operations such as music selection and playback;

4. Support lossless music decoding, support DSD512 (ISO DSF DST DFF) FLAC APE WAV and other lossless music formats, and support PCM768 DXD and other formats;

5. Powerful expansion function, DLNA, Airplay and other streaming media functions;

6. Support external USB interface DAC decoder (only support newer products).

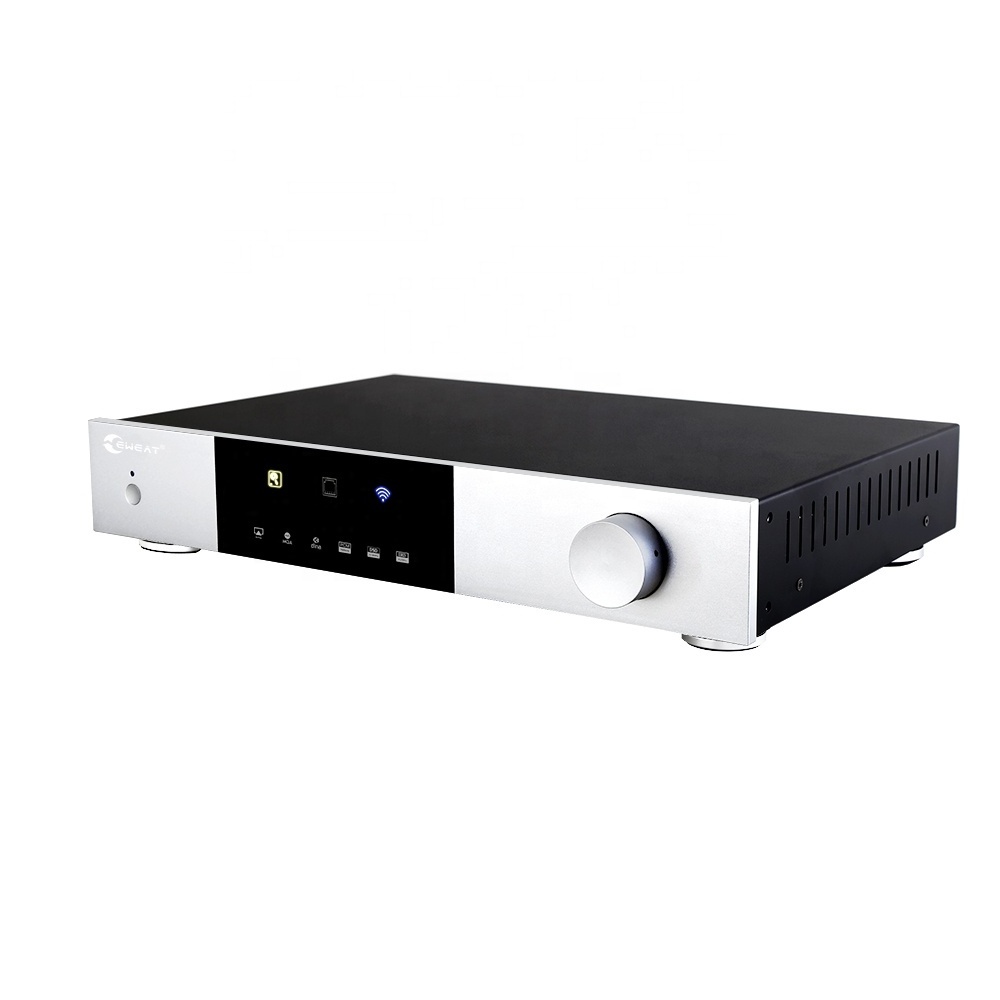

Product picture

Product parameter

Master Clock Jitter	Below measurable levels
Digital Sampling Rates (Fs)	44.1 kHz to 768 kHz
Digital Filter	32-Bit 8x Oversampling Digital Filter
Digital/Analog Converters	2 – 2 channel AK4493EQ for working on true balanced output
BT	BT V4.2with aptX® HD for 24 Bit / 48 kHz high definition audio decoder
Analog Filter	3rd Order Bessel
Analog Outputs	Balanced XLR, Non-Balanced RCA
IR	IR control x1
Communication	Ethernet RJ45 full remote configuration interface
Communication	802.11 a/b/g/n,2.4G/5.8 Dual Band WIFI
Hard Disk Drive	Hard Disk Drive bays x1, up to 16TB
Other connectors	USB3.0 x1,TYPE-C x1
Power Input	Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
AC Power Requirements	78 Watts
Case	Black case with silver aluminum faceplate
Weight	6.5kg
Dimensions	42x28x6cm
Package	Carton size: 48x34x19cm, one piece per carton, 7kg/CTN
AUDIO (LPCM)
Frequency Range	2 Hz – 22 kHz (44.1 kHz)
Amplitude Linearity	0.1 dB (20 Hz – 20 kHz)
Phase Linearity	3 degrees (20 Hz – 20 kHz)
Dynamic Range	125 dB (1 kHz)
Signal-to-Noise Ratio	113 dB (1 kHz)
Channel Separation	107 dB (1 kHz)
Total Harmonic Distortion	0.0004% (1 kHz)
Audio Output Level	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
NETWORK, USB, SD CARD PLAYBACK
Playback Format Supply	.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf
Frequency Range	2 Hz – 125 kHz
Signal System	16, 20, 24, & 32 bit PCM and 1 bit DSD
Sampling Frequency	44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD
Dynamic Range	125 dB
DSD System Clock	Frequency 22.5792 MHz
Signal-to-Noise Ratio	112 dB
Audio Output Level	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Level	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
SPDIF PLAYBACK
Frequency Range	2 Hz – 100 kHz
Signal System	16, 20, and 24 bit
Sampling Frequency	44.1 kHz to 192 kHz PCM
Dynamic Range	123 dB
System Clock	Frequency 22.5792 MH
Signal-to-Noise Ratio	112 dB
Audio Output Levelb	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Levelb	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
