Quick Details
-
use:
-
Dry wet amphibious vacuum cleaner
-
The rated voltage:
-
100/110/120/127/220/230/240V
-
Rated power:
-
1000W-1400W
-
Life:
-
≥500H
-
Max vacuum degree:
-
≥30Kpa
-
Noise:
-
≤98dBA
-
Spark:
-
≤2
-
Class:
-
F/E/A
-
Vibration:
-
≤15 mm/s
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SHOUXIN MOTOR
-

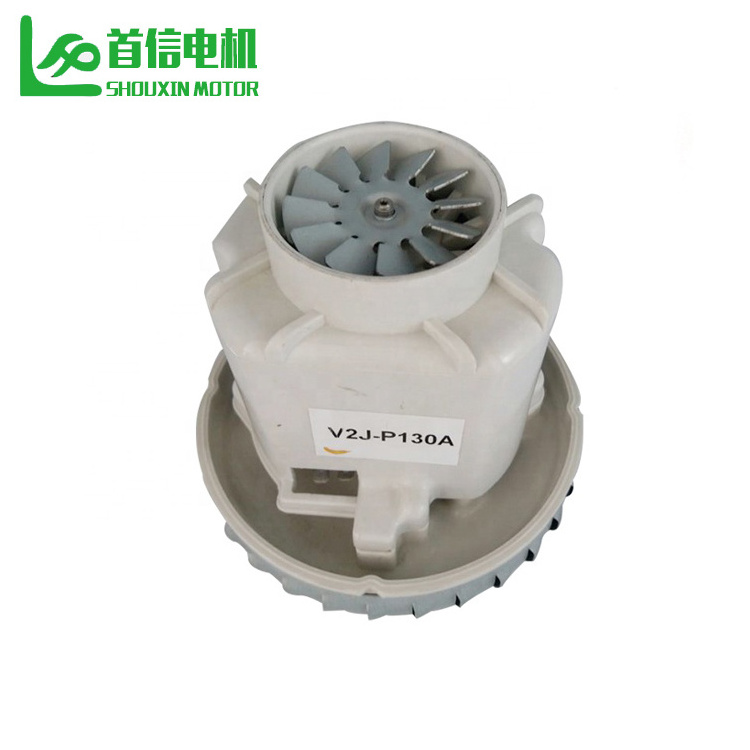

Model Number:
-
V2J-P130A
-
use:
-
Dry wet amphibious vacuum cleaner
-
The rated voltage:
-
100/110/120/127/220/230/240V
-
Rated power:
-
1000W-1400W
-
Life:
-
≥500H
-
Max vacuum degree:
-
≥30Kpa
-
Noise:
-
≤98dBA
-
Spark:
-
≤2
-
Class:
-
F/E/A
-
Vibration:
-
≤15 mm/s
Vacuum Cleaner Motor:
Vacuum cleaner motor is the heart of the vacuum cleaner . Main types of the vacuum cleaner are: dry vacuum cleaner motor, wet and dry vacuum cleaner motor. Vacuum cleaner motor consists of two parts: part of the motor and fan, due to the vacuum cleaner motor speed requirements is very high, general in 20000-30000 turn per minute, so the motor is mainly used is the series excited motor, also known as series excited motor.
The motor is also known as the "motor" the color line is an insulating layer A machine that converts electrical energy into mechanical energy. A large amount of electric energy produced by the generator can be used in the production process by using the electric motor. The structure and the generator are basically the same, but the principle is just the opposite, the motor is energized to the rotor coil to cause movement, and the generator is the use of the rotor in the magnetic field of motion generated current. In order to obtain a strong magnetic field, regardless of motor or generator, to use the electromagnet is appropriate.
|
Rated Voltage(V) |
100/110/120/127/220/230/240 |
|
|
Rated input power(W) |
1200 |
1400 |
|
Max vacuum Degree(Kpa) |
≥18 |
≥19 |
|
Max Airflow(m³/min) |
≥3.2 |
≥3.4 |
|
Max Suction Power(W) |
≥380 |
≥420 |
|
Max Efficiency(%) |
≥35 |
≥35 |
|
Vibration(mm/s) |
≤15 |
≤15 |
|
Noise(dB A) |
≤98 |
≤98 |
|
Life(H) |
≥500 |
≥500 |
|
Spark |
≤2 |
≤2 |
|
Class |
E/B/F |
E/B/F |
