Closed cell polyurethane thermal foam insulation machine spray rig pu foam sprayer

Closed cell polyurethane thermal foam insulation machine spray rig pu foam sprayer

Closed cell polyurethane thermal foam insulation machine spray rig pu foam spayer is can be used for various construction environment with spraying two-component materials spray(optional) like polyurethane foaming materials, widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal,roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and so on.

Here are our recommended reasons:

1. In cold winter, the machine can pre heat the foam chemicals rapidly to help save time and improve spraying effect and foaming effect. Equipped with a reflux valve, it is very convenient for the operator to cycle the chemicals.

2. The heating hose is the same as the Graco machine, with internal heating and low voltage current, to protect the operator's personal safety to the greatest extent.

3. Fahrenheit and Celsius display, convenient for users in different regions to view habits.

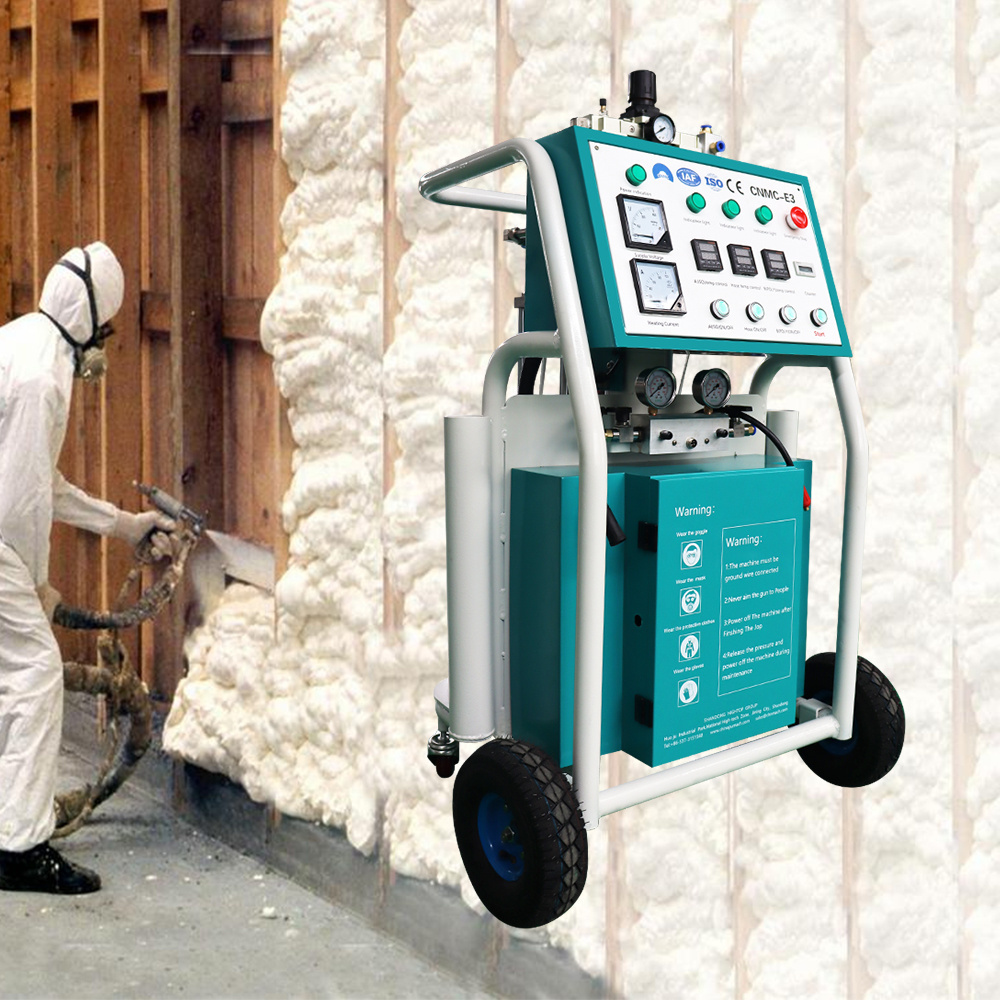

Spray Foam Insulation Machine CNMC-E3 Features :

1. The use of a large power cylinder makes the spraying more powerful and the atomization effect better.
2. The heated hose of the new Upgrade machine CNMC-E3 heats up faster. In cold winter, the machine can pre heat
the foam chemicals rapidly to help save time and improve spraying effect and foaming effect. Equipped with a reflux
valve, it is very convenient for the operator to cycle the chemicals.
3. The machine contains the electric leakage protector to prevent machine leakage and human electric shock, and
improve the safety performance of the machine.

4. Adding Voltmeter and Ammeter , so the voltage and current conditions inside the machine can be detected.
5. Appearance design conforms to the principle of artificial mechanics, moving the machine is easier.
6. The heated hose is with internal heating and low voltage current , to protect the operator's personal safety to
the greatest extent.
7. The quick opening door is installed ,Machine maintenance and repair and inspection will be more convenient

Spray Foam Insulation Machine CNMC-E3 Details:

Parameter of Closed cell polyurethane thermal foam insulation machine spray rig pu foam spayer

Closed cell polyurethane thermal foam insulation machine spray rig pu foam spayerClosed cell polyurethane thermal foam insulation machine spray rig pu foam spayer

Advantages :

1 . Primary heating system:

It consists of two separate independent block heaters with no seals.

2. Proportioning pumps:

The system is including two positive displacement piston pumps, driven by a pneumatic motor.

3. Recirculation system:

Recirculation of the two components allows a faster achievement of the preset temperature at the heaters before starting to spray and during temporary shutdowns.
4. Hose heating system:

The hose heating system is designed with 1000W each 15m that allows the heating of up to 90m.

Insulation foam spray:

Polyureathane foam injection:
