Quick Details
-
Application:
-
Lithium battery raw materials, Electronic
-
Width:
-
customization
-
Grade:
-
Copper Foil
-
Model Number:
-
c17200 C17300 C17500
-
Brand Name:
-
Meide
-
Place of Origin:
-
Shandong, China
-
Product Name:
-
Pure Copper foil
-
Keyword:
-
Copper foil
-
MOQ:
-
100kg
-
Shape:
-

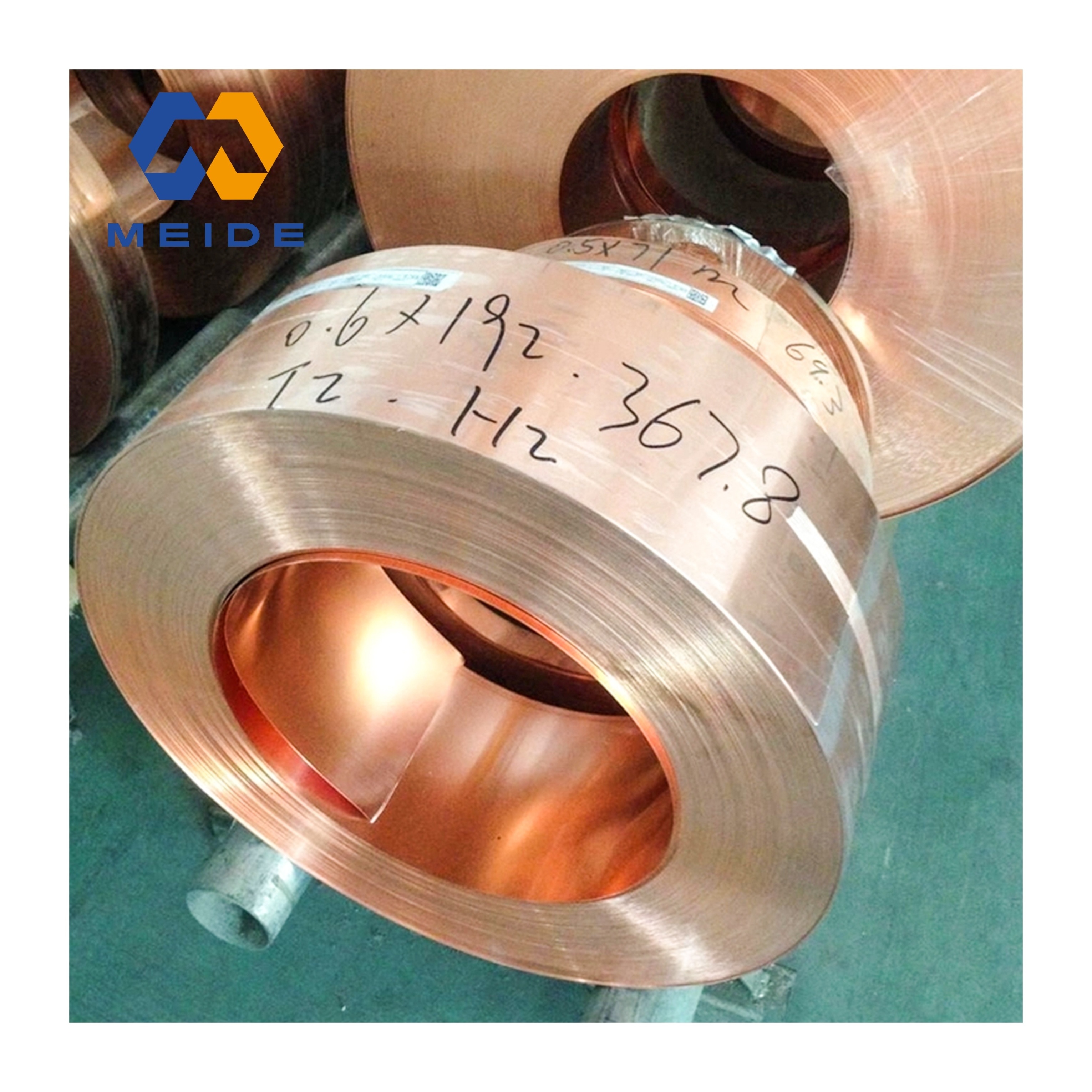

Strip Coil Roll
-
Surface:
-
Bright
-
Type:
-
Double Conductive Copper Foil Tape
-
Price Term:
-
EXW FOB CFR CIF
Quick Details
-
Material:
-
Brass
-
Cu (Min):
-
99.90%
-
Alloy Or Not:
-
Non-Alloy
-
Application:
-
Lithium battery raw materials, Electronic
-
Width:
-
customization
-
Grade:
-
Copper Foil
-
Model Number:
-
c17200 C17300 C17500
-
Brand Name:
-
Meide
-
Place of Origin:
-
Shandong, China
-
Product Name:
-
Pure Copper foil
-
Keyword:
-
Copper foil
-
MOQ:
-
100kg
-
Shape:
-
Strip Coil Roll
-
Surface:
-
Bright
-
Type:
-
Double Conductive Copper Foil Tape
-
Price Term:
-
EXW FOB CFR CIF
Product Description
|
Copper foil for battery anode substrate
|
|
|
||
|
Item
|
|
Data
|
||
|
width (mm)
|
|
200mm
|
||
|
Thickness (um)
|
|
9
|
||
|
areal density (g/m2)
|
|
85-90
|
||
|
Purity(%) More than 99.9%
|
|
Cu ≥99.9%
|
||
|
|
|
Fe < 0.0010%
|
||
|
|
|
Bi < 0.00020%
|
||
|
|
|
Pb < 0.0005%
|
||
|
Tensile strength (MPa)
|
|
≥294
|
||
|
Normal elongation(%)
|
|
2.5
|
||
|
High temperature Tensile strength180℃(MPa)
|
|
≥147
|
||
|
High temperature elongation180℃(%)
|
|
2
|
||
|
Anti oxidization(180℃ Heating 1h)
|
|
No oxidation of points on the surface,The color does not change,Copper
foil without fracture |
||
|
Surface roughness(um)Rz
|
Drum side(um)
|
Less than 0.3
|
||
|
|
Matte side(um)
|
Less than 3.0
|
||
|
Surface tension(dyne/cm)
|
Drum side
|
62
|
||
|
|
Matte side
|
62
|
||
|
Coating performance
|
|
Cu foil with uniform tension on both sides, slurry coating uniformity
|
||
Technical characteristics
1. Fully interconnected, open, spherical pores, three-dimensional network structure
2. Good coating properties, easy to cut
3. Ultra high conductivity, current collection and maintenance
4. It can significantly increase the positive electrode active substance
5. Good corrosiveness with electrolyte
6. Improve product cooling efficiency
Suitable for lithium-ion batteries, capacitor collectors, or other frequently charged batteries
Not suitable for long-term storage in high temperature and humidity environments
Chemical composition
|
Grade
|
Chemical composition (mass fraction) (%)
|
|
|
|
|
||||
|
|
Cu
|
Pb
|
Fe
|
Zn
|
Other elements
|
||||
|
C21000
|
94.0-96.0
|
0.03
|
0.05
|
Margin
|
-
|
||||
|
C22000
|
89.0-91.0
|
0.05
|
0.05
|
Margin
|
-
|
||||
|
C22600
|
86.0-89.0
|
0.05
|
0.05
|
Margin
|
-
|
||||
|
C23000
|
84.0-86.0
|
0.05
|
0.05
|
Margin
|
-
|
||||
|
C23030
|
83.5-85.5
|
0.05
|
0.05
|
Margin
|
Si0.20-0.40
|
||||
|
C23400
|
81.0-84.0
|
0.05
|
0.05
|
Margin
|
-
|
||||
|
C24000
|
78.5-81.5
|
0.05
|
0.05
|
Margin
|
-
|
||||
|
C24080
|
78.0-82.0
|
0.20
|
-
|
Margin
|
Al0.1
|
||||
|
C26000
|
68.5-71.5
|
0.07
|
0.05
|
Margin
|
-
|
||||
|
C26130
|
68.5-71.5
|
0.05
|
0.05
|
Margin
|
As0.02-0.08
|
||||
|
C26200
|
67.0-70.0
|
0.07
|
0.05
|
Margin
|
-
|
||||
|
C26800
|
64.0-68.5
|
0.15
|
0.05
|
Margin
|
-
|
||||
|
C27000
|
63.0-68.5
|
0.10
|
0.07
|
Margin
|
-
|
||||
|
C27200
|
62.0-65.0
|
0.07
|
0.07
|
Margin
|
-
|
||||
|
C27400
|
61.0-64.0
|
0.10
|
0.05
|
Margin
|
-
|
||||
|
C28000
|
59.0-63.0
|
0.30
|
0.07
|
Margin
|
-
|
||||
|
C31200
|
87.5-90.5
|
0.7-1.2
|
0.10
|
Margin
|
Ni0.25
|
||||
|
C31400
|
87.5-90.5
|
1.3-2.5
|
0.10
|
Margin
|
Ni0.7
|
||||
|
C31600
|
87.5-90.5
|
1.3-2.5
|
0.10
|
Margin
|
Ni0.7-1.2,P0.04-0.10
|
||||
|
C32000
|
83.5-86.5
|
1.5-2.2
|
0.10
|
Margin
|
Ni0.25
|
||||
|
C33000
|
65.0-68.0
|
0.25-0.7
|
0.07
|
Margin
|
-
|
||||
|
C33200
|
65.0-68.0
|
1.5-2.5
|
0.07
|
Margin
|
-
|
||||
|
C33500
|
62.0-65.0
|
0.25-0.7
|
0.15
|
Margin
|
-
|
||||
Copper foil has the characteristics of symmetrical structure, metal density close to the theoretical density of copper, very low surface profile, high elongation and tensile strength. It has the characteristics of high elongation and tensile strength. At the same time, as the negative collector fluid of lithium battery, double-sided photoelectrolysis copper foil has good thermal and cold expansion resistance, which can obviously extend the battery life. It can be widely used in new energy vehicles, 3C industry represented by smart phones, laptop computers, ESS energy storage system, aerospace and other product batteries. Copper foil has the characteristics of symmetrical structure, metal density close to the theoretical density of copper, very low surface profile, high elongation and tensile strength. It has the characteristics of high elongation and tensile strength. At the same time, as the negative collector fluid of lithium battery, double-sided photoelectrolysis copper foil has good thermal and cold expansion resistance, which can obviously extend the battery life. It can be widely used in new energy vehicles, 3C industry represented by smart phones, laptop computers, ESS energy storage system, aerospace and other product batteries.
|
Compare content
|
Rolled Copper Foil
|
Electrolytic copper foil
|
|
Process
|
Repeated rolling processing and surface treatment of copper
ingots and copper strips |
Electrolysis of copper sulfate solution, surface treatment
|
|
technological process
|
Complex process and long
process |
The process is relatively
complex |
|
Equipment accuracy requirements
|
High
|
higher
|
|
cost of production
|
High
|
low
|
|
application
|
Flexible circuit board, lithium-ion battery negative electrode
Carrier Electromagnetic shielding materials and high-frequency electronic and electrical products |
Printed circuit boards (PCBs),
negative electrode carriers for lithium-ion batteries Electromagnetic shielding materials and high-frequency electronic and electrical products |
|
Main production and consumption areas
|
China, Japan, South Korea,
United States |
Japan, United States, China
|
|
price
|
Relatively high
|
relatively low
|
|
purity
|
≥99%Cu
|
≥98%Cu
|
|
strength
|
High
|
higher
|
|
toughness
|
good
|
preferably
|
|
Bending resistance
|
Good (2-3 times the same
thickness as electrolytic copper foil) |
higher
|
|
Elastic coefficient
|
High
|
higher
|
|
Densification
|
High
|
higher
|
|
Crystalline
|
Rolling flake crystallization
|
Fine needle like crystal
|
|
thickness
|
Limited thickness limit
|
Very thin
|
|
width
|
Limited by rolling mill
(generally ≤ 600mm) |
adjustable
|
|
surface
|
smooth
|
rough
|
|
Appearance consistency
|
Good
|
range
|
FAQ
1.Who are we?
We are based in Shandong, China, start from 2021,sell to North America(20.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),South America(5.00%). There are total about 11-50 people in our office.
2. How do you control the quality?
We have professional inspectors to analyze chemical composition of raw materials and test the finished products strictly according to standard stipulated in the contract. In this process, Internal and external surfaces, two ends appearance, bending degree, fixed length, outer diameter and wall thickness dimension etc will be checked one by one. You can be assured that all the products you get from us are reliable.
3.Can you accept customization?
Yes. If you have special requirements on products or packages, we can do customization for you.
4. Why should you buy from us not from other suppliers?
We are a factory setted up more than 20 years and export more than 15 years. we have ISO 9001 certificate. Professional team to create accurate data.
5.What services can we provide?
Accepted Delivery Terms: FOB,FCA,DDP,DDU； Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken:English,Chinese
6.How can we get your price ?
We need below information to quote for you:
Product Name
Standard
Material Grade (Chemical Composition)
Dimension
Quantity
The Drawing for Special Parts
We are based in Shandong, China, start from 2021,sell to North America(20.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),South America(5.00%). There are total about 11-50 people in our office.
2. How do you control the quality?
We have professional inspectors to analyze chemical composition of raw materials and test the finished products strictly according to standard stipulated in the contract. In this process, Internal and external surfaces, two ends appearance, bending degree, fixed length, outer diameter and wall thickness dimension etc will be checked one by one. You can be assured that all the products you get from us are reliable.
3.Can you accept customization?
Yes. If you have special requirements on products or packages, we can do customization for you.
4. Why should you buy from us not from other suppliers?
We are a factory setted up more than 20 years and export more than 15 years. we have ISO 9001 certificate. Professional team to create accurate data.
5.What services can we provide?
Accepted Delivery Terms: FOB,FCA,DDP,DDU； Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken:English,Chinese
6.How can we get your price ?
We need below information to quote for you:
Product Name
Standard
Material Grade (Chemical Composition)
Dimension
Quantity
The Drawing for Special Parts
