Quick Details
-
Model Number:
-
CWX-25S
-
Brand Name:
-
CWX
-
Product name:
-
motorized ball valve
-
Model:
-
CWX-25S electric ball valve
-
Body material:
-
stainless steel,brass
-
Connection:
-
BSP&NPT
-
Valve size:
-
1/4'',3/8'',1/2'',3/4'',1''
-
Working voltage:
-
DC3-6v,DC12v,DC24v,ADC9-24v,AC110v,AC220v
-
Working pressure:
-
0-1.0MPa
-
Open/close time:
-
7sec
-
Output torque:
-
2.5Nm
Quick Details
-
Port Size:
-
1/4'',3/8'',1/2'',3/4'',1''
-
Warranty:
-
1 year
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
CWX-25S
-
Brand Name:
-
CWX
-
Product name:
-
motorized ball valve
-
Model:
-
CWX-25S electric ball valve
-
Body material:
-
stainless steel,brass
-
Connection:
-
BSP&NPT
-
Valve size:
-
1/4'',3/8'',1/2'',3/4'',1''
-
Working voltage:
-
DC3-6v,DC12v,DC24v,ADC9-24v,AC110v,AC220v
-
Working pressure:
-
0-1.0MPa
-
Open/close time:
-
7sec
-
Output torque:
-
2.5Nm

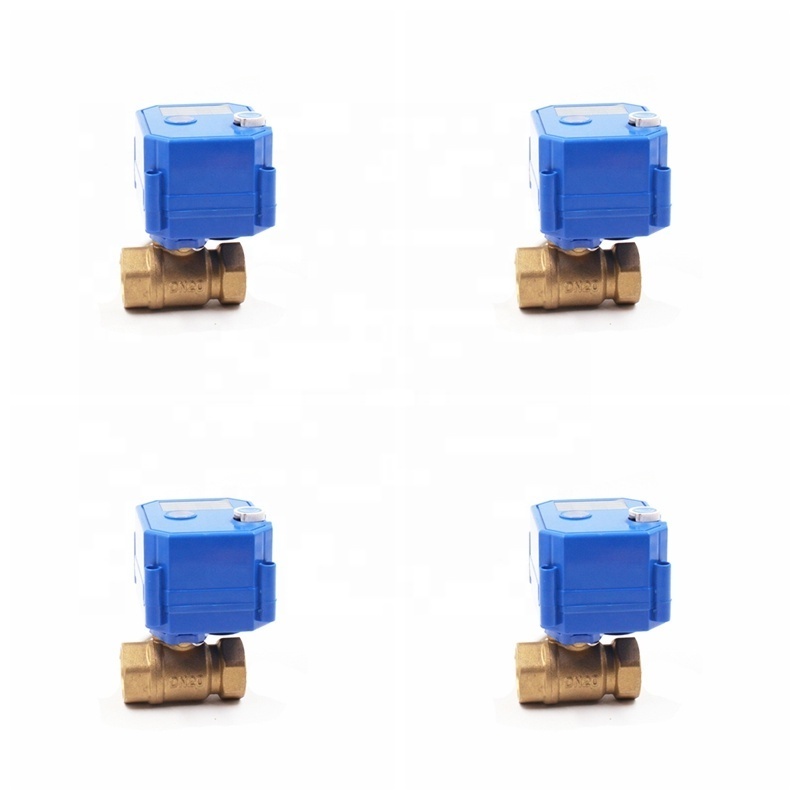

CWX-25S motorized ball valve 1/2" 3/4" 1" brass BSP NPT electric ball valve 5v 12v 24v 220v motorized actuator
1.POM material gear box ;
2.Manual Override, the valve can be operated when power failure;
3.Min dimension and position indicator
4.good sealing performance, IP65 enclosure
1.Heat energy meters, fire work, save water system
2.Auto control system, industrial mini auto control equipment
3.Water saving equipment, drinking water equipment
4.Air-conditioning fan coin(HVAC)
| Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode |
| CWX-25S |
DC3-6V
DC12V A/DC9-24V AC220V AC85-265V |
Max80mA | Max2.5NM | <8s | CR01 CR02 CR03 CR04 CR05 |
| Working pressure | Power | Medium temperature | Size | IP Gard | Special function |
| Max1.0Mpa | <2W | 0-90℃ | DN8-32 Two-way DN8-20 Three-way | IP65 | Wireless switch control (within 200 meters) |
| Brass | Connection | Sizes | d | L | H |
| Both female thread Full-port | DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
| Vertical Three-way | DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
Tianjin Tianfei High-Tech Valve Co.,Ltd is a professional manufacturer of motorized valve, smart valve and water leakage alarm system for more than 14 years
Equipped with a professional R & D team, we have won a number of technology patents and certificates
With reliable quality , competitive price and excellent service , we have earned a good reputation among the customers from all over the world
Also OEM is available according to your requirements.
Main product:
Electric ball valve,motorized ball valve,motorized water control valve,electric actuator control valve,automatic water valve,motor operated ball valve,12v electric valve,mini electric actuator,cwx mini motorized valve,2 way motorized valve,electric butterfly valve,electric water shut off valve,motorized control valve,motorized butterfly valve,cwx 15q motorized ball valve,brass motorized ball valve,automatic water shut off valve,zigbee smart valve water,Wifi smart water valve,water leak detector,water leak alarm,water leak detection device,water leak valve
