Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2024*1337*1480mm
-
Application:
-
Woodworking
-
Weight (KG):
-
1000 KG
-
Power (kW):
-
8.25KW
-
Max.Working Width(mm):
-
450mm
-
Max.Working Height(mm):
-
85m
-
Product name:
-
Single Rip Saw
-
Model:
-
MJ154
-
Function:
-
trim edge straight,separate wood board
-
Max cutting height (90°):
-
85 mm
-
Main saw motor power:
-
8.25kw
-
Minimum cutting length:
-
10mm
-
Spindle Speed:
-
3000rpm
-
Feeding speed:
-
12-23m/min
-
Dust inlet diameter:
-
100mm/150mm
-
Machine weight:
-
1000KGS
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QDZD
-
Usage:
-
Woodwokring
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2024*1337*1480mm
-
Application:
-
Woodworking
-
Weight (KG):
-
1000 KG
-
Power (kW):
-
8.25KW
-
Max.Working Width(mm):
-
450mm
-
Max.Working Height(mm):
-
85m
-
Product name:
-
Single Rip Saw
-
Model:
-
MJ154
-
Function:
-
trim edge straight,separate wood board
-
Max cutting height (90°):
-
85 mm
-
Main saw motor power:
-
8.25kw
-
Minimum cutting length:
-
10mm
-
Spindle Speed:
-
3000rpm
-
Feeding speed:
-
12-23m/min
-
Dust inlet diameter:
-
100mm/150mm
-
Machine weight:
-
1000KGS

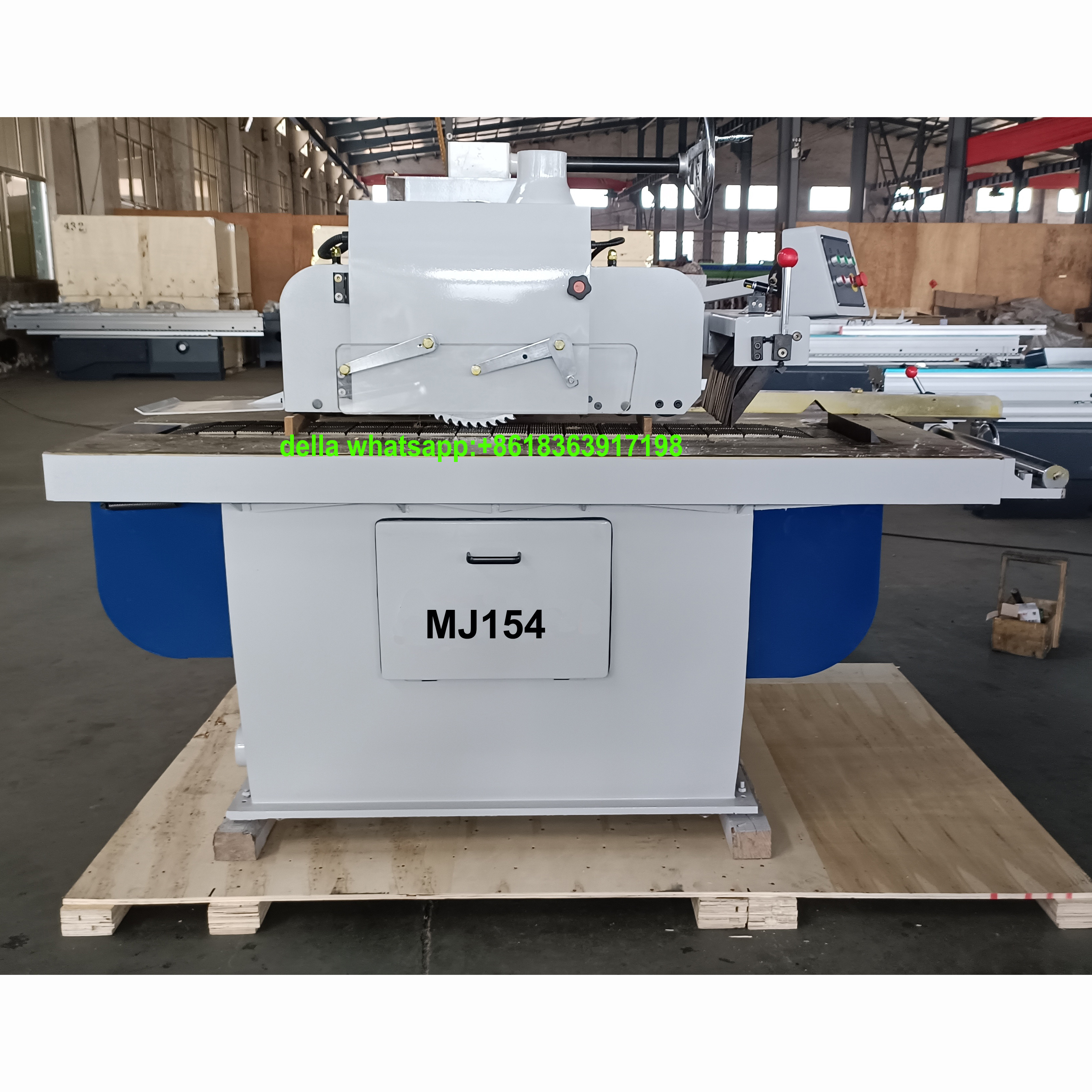

MJ154 Automatic Straight Line Rip Saw Machine Integrated Dust Collector With Laser guide
|
Name
|
Parameter
|
|
Maximum saw thickness
|
85mm
|
|
Minimum saw length
|
120mm
|
|
Distance between saw blade & bracket
|
460mm
|
|
Mainshaft speed
|
3000rpm
|
|
Feeding speed
|
12-30m/min
|
|
Saw blade inner diameter
|
50.8mm
|
|
Saw blade specification
|
￠355mm
|
|
Machine total power
|
8.25KW
|
|
Dust collector inlet diameter
|
φ100mm/φ150mm
|
|
Size within the container
|
1750×1410×1300mm
|
|
Machine weight
|
1200KGS
|
1.The combination of organic oil and wood bran on the chain plate will cause the running track to bulge, which will seriously affect the processing accuracy. Our company's patent is: using the wind of the large motor cooling fan to induce the wind to the bottom of the crawler, blowing away the wood bran on the chain board, so that the crawler can run smoothly for a long time and ensure high precision.
2.After the belt runs for a period of time, the temperature of the belt increases, the belt grows, the transmission power decreases, and the processing accuracy and processing efficiency also decrease. Our company's newly developed MJ163 lower shaft single blade saw cancels all belt transfers and adopts direct connection.
3. A large amount of wood ash will be produced when the saw enters and exits the knife, which affects the factory environment and the health of workers. Our company's MJ163 lower shaft single-blade saw table has holes on both sides of the saw blade to introduce the air outlet of the vacuum cleaner to absorb the raised dust.
4.During the forging, quenching and tempering, high frequency and fine grinding, the spindle of our company is injected with oil to cool down and lubricate the spindle barrel through the high pressure of the oil pump, and the spindle is guaranteed for five years. The surface of the guide rail is nitrided and wear-resistant. The frame processing and welding adopts the tenon and mortise structure to form a whole.
Infrered：
Selected for infrared calibrationdevice, the workpiece: calibrationcan be real-time monitoring.
Strong power motor:
Main spindle made from special material and the motor adopt unitarily design, guarantees highaccuracy and strong power.
Rebouce Device:
Anti-kickback device on working platform, to avoid working pieces'kickback and ensure safety cutting
Feeding:
Conveyor chain blocks made by special materialswith tooth surface for better friction and resistance,stock feeding more smooth
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
