Quick Details
-
Weight:
-
23 KG
-
Dimension(L*W*H):
-
400*310*310mm
-
Power supply:
-
220V 50/60Hz
-
Cutting length(mm):
-
0.1-99999.9mm
-
Cutting speed:
-
30-120pcs/min
-
Feeding width:
-
1-100mm
-
Cutting precision:
-
0.1mm
-
Feeding motor:
-
stepper motor
-
Cutter motor:
-
AC motor
-
Cutter material:
-
High-speed steel
-
After Warranty Service:
-
Video technical support
-
Whatsapp:
-
+8615711828157
Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haidike
-
Weight:
-
23 KG
-
Dimension(L*W*H):
-
400*310*310mm
-
Power supply:
-
220V 50/60Hz
-
Cutting length(mm):
-
0.1-99999.9mm
-
Cutting speed:
-
30-120pcs/min
-
Feeding width:
-
1-100mm
-
Cutting precision:
-
0.1mm
-
Feeding motor:
-
stepper motor
-
Cutter motor:
-
AC motor
-
Cutter material:
-
High-speed steel
-
After Warranty Service:
-
Video technical support
-
Whatsapp:
-
+8615711828157
Products Description

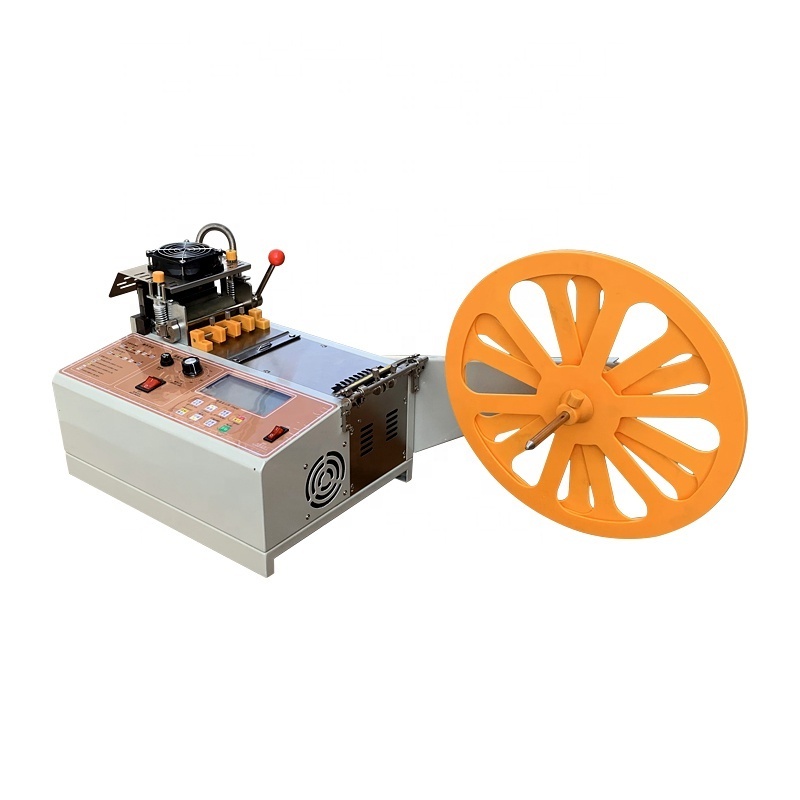

Electric Multi functional Zipper Webbing Elastic Ribbon Tape Hot And Cold Cutting Machine With Factory Price
|
Product name
|
Hot and cold tape cutting machine
|
|
|
|
|||
|
Product model
|
HDK-100
|
|
|
|
|||
|
Power supply
|
220V 50/60Hz
|
|
|
|
|||
|
Cutting length(mm)
|
0.1-99999.9mm
|
|
|
|
|||
|
Cutting speed
|
30-120pcs/min
|
|
|
|
|||
|
Feeding width
|
1-100mm
|
|
|
|
|||
|
Cutting precision
|
0.1mm
|
|
|
|
|||
|
Weight
|
23kg
|
|
|
|
|||
|
Size (L×W×H)
|
400*310*310(mm)
|
|
|
|
|||
|
Feeding motor
|
Stepper motor
|
|
|
|
|||
|
Cutter motor
|
AC motor
|
|
|
|
|||
|
Cutter material
|
High-speed steel
|
|
|
|
|||
Features:
1. Cold and eager cutting: you can cut zippers, Velcro, plastic hose, paper, Thin wires, ear ropes, cuff straps, nylon wire and
other materials. If the ironing effect is not high, you can also cut elastic tape, webbing, round flat rope and other materials.
2. Single hot cut: can cut helmet webbing, elastic band, nylon rope, round flat rope, braid The material with higher requirement
for edge ironing effect, such as woven mesh tube, makes the sealing edge effect more beautiful.
other materials. If the ironing effect is not high, you can also cut elastic tape, webbing, round flat rope and other materials.
2. Single hot cut: can cut helmet webbing, elastic band, nylon rope, round flat rope, braid The material with higher requirement
for edge ironing effect, such as woven mesh tube, makes the sealing edge effect more beautiful.
Product principle:
1. Using microcomputer control, the length, speed, quantity and temperature of the ironing mouth can be adjusted arbitrarily. 2.
Wide application range, all kinds of materials such as ropes, belts, wires, casings can be cut. 3. According to customer needs,
flat cut, bevel cut, parallelogram, trapezoid. Various shapes and styles such as arrows can be done in one machine, and the angle
of the cutter can be adjusted arbitrarily. 4. The integration of cold and heat can realize simultaneous cutting of multiple
materials, doubling the efficiency. 5. Equipped with automatic alarm, fast sensing speed, automatic shutdown without material,
saving material. 6. The operation is simple, instead of manual labor, one machine can hold 3 to 5 people.
Wide application range, all kinds of materials such as ropes, belts, wires, casings can be cut. 3. According to customer needs,
flat cut, bevel cut, parallelogram, trapezoid. Various shapes and styles such as arrows can be done in one machine, and the angle
of the cutter can be adjusted arbitrarily. 4. The integration of cold and heat can realize simultaneous cutting of multiple
materials, doubling the efficiency. 5. Equipped with automatic alarm, fast sensing speed, automatic shutdown without material,
saving material. 6. The operation is simple, instead of manual labor, one machine can hold 3 to 5 people.
Material Application
Suitable for cutting various PET protective films, reflective films, OPP films, PVC films, PE electrostatic films, ITO films,
plastic films, heat shrinkable films, hot melt adhesive films, thermoplastic films, thermal transfer films, release films,
non-woven fabrics, flocked fabrics, knitted fabrics, non-woven, abrasive gauze, leather, laundry pieces, self-adhesive paper,
insulating paper, release paper, highland barley paper, toilet paper, wrapping paper, roll paper, double-sided tape, copper foil,
aluminum foil, tin paper, EVA foam, pearl cotton and other roll materials.
plastic films, heat shrinkable films, hot melt adhesive films, thermoplastic films, thermal transfer films, release films,
non-woven fabrics, flocked fabrics, knitted fabrics, non-woven, abrasive gauze, leather, laundry pieces, self-adhesive paper,
insulating paper, release paper, highland barley paper, toilet paper, wrapping paper, roll paper, double-sided tape, copper foil,
aluminum foil, tin paper, EVA foam, pearl cotton and other roll materials.
