Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Airwoods / Benclimate / Holtop
-
Dimension(L*W*H):
-
customized size
-
Weight (KG):
-
1500 KG
-
Cooling capacity range:
-
27.4~605.1Kw
-
Heating capacity range:
-
30.7~663.9Kw
-
Humidifier type:
-
Wet film/dry steam/double gasified/electrode/electricity heating
-
Filter class:
-
G4+F7+H10+H13
-
Optional control:
-
PLC/DDC (with actuator and valves)
-
Fan type:
-
direct driven/belt driven/AC/EC plug fan
-
Insulation thickness:
-
25/50mm
-
Air to air heat recovery device:
-
Sensible/Enthaply heat wheel
-
products:
-
AHU with DX coil
Quick Details
-
Type:
-
Air Handling Unit
-
Mounting:
-
Floor Standing
-
Airflow:
-
4000m³/h
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Airwoods / Benclimate / Holtop
-
Dimension(L*W*H):
-
customized size
-
Weight (KG):
-
1500 KG
-
Cooling capacity range:
-
27.4~605.1Kw
-
Heating capacity range:
-
30.7~663.9Kw
-
Humidifier type:
-
Wet film/dry steam/double gasified/electrode/electricity heating
-
Filter class:
-
G4+F7+H10+H13
-
Optional control:
-
PLC/DDC (with actuator and valves)
-
Fan type:
-
direct driven/belt driven/AC/EC plug fan
-
Insulation thickness:
-
25/50mm
-
Air to air heat recovery device:
-
Sensible/Enthaply heat wheel
-
products:
-
AHU with DX coil
We are BAQ (Building Air Quality)Integrated Solutioner Specialist
Mainly cover below sectors:
Turn-Key Engineering Project
Building HVAC solution (residential & commercial)
Manufacturing Process HVAC Solution
Clean Room Solution (pharmaceutical, electric, food process, laboratory, etc.)
VOCs Solution (volatile organic compounds)
Modern Agriculture (Mushroom, Hatchery, etc.)

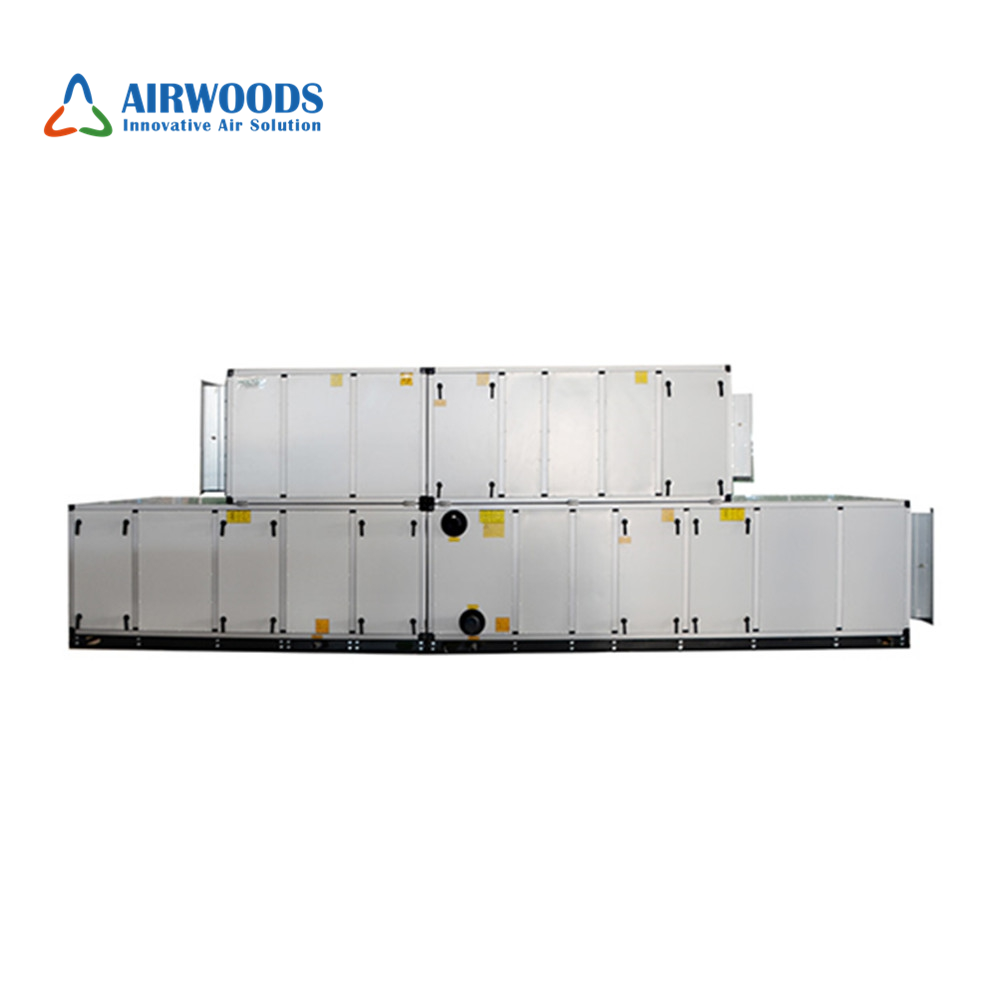

Air Handling Units AHU
Working principle:
-Both supply fan and exhaust fan are built inside to bring in fresh air and exhaust out the stale indoor air as well, thus to keep indoor space in natural comfort.
- Built-in heat exchanger (rotary heat exchanger or plate heat exchanger) transfers energy contained in the outgoing indoor air to the coming fresh air, thus fresh air is precooled or preheated.
-Various functional sections such as filter section, cooling/heating section, humidifying section etc. can be combined together to meet different air treatment requirements.
Main Combination:
cooling air handling unitfunction air handling unit
Different type of heat exchangers for option
FAN SECTION
We offer different types of fans such as direct driven centrifugal fan, belt driven DIDW forward centrifugal fan, and belt driven DIDW backward centrifugal fan etc..
Air filter
In order to ensure heat exchanging efficiency and cleanness, combination of G3 coarse filter and F5 medium filter is selected as standard configuration in HJK AHU.
What we can do for you?
1) We produce high quality AHU based on clients' need and help clients doing project design.
2) We offer a package(turn-key) service including engineering, design, installation, aftersale service,etc.
3) We are especially professionl and strong in cleanroom HVAC engineering.
What kind of HVAC job that we can do?
1) Medical, Pharmaceutical, Hygienic, Food, Eectronic, Textile, Tobacco Industry, Hotels, Office, Sports Center, Exhibition center, etc.
