GXPRECISION STS Keypad Prepaid Electricity Meter
GXPRECISION STS Keypad Prepaid Electricity Meter
GXPRECISION STS Keypad Prepaid Electricity Meter
GXPRECISION STS Keypad Prepaid Electricity Meter
GXPRECISION STS Keypad Prepaid Electricity Meter
GXPRECISION STS Keypad Prepaid Electricity Meter
GXPRECISION STS Keypad Prepaid Electricity Meter
GXPRECISION STS Keypad Prepaid Electricity Meter

GXPRECISION STS Keypad Prepaid Electricity Meter

FOB Reference Price: Get Latest Price
≥2 Pieces
US $25
≥50 Pieces
US $23
≥100 Pieces
US $20
≥200 Pieces
US $18.75
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
GXPRECISION
Model Number:
DDSY6866
Accuracy Class:
1.0
Output Voltage:
230V
Operating Temperature:
-25~+60
Dimensions:
210*130*50mm
Brand:
GXPRECISION
Type:
STS Prepayment Meter
Current:
5-60A
Certificate:
ISO9001, IEC62055 ,IEC62053
Name:
Keypad meter
Material:
High class component and ABS BPT cover base
Communication:
Token code, MCU by RF, RS485,wireless
Frequency:
50HZ
Service:
OEM/ODM

Quick Details

Phase:
Single Phase
Measuring Energy Range:
0-999999.99kWh
Place of Origin:
Zhejiang, China
Brand Name:
GXPRECISION
Model Number:
DDSY6866
Accuracy Class:
1.0
Output Voltage:
230V
Operating Temperature:
-25~+60
Dimensions:
210*130*50mm
Brand:
GXPRECISION
Type:
STS Prepayment Meter
Current:
5-60A
Certificate:
ISO9001, IEC62055 ,IEC62053
Name:
Keypad meter
Material:
High class component and ABS BPT cover base
Communication:
Token code, MCU by RF, RS485,wireless
Frequency:
50HZ
Service:
OEM/ODM
Product Description

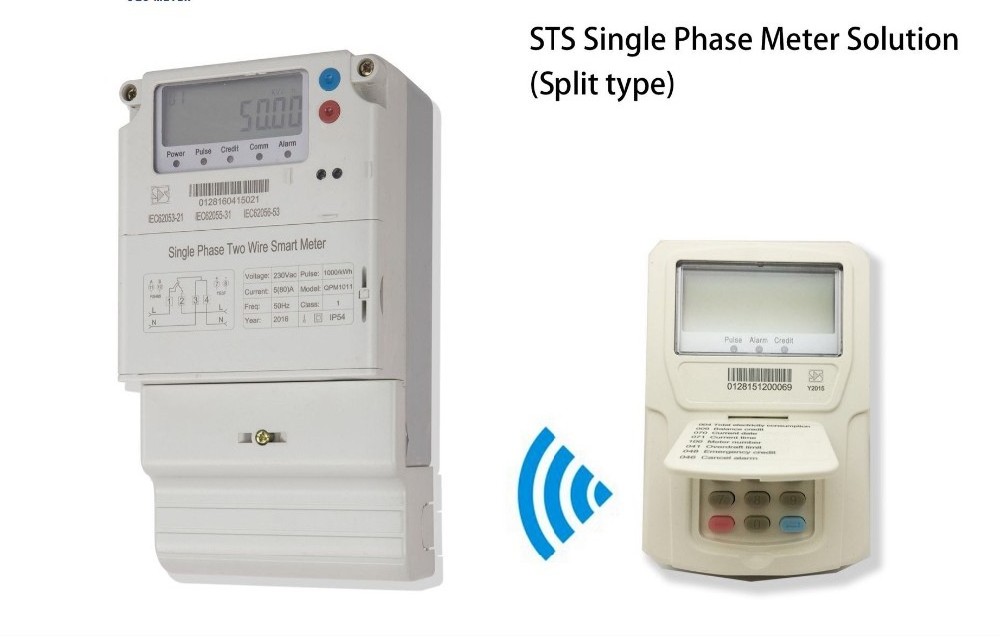

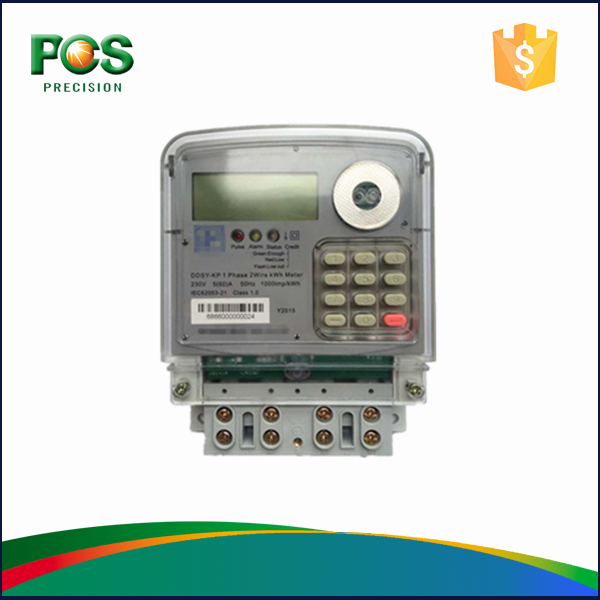

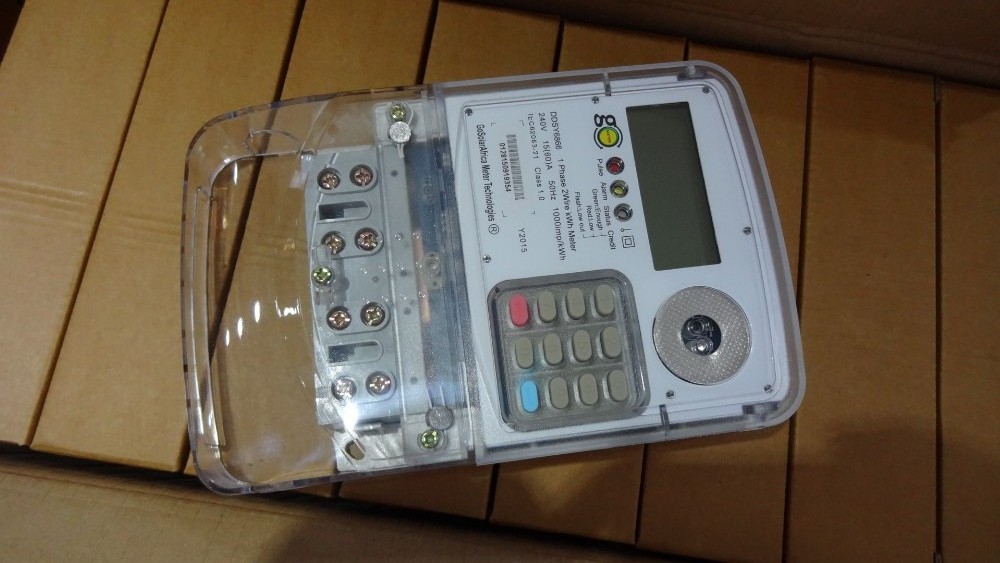

STS Keypad Prepayment Electricity Meter

Single phase kWh meter DDSY6866 is a new type of prepayment meter. Customer purchases energy from the vending network to get a serial number (named as “TOKEN”), and then use the keypad of meter to enter the TOKEN.

The credit data will be entered into the meter after the TOKEN being accepted. The TOKEN contains 20 digits and is encrypted. For the purchasing method reason, the meter named as “Keypad meter”.

Features:

1. Measure active energy. 2. Unidirectional or Bi-directional Measurement. 3. 6+2 LCD display with backlight. 4. 20-digit transmission as a token, customer purchases energy before consumption. 5. Low energy alarm and low energy trip to remind the customer to purchase energy. 6. With optical communication port for reading meter data and setting parameters. 7. Overload protect. 8. Open terminal cover and base cover detection alarm. 9. Meter Information supply short code Enquiry. 10. Multi-Level alarm value enable setup.
Technical parameters:
Rated current
5(60)A, 20(80)A, 30(100)A
Accuracy class
1.0
Life span
≥10 years
Power consumption
<4VA, 1.5W
Meter constant
1000imp/kWh
Dimension
206*130*46mm
Clik to Return To Home Page https://pss.en.alibaba.com/?spm=a2700.wholesale.cordpanyb.2.4ff92a17QrKrLc Custom Service We accept Logo & Packing Etc. design of product customization.To express your idea or know more information, Click here now!
Packing & Delivery
Packaging Details
1pcs package by paper box
Delivery Time
8~20 days
Our Service
Our Company

Guangxi Precision Trading Co., Ltd

GXPRECISION registered with a capital of 2 million yuan in 2013 Setting production, sales and service together. Main products: circuit breaker, moulded case circuit breaker, contactor,Thermal relay, electrical meter, distribution box, voltage stabilizer, voltage regulator, transformer, industry plug and socket,power accessories, fuse protector and other electrical products or accessories----all is designed and manufactured by DELIXI(joint venture of S c h n e i d e r Electric France and D E L I X I Group China) . To fulfill customers’ needs, we provide both safe and efficient electrical solutions. Our products are in strict accordance with IEC standard and ISO90001, CE,CCC,KEMA,SEMKO, RoHS. So far, our electrical products have been exported largely to The United States, Germany, Britain, Russia, Spain, Holland, Australia, New Zealand, Brazil, Mexico, Chile, Turkey, Ukraine, Oman, Yemen, Saudi Arabia, Pakistan, Kazakhstan, Mongolia, India, Nigeria, Kenya, Malaysia, Garner, Indonesia, Philippines, Vietnam, Burma, Thailand and other more than 50 countries and regions. after five years’ growing with reasonable price, stable quality and customer first management philosophy, we gain high approval of customers both home and abroad, and gradually become a leader in this area.

Customer's feedback
Customer Photos
FAQ
Questions & Answer: Q 1. what's the payment term? A. We accept TT,30% deposit and 70% balance agaisnt copy of BL, or palpay and so on. B. L/C at sight. Q 2. how's the delivery time ? A. usually it will take about 15-25 days for production. Q 3. tell me the standard of package? A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection. Q 4.Could you offer Form A ,C/O and From E ? A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate. Q 5.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM. Q 6.Where is your market? A. Our products are popular in Midde east , Thailand , Malasia ,italy, Africa ,American, pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
