It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile ect.
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FUBOKAIYUAN
-
Model Number:
-
FBD1380
-
Voltage:
-
220V/380V/customized
-
Product name:
-
Drop hammer exhaust fan
-
Size:
-
1380*1380*400mm
-
Blade Diameter:
-
1250mm
-
Motor:
-
Chinese Motor/Siemens Motor
-
Type of Drive:
-
Belt drive
-
Motor Ratational Speed:
-
1400rpm
-
Air Flow:
-
44000CBM/H
-
Input Power:
-
1.1KW
-
Frequency:
-
50HZ/60HZ
-
Noise decibels:
-
<+64DB
Quick Details
-
Applicable Industries:
-
Farms, poultry house, industrial workshop, greenhouse, chicken house
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FUBOKAIYUAN
-
Model Number:
-
FBD1380
-
Voltage:
-
220V/380V/customized
-
Product name:
-
Drop hammer exhaust fan
-
Size:
-
1380*1380*400mm
-
Blade Diameter:
-
1250mm
-
Motor:
-
Chinese Motor/Siemens Motor
-
Type of Drive:
-
Belt drive
-
Motor Ratational Speed:
-
1400rpm
-
Air Flow:
-
44000CBM/H
-
Input Power:
-
1.1KW
-
Frequency:
-
50HZ/60HZ
-
Noise decibels:
-
<+64DB
Products Description
|
Model
|
Blades Diameter(mm)
|
Blades Rotational Speed (r/min)
|
Motor Rotational Speed (r/m)
|
Air Flow (m³/h)
|
Input power(W)
|
Noise(db)
|
Height*width*thickness(mm)
(A*B*C)
|
|
FBD-600
|
500
|
1400
|
1400
|
5700
|
370
|
<=70
|
600*600*380
|
|
FBD-700
|
585
|
1400
|
1400
|
10000
|
370
|
<=70
|
700*700*380
|
|
FBD-800
|
710
|
612
|
1400
|
18000
|
370
|
<=70
|
800*800*400
|
|
FBD-900
|
750
|
616
|
1400
|
22000
|
550
|
<=70
|
900*900*400
|
|
FBD-1000
|
900
|
513
|
1400
|
23000
|
550
|
<=70
|
1000*1000*400
|
|
FBD-1100
|
1000
|
513
|
1400
|
32500
|
750
|
<=70
|
1100*1100*400
|
|
FBD-1220
|
1100
|
427
|
1400
|
38000
|
1100
|
<=70
|
1220*1220*400
|
|
FBD-1380
|
1250
|
427
|
1400
|
44000
|
1100
|
<=70
|
1380*1380*400
|
|
FBD-1530
|
1400
|
427
|
1400
|
55800
|
1500
|
<=70
|
1530*1530*400
|
(2) Special push-pull shutter mechanism can open and close the shutter automatically.
(3) Wall-Mounting fan , easy installation and maintenance
(4) Belt Drive, Big airflow
1.Motor
Brand: Chinese famous motor, Siemens motor Motor Protection
Grade: IP55
Isulation Class: F grade
Advantage:
Motor voltage and
frequency can be customized.
frequency can be customized.
2.Opening system
Material: High quality Nylon PA66
Advantage:
High strength, no rust, reducefriction.
It can keep the shutters open at complete 90 degree to
ensure the lowest air resistantce and biggest air volume.
ensure the lowest air resistantce and biggest air volume.
3.Fan Blades
Material : Krupp 430 stainless steel thickness 1.2mm
Diameter: 1250mm
Advantage:
Large air flow,
no deformation, no fracture,
no dust, attractive and durable.
4.Belt Pulley
Material:
High strength aluminum-magnesium alloy by die-casting.
Blast-sanding treatment,
eliminate internal stress to improve
its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.
5.Bearing
Single-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.
6.Belt
Brand: Sanlux or Mitsuboshi belt (Japanese)
2 Types: TypeA, Type B
Advantage:
Long service life, maintenance free.
7.Shutters
Material: Hot Galvanized sheet with zinc thickness of 275g/㎡ Shutter
Fixed Parts: High quality nylon.
Advantage:
High anti-corrosion performance, open flexibly, long service life, no deformation ,no rust, running stable.
Advantage:
High anti-corrosion performance, open flexibly, long service life, no deformation ,no rust, running stable.
8.Frame with Plastic Handle
Frame: Hot Galvanized sheet with zinc thickness of 275g/㎡,
high anti-corrosion performance
Plastic Handle,
Advantage:
No rust
Easy to carry , Convenient to load
9.Safe Net
Material: Hot-dip galvanized wire
Advantage: No rust.

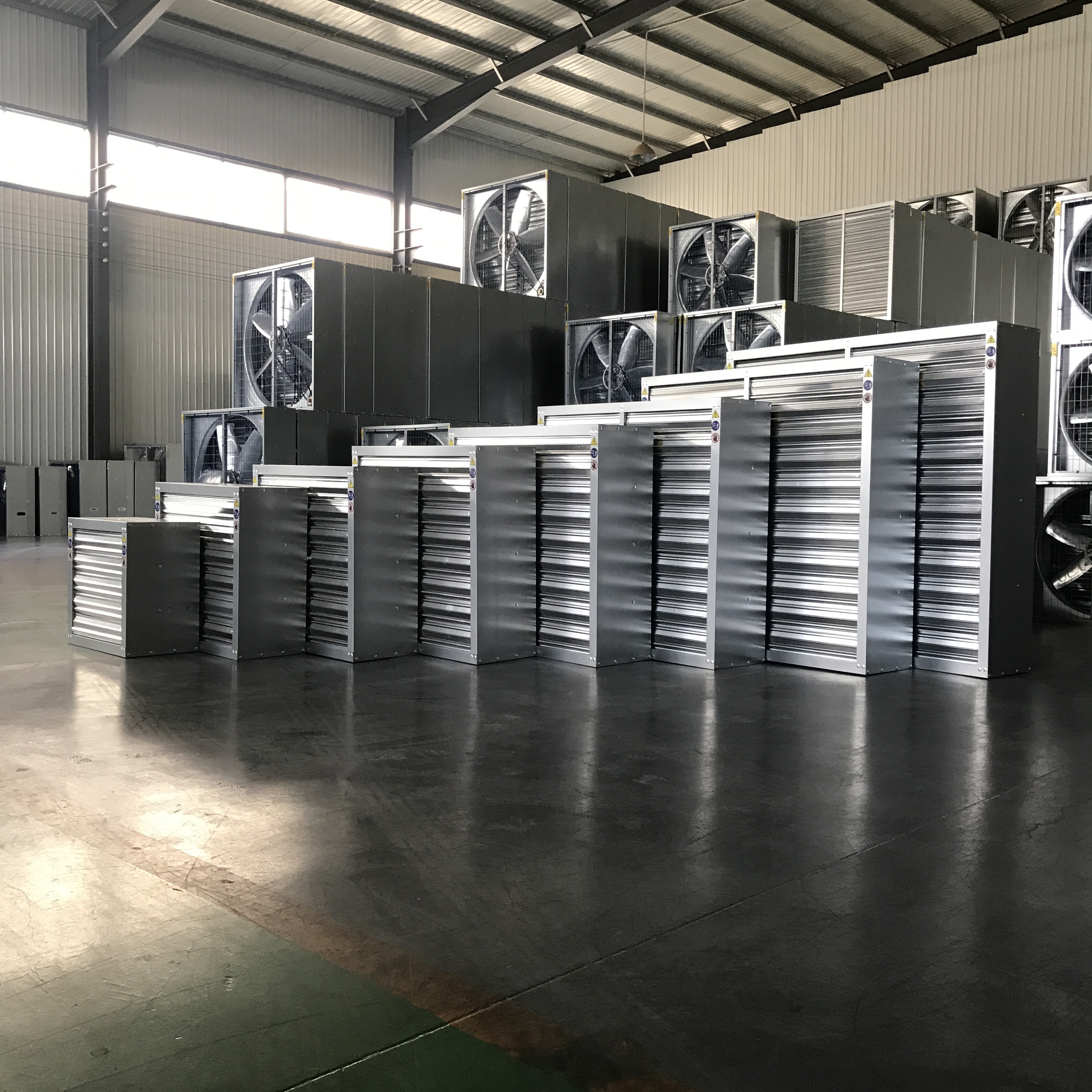

WORKSHOP SHOW
Fubo Kaiyuan equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
FUBOKAIYUAN has the advanced Complete CNC machine and Laser Cutting machine.Auto punching and bending,
the accuracy of the hole is 100%, easy to assemble. And 85% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
the accuracy of the hole is 100%, easy to assemble. And 85% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
CASE DISPLAY
It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile ect.
Certifications
About Us
Fubo Kaiyuan Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers.
Many customers from all over the world come to visit our company every year. Our company is highly praised by customers.
FAQ
1. Are you real manufacturer or ..?
-- Yes, we are 100% original manufacturer. Our factory located at Weifang city , ShanDong province .
In design, materials procurement, manufacturing semi-finished products testing, finished products are as such as strict control to ensure product quality. Welcome to visit us.
2. Can you do make our own brand?
--Yes, we can provide the OEM &ODM service.
3. Any guarantee for your products?
--Our company's culture is
"Quality is our culture!"
All of our products with
12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
4. How about the delivery time?
--Usually for sample order 1-2 days, for mass order 7-15 days.
5.What's the payment term?
A:Payment: 30% prepay By T/T ,70% pay before loading container. By T/T or L/C.
