Quick Details
-
Power resource:
-
electric
-
Warranty:
-
1 year
-
Oscillation Frequency:
-
28~40KHZ
-
Cooling Water Flow(host):
-
25L/min
-
Input power:
-
16KW
-
Cooling Water Pressure:
-
0.1-0.3Mpa
-
Start-up Success Rate:
-
100%
-
Design:
-
engineer and inductor seperate,customize is available
Quick Details
-
Place of Origin:
-
Henan, China
-
Name:
-
induction heating equipment for copper tube/pipe welding
-
Function:
-
metal annealing/melting/forging/brazing/welding use
-
Power resource:
-
electric
-
Warranty:
-
1 year
-
Oscillation Frequency:
-
28~40KHZ
-
Cooling Water Flow(host):
-
25L/min
-
Input power:
-
16KW
-
Cooling Water Pressure:
-
0.1-0.3Mpa
-
Start-up Success Rate:
-
100%
-
Design:
-
engineer and inductor seperate,customize is available

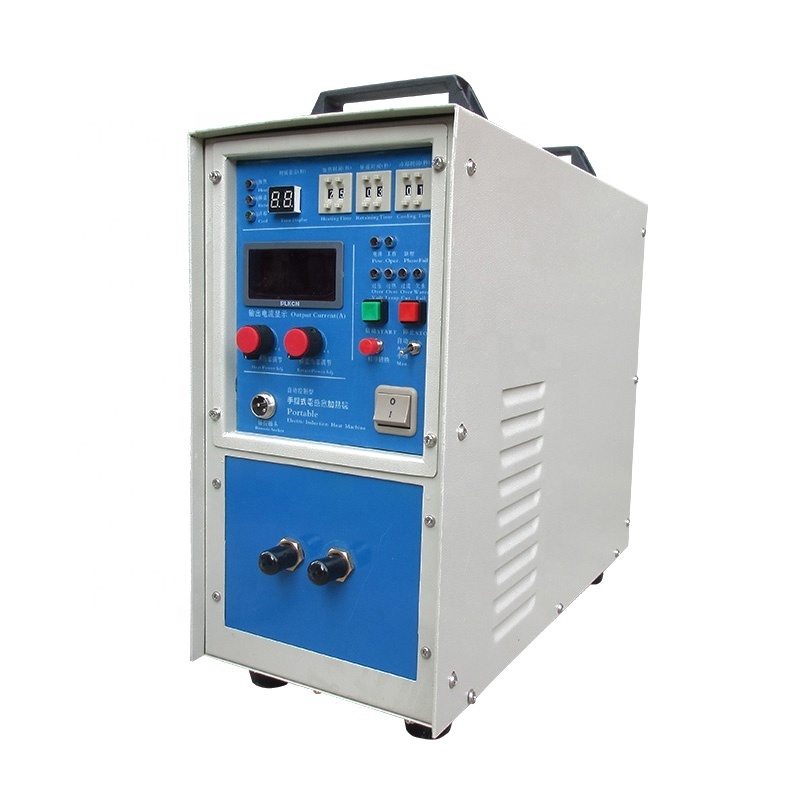

Factory direct induction heating equipment for copper pipe tube welding
1. Brief introduction of high frequency induction brazing machine
Our high frequency induction brazing machine adopts IGBT series and parallel induction heating technology as the core. This is a form of brazing that uses electromagnetic induction to heat the work piece, which makes the brazing filler metals’ surface temperature rise rapidly till melting, connecting finally.
2. Applications of high frequency induction brazing machine
(1)
metal tube brazing
, such as copper tube, steel tube, and aluminum tube.
(2)
alloy cutter brazing
, such as lathe tool, milling tool, planer, saw blades, reamer, boring knife.
(3)
mining tools brazing,
such as drill bits, cutting picks.
(4)
carbide saw blade brazing:
cutter blade, serrated blade, diamond saw blade, marble saw blade, woodworking saw blade.
(5)
metal welding:
auto-accessories, motor accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
3. Features of high frequency induction brazing machine
(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction brazing machine adopts IGBT from Siemens & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction brazing machine easily.
(5)
Stable operation:
complete protection, make customers have nothing to worry about.
4. Main technical parameters of LSW-16 induction brazing machine
|
LSW-16 |
|
|
Power |
16kw |
|
Input current |
30A |
|
Voltage |
1-phase 220V, 50~60Hz or customized |
|
Oscillation frequency |
28~40KHz |
|
Duty cycle |
100% |
|
Machine dimension |
420*200*360mm |
|
Packaging dimension |
480*260*480mm |
|
Net weight |
22kg |
|
Gross weight |
27kg |
1. Immediate reply to your inquiry.
2. Experienced sales answer all questions in fluent English.
3. Customized design is available.
4. Detailed information of our products, and our company if needed.
5. Technical support, or alternative accessories if necessary.
6. Freely guide installation, commissioning and test run.
7. One year’s warranty. Once there is a trouble within one year, professional engineers and sales will be promptly appointed to help.
As for packaging:
1. Pack the induction heating machine with wrapping film for waterproof;
2. Put it into a standard exporting plywood or wooden case;
3. Put foam around it for shockproof;
4. Fasten the case with nails.
As for shipping:
1. If you have a shipper in China, we can send the induction heating machine to him or her for free.
2. If you want us to send the induction heating machine to you directly, we can send it to any main port of China promptly.
