Quick Details
-
Brand Name:
-
HW
-
Weight:
-
5800kg
-
Dimension(L*W*H):
-
4600*2150*2800mm
-
Certification:
-
ISO
-
Product Name:
-

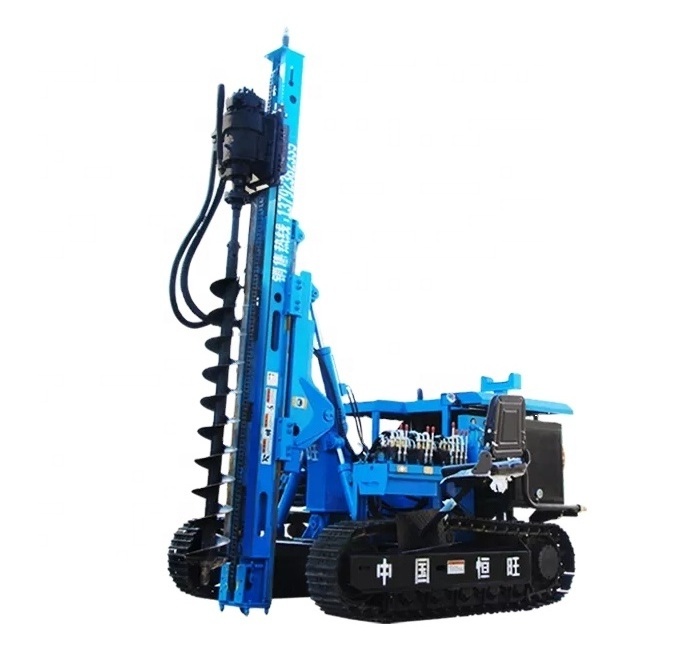

Helical Screw Pile Equipment Small Ground Screw Pile Driver
-
Model:
-
HWL300
-
Hammer impact:
-
780J
-
Pile length:
-
0-3000
-
Duplex gear pump pressure:
-
20Mpa
-
Duplex gear pump displacement:
-
40ml/r
-
Hydraulic system pressure:
-
20Mpa
-
Main valve flow:
-
120L/Min
-
Overall Machine weight:
-
5.8T
-
Rated Speed:
-
2400R/min
Quick Details
-
Efficiency:
-
High
-
Piling Speed(m/min):
-
3m/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Weight:
-
5800kg
-
Dimension(L*W*H):
-
4600*2150*2800mm
-
Certification:
-
ISO
-
Product Name:
-
Helical Screw Pile Equipment Small Ground Screw Pile Driver
-
Model:
-
HWL300
-
Hammer impact:
-
780J
-
Pile length:
-
0-3000
-
Duplex gear pump pressure:
-
20Mpa
-
Duplex gear pump displacement:
-
40ml/r
-
Hydraulic system pressure:
-
20Mpa
-
Main valve flow:
-
120L/Min
-
Overall Machine weight:
-
5.8T
-
Rated Speed:
-
2400R/min
Product description
HWL300 Solar Pile Driver for Sale
3m hydraulic rotary press piling machine is multifunctional pile driving machine for mine, with 360 degrees of freedom to rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.
HWL300 Solar Pile Driver for Sale
Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion, high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
Specification
|
Model
|
HWL300
|
Remark
|
|
Hammer impact
|
780J
|
Joule,we can make more powrful impact as your demand
|
|
Pile length
|
0-3000
|
mm
|
|
Duplex gear pump pressure
|
20
|
Mpa
|
|
Duplex gear pump displacement
|
40
|
ml/r
|
|
Hydraulic system pressure
|
20
|
Mpa
|
|
Main valve flow
|
120
|
L/Min
|
|
Overall Machine weight
|
5.8
|
T
|
|
Diesel engine power
|
80
|
KW
|
|
Rated Speed
|
2400
|
R/min
|
|
Starting Voltage
|
24
|
V
|
|
Rotation angle
|
360
|
°
|
|
Rotation semi diameter(rotating shaft to Pod distance)
|
1925
|
mm
|
|
Effective press pile stroke
|
0.-3000
|
mm
|
|
Dimension(LXWXH)
|
4600*2150*2800
|
mm
|
|
Track shoe
|
350
|
mm
|
|
Walking motor total displacement
|
1575
|
ml/m
|
|
Walking motor rated pressure
|
18
|
Mpa
|
|
Walking motor output torque
|
4300
|
N.M
|
|
Walking motor rotate speed
|
50
|
r/min
|
|
Press Pile Diameter
|
0-600
|
mm
|
|
Drilling Depth
|
0-3000
|
mm
|
|
Operating Speed (m/min)
|
1.5
|
90s/per pile
|
|
Number of impacts / strokes per 1 minute
|
900
|
times/min
|
|
Maximum length of Piles to be rammed
|
3
|
M
|
|
Walking speed
|
5--10
|
Km/hr
|
|
Gradeability
|
0-35
|
°
|
|
Oil tank capacity
|
200
|
L
|
|
Hydraulic tank capacity (L)
|
500
|
L
|
Product Details
HWL300 Solar Pile Driver for Sale
QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the national quality the first, market share rate of the first brand.
