Lifetime can be up to 100,000 hours.
- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhongcan
-
Marking Head Brand:
-
Sino
-
Weight (KG):
-
50 KG
-
Marking Speed:
-
≤7000mm/s
-
Marking Depth:
-
≤1mm
-
Repetition Precision:
-
0.003mm
-
voltage:
-
220V/380V/Customized
Quick Details
-
Working Accuracy:
-
0.003mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhongcan
-
Marking Head Brand:
-
Sino
-
Weight (KG):
-
50 KG
-
Marking Speed:
-
≤7000mm/s
-
Marking Depth:
-
≤1mm
-
Repetition Precision:
-
0.003mm
-
voltage:
-
220V/380V/Customized
ECONOMICAL TYPE WITH NEW TECHNOLOGY
- Fiber Laser Marking Machine Split -
Machine Details
LASER SOURCE
MAX/Raycus/JPT,
top
laser brands in China.
Beijing Sino Scanner
The best professional galvos,
ultra-high precision and fast speed.
Imported HS good quality lens,
high energy conversion rate and long life.
Different specifications.
Multi-language setting, stable marking, friendly user interface
Powerful editing function, easy to use, Support any pattern, text, QR code and other processing.
Working Table
Aluminum working table. Support to fix rotating, 2D workbench and other
parts
on it.
Foot switch, U disk, power cable,
tools,
focal length ruler,
laser goggles.etc

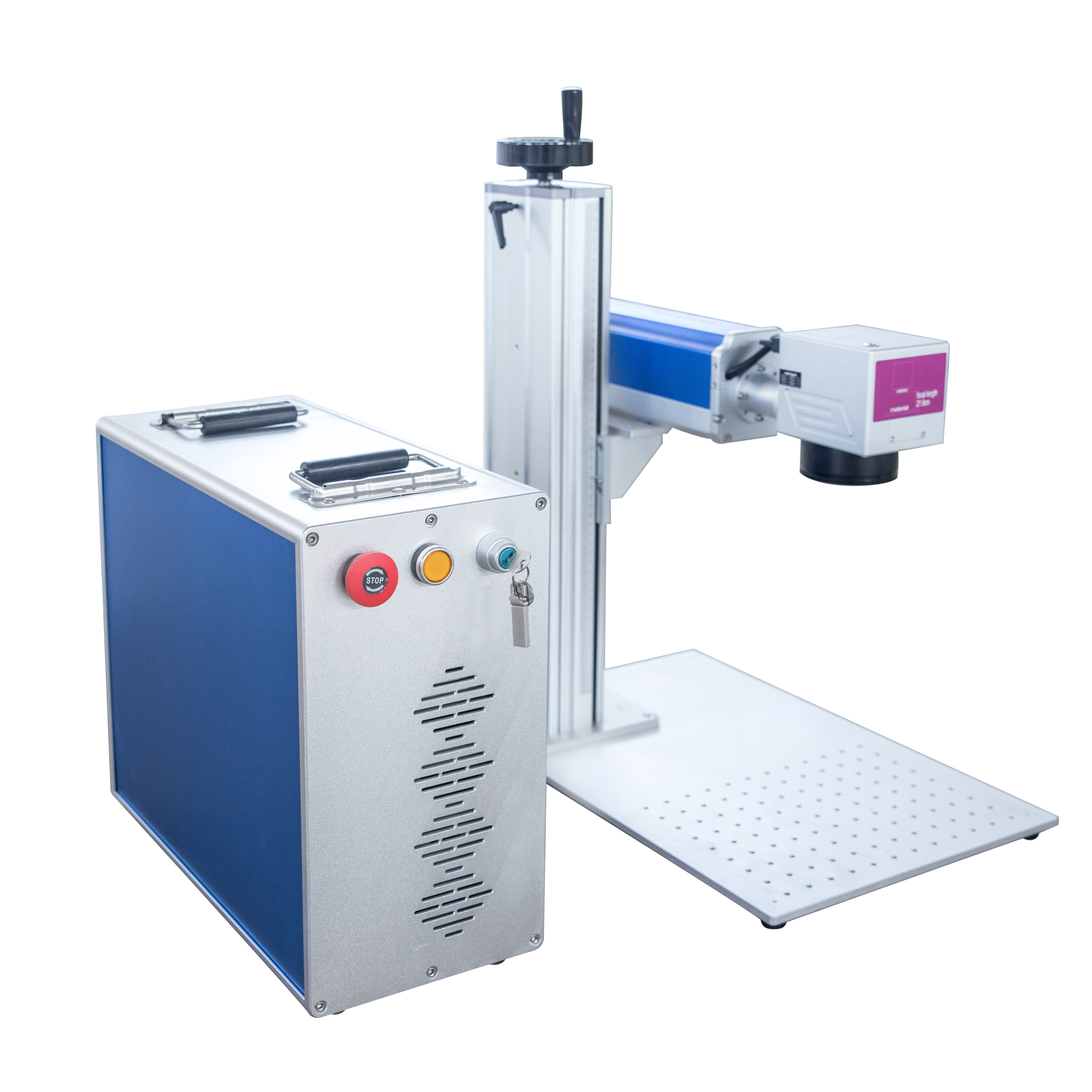

Machine Photograph
Machine Parameter
|
Product Name
|
Fiber Laser Marking Machine
|
|
Type
|
Portable split
|
|
Laser Source
|
Raycus/MAX/JPT
|
|
Laser Power
|
20W/30W/50W/100W
|
|
Marking Area
|
≤110*110mm/200*200mm/300*300mm.etc
|
|
Marking Speed
|
≤7000mm/s
|
|
Repetition Precision
|
0.003mm
|
|
Positioning
|
Red light indicating
|
|
Cooling Method
|
Air cooling
|
|
Lens Height Adjustable
|
500mm/800mm
|
|
Applicable Material
|
All kinds of metal and some non-metal Materials
|
|
Software
|
EZCAD 2.14.11
|
|
Graphic Format Supported
|
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, JPG, PNG.etc
|
|
Support Windows
|
All Windows system
|
|
Environmental Requirements
|
0-45°C，Humidity≤ 90%
|
Marking Cases
Aluminum
Stainless Steel
Stainless Steel
Coated Aluninum
Silver
Brass
Stone
Plastic
Plastic Keyboard
Other Hot DESIGN
- you can click on the picture to see more details -
Portable Split
20w/30w/50w/60w
Best seller
Integrated Mini
20w/30w/50w
Air freight e
conomical
Mini Closed
20w/30w/50w
Safe and environmentally friendly
Newest desktop
20w/30w/50w/60w/100w
Unique design
Big Closed
20w/30w/50w/60w/100w
Safe and environmentally friendly
Hot desktop
20w/30w/50w/60w/100w
Economical
Other Type Machine
- you can click on the picture to see more details
-
If you are interested, please send us an inquiry for more details.
