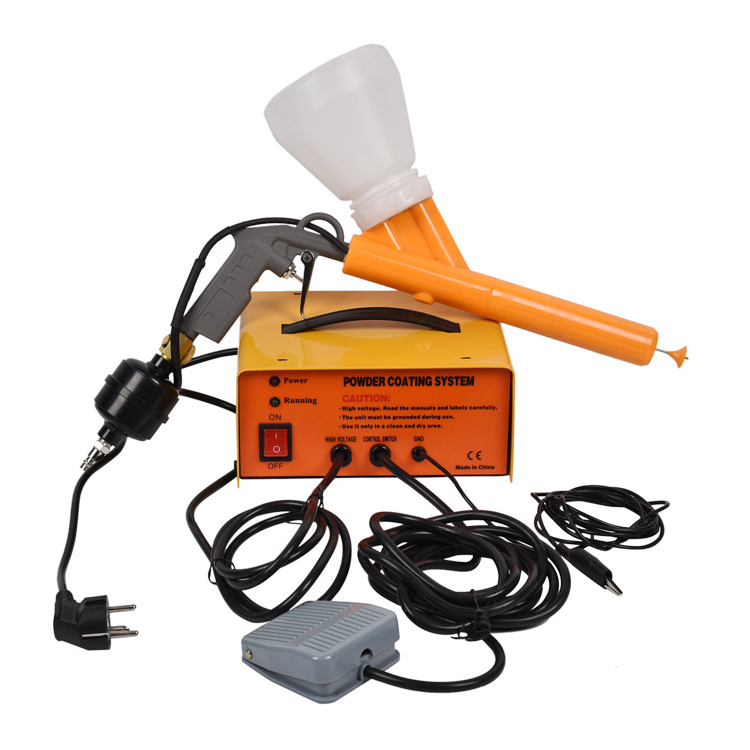

Powder Coating Machine
STP120-9000
• Powder coating is tougher than conventional paint,easy to use and clean up and covers better
• System provides a minimum 80% transfer efficiency
• 1/4 NPS air inlet
• 10-30 PSI input air pressure
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Weight (KG):
-
3.5
-
Origin:
-
Ningbo
-
Usage:
-
Metal coating
-
Colour:
-
black&yellow
-
Input:
-
120-240V devisable
-
Out put:
-
8-30KV
-
Pressure:
-
10-30P
-
Plug style:
-
EU,US,JP available
-
Air hose size:
-
EU,US,JP available
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
powder coating gun, Painting Equipment, Pre-treatment Equipment, Coating Equipment
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Weight (KG):
-
3.5
-
Origin:
-
Ningbo
-
Usage:
-
Metal coating
-
Colour:
-
black&yellow
-
Input:
-
120-240V devisable
-
Out put:
-
8-30KV
-
Pressure:
-
10-30P
-
Plug style:
-
EU,US,JP available
-
Air hose size:
-
EU,US,JP available
-
Certification:
-
CE
Product Description
Product model:
Specification
|
item
|
Description
|
|
Power Consumption
|
120 -240VAC,50-60HZ
|
|
Output high pressure
|
15KV
|
|
Line Cord
|
6 feet long,16 AWG,3-prong grounded plug
|
|
Air Supply Pressure
|
10 to 30 PSI
|
|
Cubic Feet Per Minute
|
3.5 CFM at 30 PSI
|
|
Air Inlet Size
|
1/4 inch
|
|
Remote Activation Switch
|
10 feet long
|
|
Gun Power Lead
|
8 feet ,high voltage lead
|
|
Grounding Cable
|
8 feet long with ground clamp
|
|
Control Box Fuse
|
0.5 amps
|
|
Paint Curing Temperature
|
400 degrees F. for 15 minutes(recommended)
|
|
Weight
|
6.35 lbs
|
|
|
PARTS LIST AND ASSEMBLY DIAGRAM
|
Description
|
|
|
Part
|
Description
|
Q’ty
|
|
|
1
|
Control Box
|
1
|
|
|
2
|
Spray Gun
|
1
|
|
|
3
|
Scatter Tips
|
3(Small,Medium,Large)
|
|
|
4
|
Powder Cups
|
2
|
|
|
5
|
Pressure Reducer Valve
|
1
|
|
|
6
|
Disposable Moisture Separator
|
1
|
|
|
7
|
Quick Adapter
|
1
|
|
|
8
|
Foot Switch
|
1
|
|
|
9
|
Power Cord
|
1
|
|
|
10
|
Ground Wire and Clip
|
1
|
|
Packing & Delivery
Double corrugated cardboard qty:1pcs/ctn
Ctn size:41*30*20cm
