Quick Details
-
Combination:
-
Pulse Repair
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Monfara
-
Model Number:
-
MF-3S
-
Product name:
-
12v24v Battery Charger
-
Application:
-
12V/24V lead-acid, water , maintenance-free and dry battery
-
Input voltage:
-
110-250V
-
Output voltage:
-
12V/24V (Automatic)
-
Output current:
-
0-18A Automatic adjust
-
Power:
-
400W
-
Size:
-
27X19X9.5CM
-
Protection function:
-
Multiple protection
Quick Details
-
Function:
-
screen display, Voltage Monitoring, Fully Automatic, 4 Stage Smart Charging
-
Type:
-
Smart Battery Charger, 4 stage charging
-
Connection:
-
Alligator Clips
-
Combination:
-
Pulse Repair
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Monfara
-
Model Number:
-
MF-3S
-
Product name:
-
12v24v Battery Charger
-
Application:
-
12V/24V lead-acid, water , maintenance-free and dry battery
-
Input voltage:
-
110-250V
-
Output voltage:
-
12V/24V (Automatic)
-
Output current:
-
0-18A Automatic adjust
-
Power:
-
400W
-
Size:
-
27X19X9.5CM
-
Protection function:
-
Multiple protection
Factory direct sales, support customization
Battery charger series
Current :8.5A, 5A, 10A, 12A, 18A, 23A, 30A, 50A
Power:160w,200W,400W,600W,800W
Application
It's compatible with all kinds of 12V /24V battery.
For example: lead-acid battery, water battery, maintenance-free battery, dry
battery charging. GEL battery , OPZV
,
VRLA battery ,Solar battery,ect.
and
12.6 V lithium battery
Applied to : scooter, motorcycle, car, SUV, small truck, tractor, Outdoor lighting battery any and vehicle batteries ,etc.

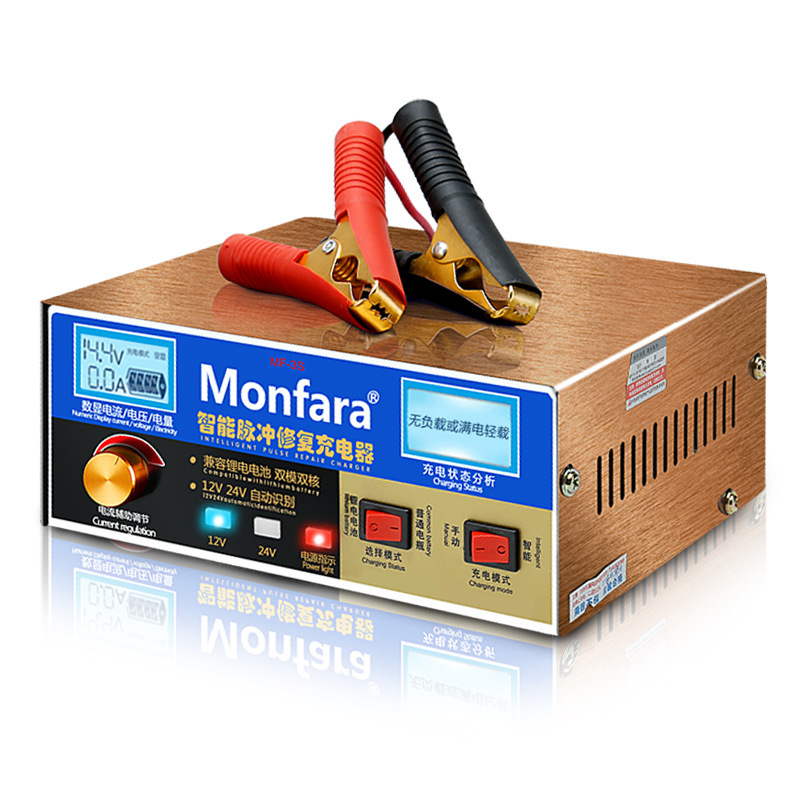

Features: MODEL:MF-3S, The core function
1)Automatic identification 12V24V
2)One-button automatic
3)Both ordinary and lithium batteries are suitable
4)400W high power, maximum current 18A,The current can be adjusted manually
5) Compatible with 12.6V lithium battery charging
6) Digital display power, voltage , current .Show charging status in stages
Detailed parameters
|
Model |
MF-3S |
power |
600W |
|
Input voltage |
110V-250V |
Frequency |
50-60HZ |
|
Output voltage |
12V24V |
Protection function |
Multiple protection |
|
Working Current |
0-18A Adjustable automatically |
Voltage Identification |
12V Peak (8-14.5V) ; 24V Peak (18-29V) |
|
Work Temperature |
-30℃ to +35℃ |
Product size |
210*160*87 ( mm ) |
|
Battery type |
1. 12V24V battery: Lead-Acid Battery; Maintenance-free battery; Dry battery, Water battery; Gel battery; Solar battery, ect. 2. 12.6V lithium battery |
||
|
Net weight |
1kg |
Gross weight |
1.2kg |
|
Packing quantity |
15Pcs |
Carton siza |
60X29X49.5CM |
|
Packing Weight |
19.4KG |
Plug |
Optional |
|
input line |
150CM |
output line |
60CM |
Charging time reference(Model:MF-3S)
|
battery(AH) |
Charging time(H) |
battery(AH) |
charging time(H) |
|
6AH-12AH |
0.5-1 |
12AH-20AH |
1-2 |
|
32-36AH |
2-3 |
45-55AH |
3-4 |
|
60AH-80AH |
6-8 |
105AH |
8-10 |
|
120AH |
8-14 |
150AH |
9-13 |
|
200AH |
10-15 |
300AH |
12-19 |
|
400AH |
14-22 |
|
|
TIP: The larger the true capacity of the battery, the longer it will take to charge.
Package List:
1 * Charger
1 * User Manual(Chinese and English version)
Four stage charging , protect the battery , non-overcharging
Adaptive electricity charging
Charging at constant voltage
Full charge soon&conduct floating charge
Microcurrent supply/full charge
SIX Protections ,Ensure safe charging
Short Circuit protection
Polarity error protection
Overheating protection
Over current protection
low-voltage protection
Over voltage protection
Note:
1. The charger is suitable only for charging matched battery within the listed voltage range.
2. Please do not block cooling fan or use the charger while cooling fan is stopped.
3. Please prevent the charger from rain or water to avoid damage.
