Quick Details
-
Brand Name:
-
Hightop
-
Model Number:
-
A-A-45
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
chicken cage, Automatic feeding system, Automatic manure cleaning system, Automatic egg collection system, Environment control system
-
Key Selling Points:
-
15-20 year service time
-
Weight:
-
80 KG
-
Product name:
-
Poultry Farm Manure Transport Belt Conveyors For Chicken
-
Capacity:
-
3-tier 120 heads/4-tier 160 heads
-
Application:
-
layer chicken farming
-
Surface treatment:
-
Hot dipped galvanized
-
Service life:
-
15-20 years
-
Feeding system:
-
Automatic
-
Drinking system:
-
Automatic
-
Egg Collecting System:
-
Automatic
-
Manure Cleaning System:
-
Automatic
-
Keywords:
-
layer chicken cage, battery cage, automatic layer cage
Quick Details
-
Type:
-
A type
-
Material:
-
hot dipped galvanized, Q 235
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hightop
-
Model Number:
-
A-A-45
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
chicken cage, Automatic feeding system, Automatic manure cleaning system, Automatic egg collection system, Environment control system
-
Key Selling Points:
-
15-20 year service time
-
Weight:
-
80 KG
-
Product name:
-
Poultry Farm Manure Transport Belt Conveyors For Chicken
-
Capacity:
-
3-tier 120 heads/4-tier 160 heads
-
Application:
-
layer chicken farming
-
Surface treatment:
-
Hot dipped galvanized
-
Service life:
-
15-20 years
-
Feeding system:
-
Automatic
-
Drinking system:
-
Automatic
-
Egg Collecting System:
-
Automatic
-
Manure Cleaning System:
-
Automatic
-
Keywords:
-
layer chicken cage, battery cage, automatic layer cage

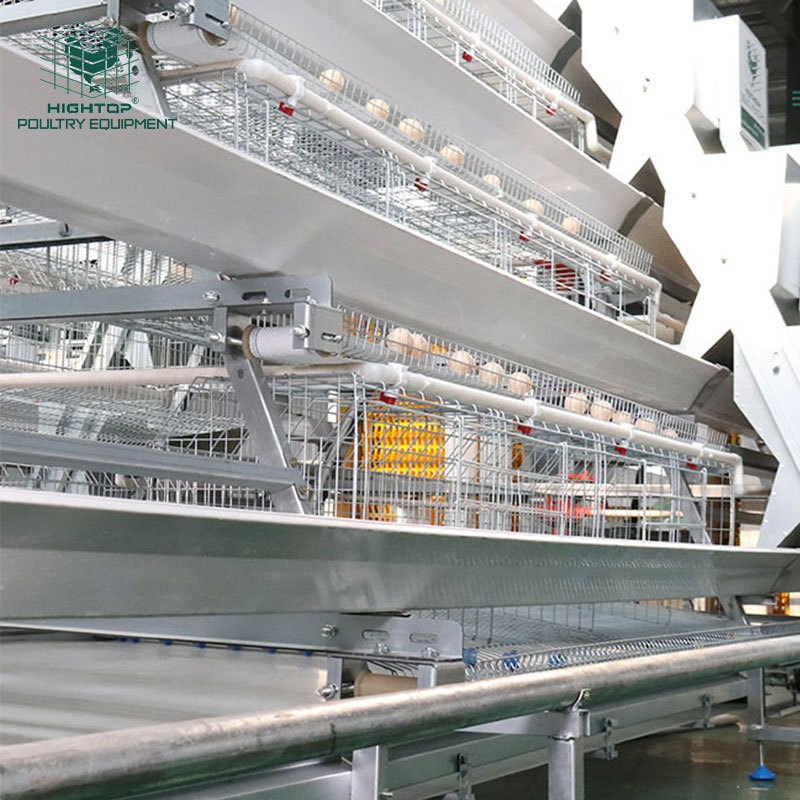

Poultry Farm Manure Transport Belt Conveyors For Chicken
● The full set of equipment using hot-dip galvanized material, corrosion-resistant, which ensures the service life of 15-20 years.
● Intensive management and automated control. Achieve automatic feeding,drinking,manure cleaning,egg collecting and environment control,can help to improve working efficiency and save labor cost.
● Intensive management and automated control. Achieve automatic feeding,drinking,manure cleaning,egg collecting and environment control,can help to improve working efficiency and save labor cost.
● Have sufficient feed, water position and healty uniformity are better chicken, chicken limited to the minimum amount of exercise, energy consumption, save feed.
● Chicken manure and chickens are completely isolated, manure can be directly down to the ground, chicken house dust greatly reduced, less chance of disease from infected feces, greatly reduced the mortality of chickens.
● High-density raising,saves land and investment. The chicken cage could easy to observe birds, clustering or choose weak easily.
● Suitable for both closed and open chicken house.Automatic control of ventilation and temperature can meet the requirement of the birds. Some place can also used in open house, A ype structure have better ventilation.
|
A type layer chicken cage size
|
|
|
|
|
|
|
|
|
||||||||
|
Cage size
|
Door No. /cage
|
Chicken No. /door
|
No. of layer
|
Capacity of one set of cage
|
Area per head (sqcm)
|
Length of the cage with frame
|
Width of installed cage with feeding machine
|
Height of installed cage with feeding machine
|
||||||||
|
1950*350*380
|
5
|
3
|
3
|
90
|
155
|
2000
|
2450
|
1955
|
||||||||
|
1950*350*380
|
5
|
3
|
4
|
120
|
155
|
2000
|
2800
|
2455
|
||||||||
|
1950*450*410
|
5
|
4
|
3
|
120
|
438.75
|
2000
|
2625
|
2050
|
||||||||
|
1950*450*410
|
5
|
4
|
4
|
120
|
438.75
|
2000
|
3075
|
2530
|
||||||||
|
Corollary equipment
|
|
Automatic feeding, automatic egg collection and automatic manure cleaning system
|
|
|
|
|
|
|
||||||||
|
Surface treatment
|
|
Hot dipped galvanized, Galfan
|
|
|
|
|
|
|
||||||||
|
Material
|
|
Q 235
|
|
|
|
|
|
|
||||||||
|
lifetime
|
|
15-20 years
|
|
|
|
|
|
|
||||||||
Building Size Recomend
|
Chicken house size recommendation use 4-tier cage
|
|
|
|
|||
|
Cage Model
|
1950*450*410 mm, 5 doors, 4 chicken/door, 4-tier cage, 160 capacity
|
|
|
|||
|
4-tier Cage installation size
|
2 m*3 m*2.5 m
|
|
|
|||
|
No. of cage per row
|
40
|
No. of cage per row
|
40
|
|||
|
Rows of cages
|
3
|
Rows of cages
|
4
|
|||
|
No. of chicken per house
|
19200
|
No. of chicken per house
|
25600
|
|||
|
House size
|
86m*13m*3.5m
|
House size
|
86m*16m*3.5m
|
|||
Product Advantages
Our Service
About Installation
Hightop installation team:
Chief engineer:
1 person, over 20 years experience
Engineer:
5 person, over 10 year experience
Workman:
provided by clients
Due to CoviD-19, only video and drawing guidance will be provided during this period, and on-site guidance will be available after the outbreak
Shipment
All the loading is done by the stevedores with more than 10 years of experience. they will make full use of the space of the whole container, reduce the container quantity to help you save sea freight.
