Quick Details
-
Memory Type:
-
2GB/4GB/8G DDR4
-
Graphics Card Type:
-
Integrated
-
FSB / HT:
-
1066 / 1333 / 1600MHz.
-
Brand Name:
-
PIESIA
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
PC Motherboard
-
CPU:
-
I3 7100U /I5 7200U /I7 7500U
-
Memory:
-
maximum expansion of 16GB memory
-
Three display:
-
three-screen synchronous or asynchronous display
-
Dual LVDS EDP:
-
Support for dual channel 24 bit outpu
-
network:
-
1 Intel I211AT and 1 Intel I219V Gigabit network card
-
Warranty:
-
3 Years
-
SIZE:
-
154.8 x 117.4 mm
-
Keywords:
-
Industrial PC Motherboard
-
Operating System:
-
WIN7/WIN8/WIN10/LINUX
Quick Details
-
Maximum Ram Capacity:
-
16GB
-
Application:
-
Telecommunication, railway transportation, aerospace
-
Form Factor:
-
3.5 "industrial motherboard
-
Memory Type:
-
2GB/4GB/8G DDR4
-
Graphics Card Type:
-
Integrated
-
FSB / HT:
-
1066 / 1333 / 1600MHz.
-
Brand Name:
-
PIESIA
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
PC Motherboard
-
CPU:
-
I3 7100U /I5 7200U /I7 7500U
-
Memory:
-
maximum expansion of 16GB memory
-
Three display:
-
three-screen synchronous or asynchronous display
-
Dual LVDS EDP:
-
Support for dual channel 24 bit outpu
-
network:
-
1 Intel I211AT and 1 Intel I219V Gigabit network card
-
Warranty:
-
3 Years
-
SIZE:
-
154.8 x 117.4 mm
-
Keywords:
-
Industrial PC Motherboard
-
Operating System:
-
WIN7/WIN8/WIN10/LINUX

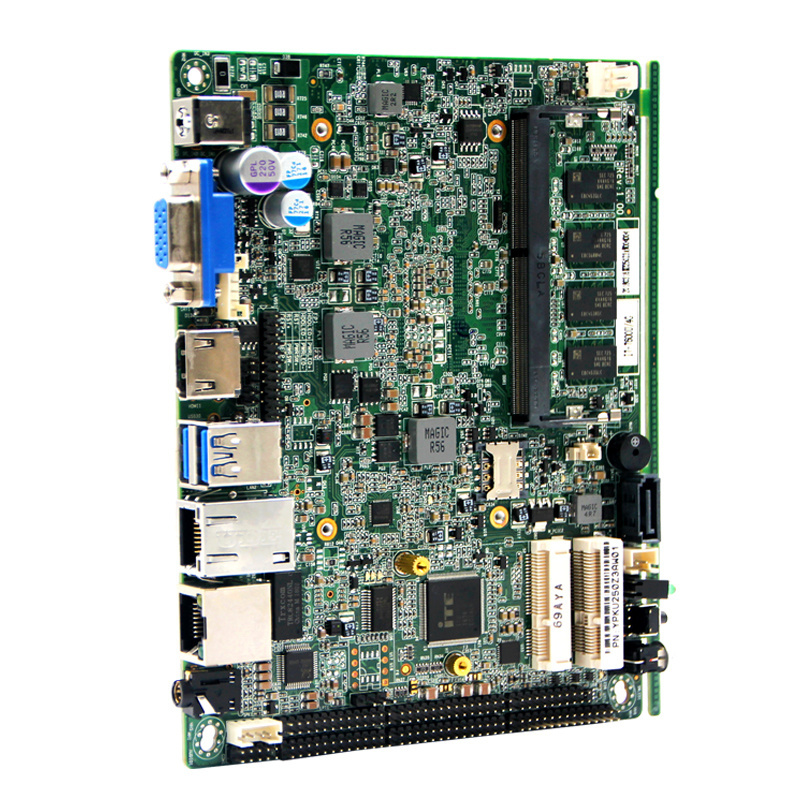

Product Description
|
Processor System |
CPU
|
Intel® Core™ 7th/8th Kabylake-U Soc i3/i5/i7 CPU
|
|
|
CPU package
|
BGA
|
|
|
Chipset
|
Intel® Kabylake-U series SOC
|
|
|
BIOS
|
EFI BIOS
|
|
|
Technical architecture
|
single channel DDR4 2133Mhz；
|
|
|
Memory
|
integration 2GB/4GB/8G DDR4
|
|
|
slot
|
Add 1 slot, up to 16GB of memory
|
|
Video Frequency |
graphics controller
|
Intel HD Graphics 520(I3-6100U Video card）；Graphics card model is related to CPU
|
|
|
Dual LVDS and EDP
|
Support dual channel 24 bit output, maximum resolution 1920 x 1200 EDP maximum resolution support 4096U 2304 (only one option)
|
|
|
VGA
|
VGA support maximum Resolution 2048x1536
|
|
|
HD-MI
|
Maximum Resolution support HD-MI 1.4U 4096U 2304HZ support 4K display
|
|
|
Dual display support
|
LVDS + VGA,LVDS+HD-MI,HD-MI+VGA Synchronous or asynchronous display
|
|
|
Three display
|
Support LVDS VGA HD-MI three-screen synchronous or asynchronous display
|
|
I/O Backplane
|
port
|
1*VGA,1*HD-MI,1*LAN,2*USB3.0/1*MIC-OUT/LINE-OUT
|
|
Network
|
controller
|
1*Intel I211AT and 1*Intel I219VGigabit Ethernet（When the I / O interface is 4 USB, there is only one Intel I211AT network card)
|
|
Audio Frequency
|
controller
|
HD ALC662 audio decoding (left and right channel + microphone)
|
|
Super I/O
|
controller
|
ITE8786E
|
|
Hardware Monitoring
|
Watchdog timer
|
0-255 Seconds, providing watchdog routines
|
|
|
Cooler
|
Aluminum with fan radiator (support automatic and manual fan speed adjustment)
|
|
Input/Output Interface
|
USB
|
2*USB3.0compatible USB2.0 / 1.1，6*USB2.0,Max Support + 5V / 1.5A
|
|
|
COM
|
5*RS-232, 1*RS422/485 Optional，RS485 Support for automatic flow control
|
|
|
PS/2
|
1*PS/2 Pin interface
|
|
|
touch screen
|
Supporting touch screen 4wire 5wire 8wire(Optional）
|
|
|
GPIO
|
8-bit, providing routines, freely defined input / output 3.3V @ 24mA level
|
|
Extended Bus
|
Mini-PCle
|
2 Mini-PCIe slots supporting PCIe and USB devices
|
|
|
SATA
|
1 standard SATAIII interface, maximum transmission rate 6Gb/s
|
|
|
Onboard SSD
|
On board SSD 16/32/64/128G (selectable)
|
|
|
M-SATA
|
1*Mini-PCIe M-SATA Scoket,Support for SANDISK protocol, maximum transfer rate 6gb/s
|
|
Source
|
Power supply type
|
Wide voltage 8-36V power supply electricity
|
|
|
Power consumption
|
35W
|
|
Work Environment |
working temperature
|
-20℃ ~ +60℃
|
|
|
Storage temperature
|
-40℃ ~ +85℃
|
|
|
Working humidity
|
0% ~ 90% relative humidity, no condensation
|
|
|
Storage humidity
|
0% ~ 90% relative humidity, no condensation
|
|
Appearance Dimension
|
Size
|
154.8 x 117.4 mm
|
|
|
weight
|
0.5KG
|
|
Attestation
|
|
CE,ROSH,FCC
|
