Quick Details
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
HOWO
-
Model:
-
zz5257
-
Place of Origin:
-
hubei
-
Dimensions (L x W x H) (mm):
-
8800x2500x3300
-
Box Dimensions (L x W x H) (mm):
-
8000x2250x3100mm
-
Temperature Range:
-
-18 to 5
-
Product name:
-

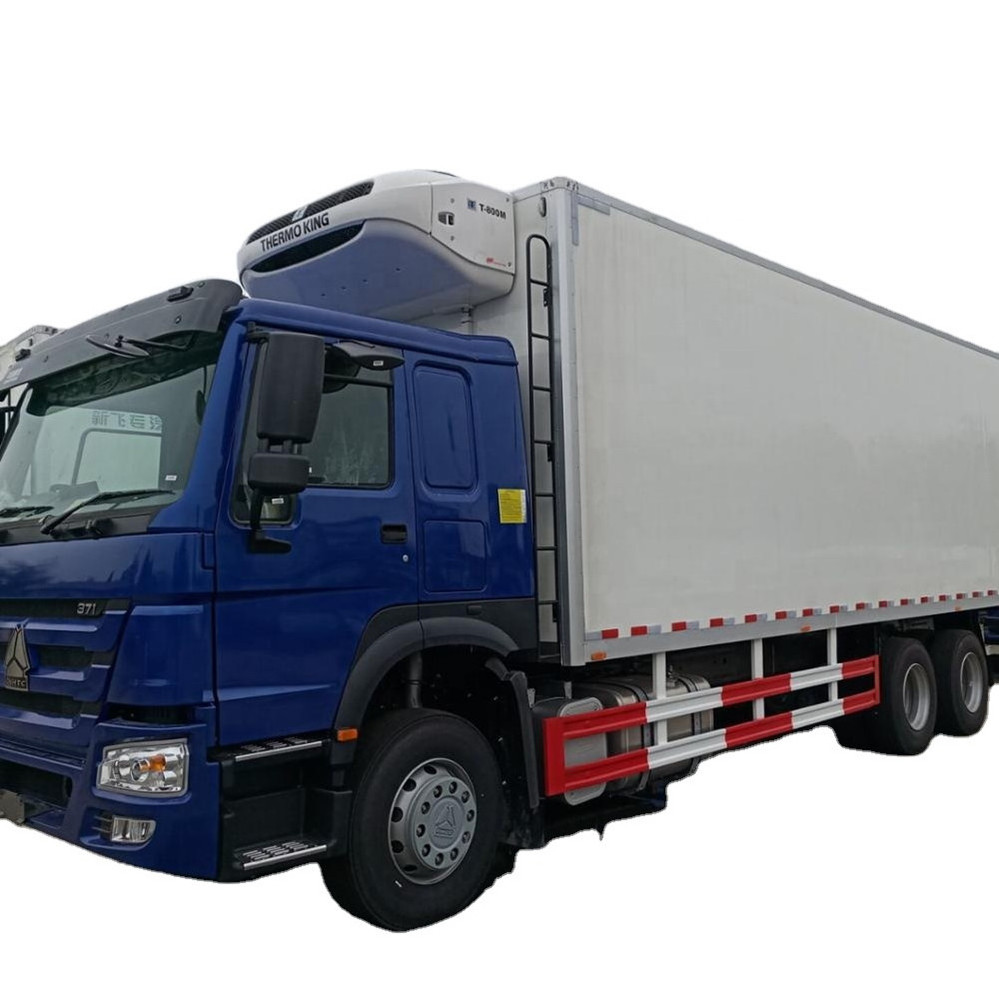

Reefer Freezer Cold Box Truck
-
Chassis Brand:
-
Sinotruk HOWO
-
Brand:
-
Howo Brand
-
Color:
-
Custom's Requirement
-
Application:
-
Transport Freezer Food
-
Certificate:
-
ISO CCC
-
Name:
-
Refrigator Truck
-
Drive type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Material:
-
Glass Fiber Reinforced Plastics
-
Warranty:
-
12 Months
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Gross Vehicle Weight:
-
25000
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
HOWO
-
Model:
-
zz5257
-
Place of Origin:
-
hubei
-
Dimensions (L x W x H) (mm):
-
8800x2500x3300
-
Box Dimensions (L x W x H) (mm):
-
8000x2250x3100mm
-
Temperature Range:
-
-18 to 5
-
Product name:
-
Reefer Freezer Cold Box Truck
-
Chassis Brand:
-
Sinotruk HOWO
-
Brand:
-
Howo Brand
-
Color:
-
Custom's Requirement
-
Application:
-
Transport Freezer Food
-
Certificate:
-
ISO CCC
-
Name:
-
Refrigator Truck
-
Drive type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Material:
-
Glass Fiber Reinforced Plastics
-
Warranty:
-
12 Months
Product Description
Specification
Cabin
|
Driving type 6x4
|
|
|
|
HW76 cabin, with A/C and one sleeper, 70°hydraulically tillable to the front as attached photo for ref.
|
|
|
Vehicle Main Dimensions
|
Overall dimensions (L x W x H)mm
|
10200×2500×3900
|
|
|
Wheel base (mm)
|
4625+1330
|
|
Weight in KGS
|
Tare Weight
|
14000
|
|
|
payload
|
20000
|
|
Max. driving speed(km/h)
|
|
90
|
|
Engine
|
Brand
|
SINOTRUK
|
|
|
Model
|
WD615.69
|
|
|
Type
|
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|
|
Horse Power(HP)
|
336
|
|
|
Emission standard
|
Euro II
|
|
|
Max Torque (N.m)
|
1350
|
|
Gearbox
|
HW19710, 10-speed Forwards gear & 2 reverse gear
|
|
|
Tire
|
12R22.5 radial tubeless tyre with one spare
|
|
|
Brakes
|
Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels |
|
|
Refrigerating System
|
1, Box Size: 7500*2300*2300 mm;
2,, Box Material, GRP (glass fibre reinforced plastic)in the surface, foam in the middle , thickness is 95-105mm 3, THERMOKING brand refrigerator unit equipped, working temperature -18 celsius degree, with independent diesel engine 4, Standby electric power supply system equipped |
|
|
Refrigerator Body
|
1, Refrigerated body: 4000*1900*1900 mm (International size), GRP is the surface, foam in the middle, thickness 85-100 mm.
2, Refrigerator adopted, working temperature -18 Celsius degree |
|
