Quick Details
-
Application:
-
mortar cement plaster
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
yuandong
-
Dimension(L*W*H):
-
1600*450*950
-
Weight:
-
150 kg
-
Power:
-
4KW
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Cement Mortar Spraying Machine
-
Voltage:
-
380V 3PHASE/Customized
-
Conveying Pipe Diameter:
-
28/32MM
-
Conveying Flow:
-
3m³/h
-
Air Pump Power:
-
2.2KW
-
Scope of Application:
-
motar,putty,paint,etc
-
Pressure:
-
5-8 Mpa
-
The Maximum Passing Particle:
-
4MM
-
Main Motor Power:
-
4KW
-
Spraying Area:
-
150m²/h
Quick Details
-
Max. vertical conveying distance:
-
15M
-
Max. horizontal conveying distance:
-
35M
-
Hopper Capacity:
-
500L
-
Application:
-
mortar cement plaster
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
yuandong
-
Dimension(L*W*H):
-
1600*450*950
-
Weight:
-
150 kg
-
Power:
-
4KW
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Cement Mortar Spraying Machine
-
Voltage:
-
380V 3PHASE/Customized
-
Conveying Pipe Diameter:
-
28/32MM
-
Conveying Flow:
-
3m³/h
-
Air Pump Power:
-
2.2KW
-
Scope of Application:
-
motar,putty,paint,etc
-
Pressure:
-
5-8 Mpa
-
The Maximum Passing Particle:
-
4MM
-
Main Motor Power:
-
4KW
-
Spraying Area:
-
150m²/h
Product Description

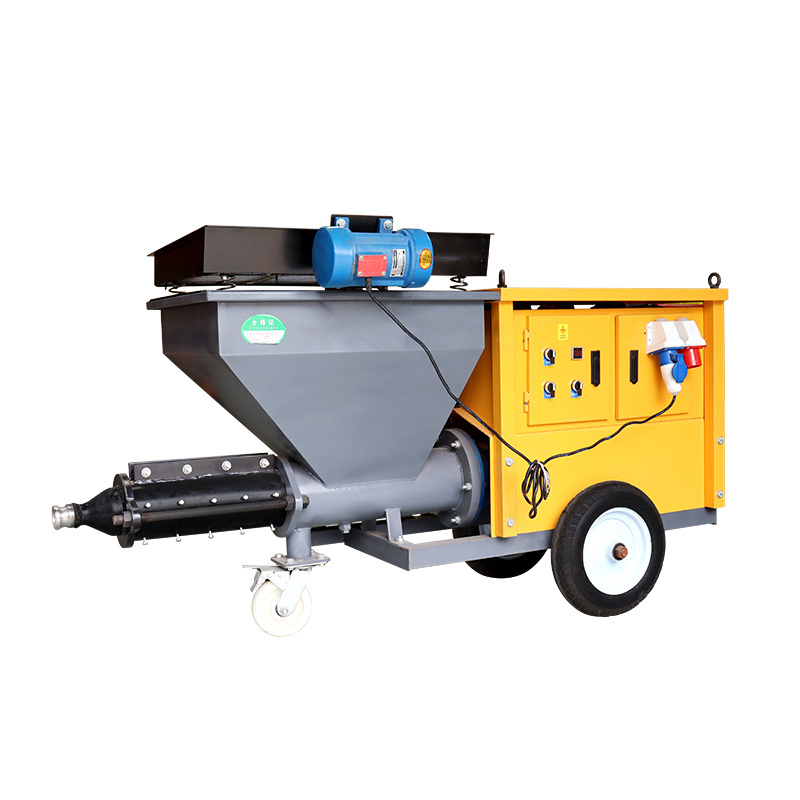

Mortar Spraying Machine
Mortar spraying machine is mainly used for building internal and external wall surface goods mixed mortar, putty powder, refractory coating and pressure grouting.Highway, railway tunnel, urban subway, hydraulic power station underground caverns, such as grouting engineering, can be used in dam, slope, soft rock reinforcement soil grouting engineering.
mortar spraying machine
Structure
Features:
1.The machine featured with uniform spraying and strong adhesion.
2.The gun and nozzle connection can be selected in any direction for easy operation.
3. The mortar spraying machine is multi-functional device and can be both sprayed or shotcreted.
Specification
We also supply the diesel engine power optional
|
Model
|
311(Z20)
|
511
|
711
|
|
Conveying Pipe Diameter
|
32mm
|
38mm
|
38mm
|
|
Air Pump Power
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Motor Power
|
4kw
|
7.5kw
|
7.5kw
|
|
Voltage
|
380V Three Phase Electric/Diesel Engine
|
380V Three Phase Electric/Diesel Engine
|
380V Three Phase Electric/Diesel Engine
|
|
Spraying Area
|
150-170m²/h
|
180-200m²/h
|
220m²/h
|
|
Working Pressure
|
5-8mpa
|
5-8mpa
|
5-8mpa
|
|
Conveying Flow
|
3m³/h
|
3m³/h
|
4m³/h
|
|
Water:Cement:Sand
|
1:1:3
|
1:1:3
|
1:1:3
|
|
The Maximum Passing Particle
|
4mm
|
4mm
|
4mm
|
|
Maximum Vertical Distance
|
10-15m
|
15-20m
|
20-25m
|
|
Maximum Horizontal Distance
|
25-35m
|
30-40m
|
40-50m
|
|
Overall Dimensions
|
1600*450*900mm
|
1700*600*1100mm
|
1800*650*1000mm
|
|
Total Weight
|
150kg
|
300kg
|
360kg
|
|
Scope of Application
|
motar,putty,paint,etc
|
motar ,putty,paint,etc
|
motar ,putty,paint,etc
|
