Quick Details
-
Brand Name:
-
Hongji
-
Dimension(L*W*H):
-
Specific Model
-
Weight:
-
1800 KG
-
Product name:
-
Low Price River Stone 100tph Sand Making Machine For Sale
-
Package:
-
wooden box
-
Advantage:
-
high quality and good price
-
Color:
-
Customized
-
Test&Installation:
-
Rofessional Engineer Assigned
-
Spare parts supply:
-
Lifelong Time
-
After sale Service:
-
Life Long Operation Time
-
Max feeding size:
-
100mm
-
Keyword:
-
sand making machine
-
The Machines classification:
-
Building Stone Production Line
Quick Details
-
Application:
-
Building Materials
-
Capacity(t/h):
-
15-650TPH
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongji
-
Dimension(L*W*H):
-
Specific Model
-
Weight:
-
1800 KG
-
Product name:
-
Low Price River Stone 100tph Sand Making Machine For Sale
-
Package:
-
wooden box
-
Advantage:
-
high quality and good price
-
Color:
-
Customized
-
Test&Installation:
-
Rofessional Engineer Assigned
-
Spare parts supply:
-
Lifelong Time
-
After sale Service:
-
Life Long Operation Time
-
Max feeding size:
-
100mm
-
Keyword:
-
sand making machine
-
The Machines classification:
-
Building Stone Production Line

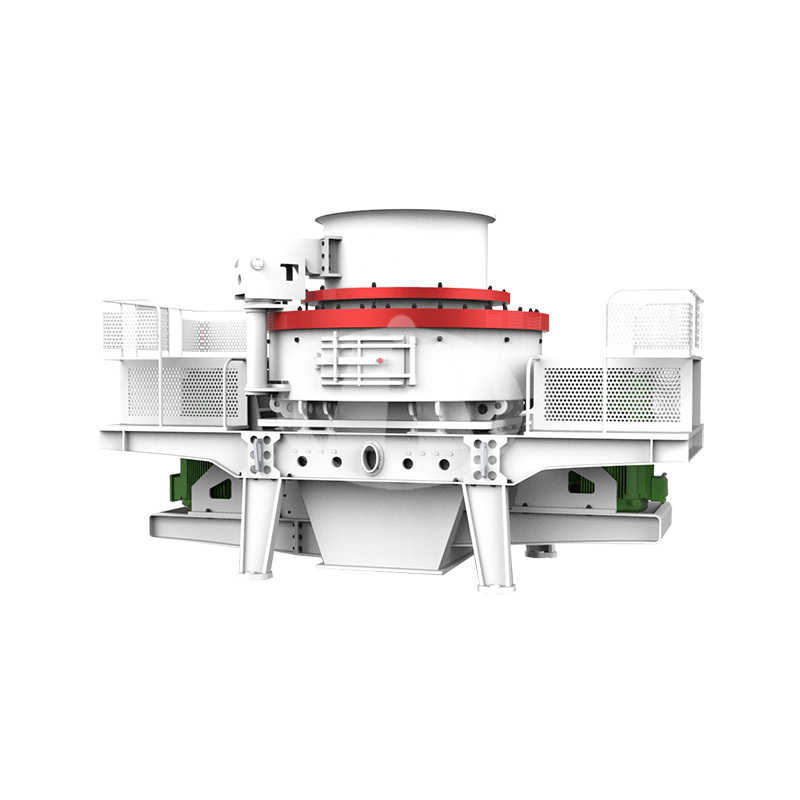

Big Reduction Ration Vsi Sand Making Impact Crusher Plant
VSI crusher machine can be used in Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, slags, artificial sand production. Can be used in Building aggregate, highway, asphalt concrete and cement aggregate production.
The working principle
1) Center Feeding:
Raw material falls down into feed hopper, and then the material enters impeller through central entrance hole. It is accelerated in high-speed impeller, and then it is thrown out at the speed of 60-75m/s. When hitting impact plate, it is crushed. Final products come downwards though outlet.
2) Ring Feeding:
Raw material falls down into feed hopper, and then through ring, it is divided into two parts by material-dividing plate. One enters into impeller through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Material, which is thrown out by impeller at the speed of 60-75m/s, is hit coming down from outside of material-dividing plate. In this way, material is crushed.
VSI crusher machine technical data:
| Model | Feed at center&sides | Feed at center | Soft Material | Hard Material | REV (r/min) | Power (kw) | Motor Model | Machine Size (mm) |
| Capacity (t/h) | Max.Feeding (mm) | |||||||
| VSI5X7615DR | 150-280 | 70-140 | 35 | 30 | 1700-1900 | 4-75x2 | Y280S-4/75 | 4100x2330x2300 |
| VSI5X8522DR | 240-380 | 120-190 | 40 | 35 | 1500-1700 | 4-110x2 | Y315S-4/110 | 4140x2500x2700 |
| VSI5X9532DR | 350-540 | 180-280 | 45 | 40 | 1300-1510 | 4-160x2 | Y315L1-4/160 | 4560x2600x2900 |
| VSI5X1145DR | 500-640 | 250-360 | 50 | 45 | 1100-1310 | 4-220x2 | Y355M1-4/220 | 5000x2790x3320 |
