Quick Details
-
Rated Power:
-
500W
-
Dimension(L*W*H):
-
85 x 70 x 68 cm
-
Weight (KG):
-
96
-
Model:
-
SA-BWG
-
Feature:
-
Tube Precise cut
-
Available Diameter:
-
5-55mm
-
Cutting Length:
-
5-9999mm
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SA
-
Voltage:
-
220V
-
Rated Power:
-
500W
-
Dimension(L*W*H):
-
85 x 70 x 68 cm
-
Weight (KG):
-
96
-
Model:
-
SA-BWG
-
Feature:
-
Tube Precise cut
-
Available Diameter:
-
5-55mm
-
Cutting Length:
-
5-9999mm
Product Parameter

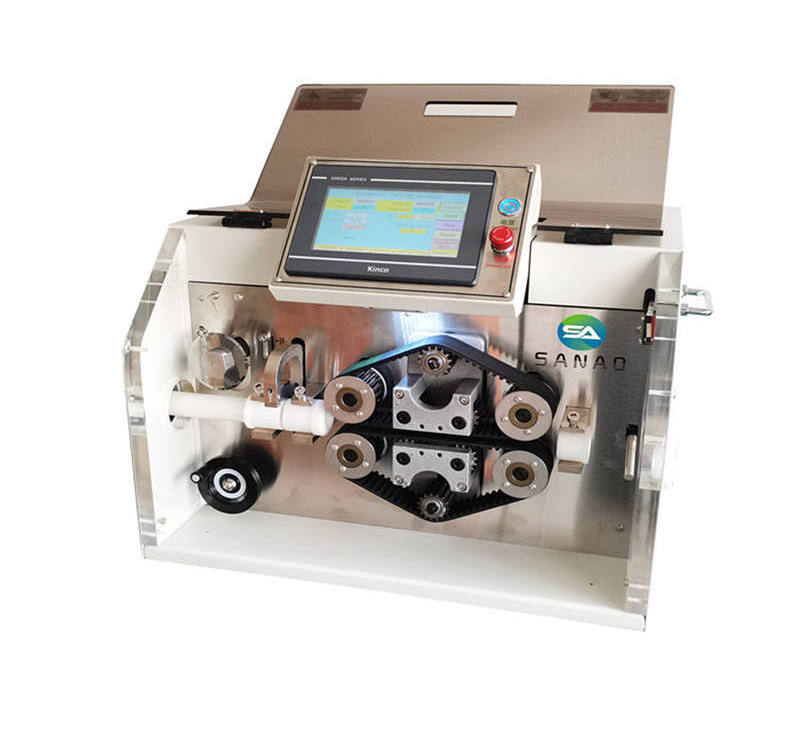

High precision corrugated tube cutting machine, It’s popular with customer because of perfect cutting effect and stable quality,It is widely used for cutting shield hose, steel hose, metal hose, corrugated hose , plastic hose，PA PP PE Flexible Corrugated Pipe.
Features:
1.Specially designed for the corrugated pipe processing of the automotive wire harness industry, high-precision PLC control, easy
to understand.
2.Can be used for round plastic round tube, bellows cutting, high processing efficiency, stable and reliable.
3.Feeding with stepper motor, it has the characteristics of stable feeding and accurate length. The circuit uses integrated
circuits for stable control and simple maintenance.
4.It's widely used in Highways,Bridges,Railways, Lightrail,Car, Transportation,Electrical,Monitoring equipment,Underground cable protection,Connect machine controls,All area of protection for insulated electrical cables and wires,ect.
Features:
1.Specially designed for the corrugated pipe processing of the automotive wire harness industry, high-precision PLC control, easy
to understand.
2.Can be used for round plastic round tube, bellows cutting, high processing efficiency, stable and reliable.
3.Feeding with stepper motor, it has the characteristics of stable feeding and accurate length. The circuit uses integrated
circuits for stable control and simple maintenance.
4.It's widely used in Highways,Bridges,Railways, Lightrail,Car, Transportation,Electrical,Monitoring equipment,Underground cable protection,Connect machine controls,All area of protection for insulated electrical cables and wires,ect.
|
Model
|
SA-BW60
|
SA-BW32
|
|
Cutting diameter
|
ø5-55mm
|
ø5-32mm
|
|
Rated Power
|
500W
|
500W
|
|
Power
|
220V 50-60HZ
|
220V 50-60HZ
|
|
Cutting tolerance
|
±0.5% cutting off length
|
±0.5% cutting off length
|
|
Cutting speed
|
10-60 pcs/min (depending on the length)
|
10-60 pcs/min (depending on the length)
|
|
Dimension
|
85 x 70 x 68cm (L x W x H)
|
85 x 70 x 68cm (L x W x H)
|
|
Weight
|
96KG
|
96KG
|
