Quick Details
-
Feature:
-
insulated, Thermal
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
UNT
-
Model Number:
-
AG-28L
-
Product name:
-

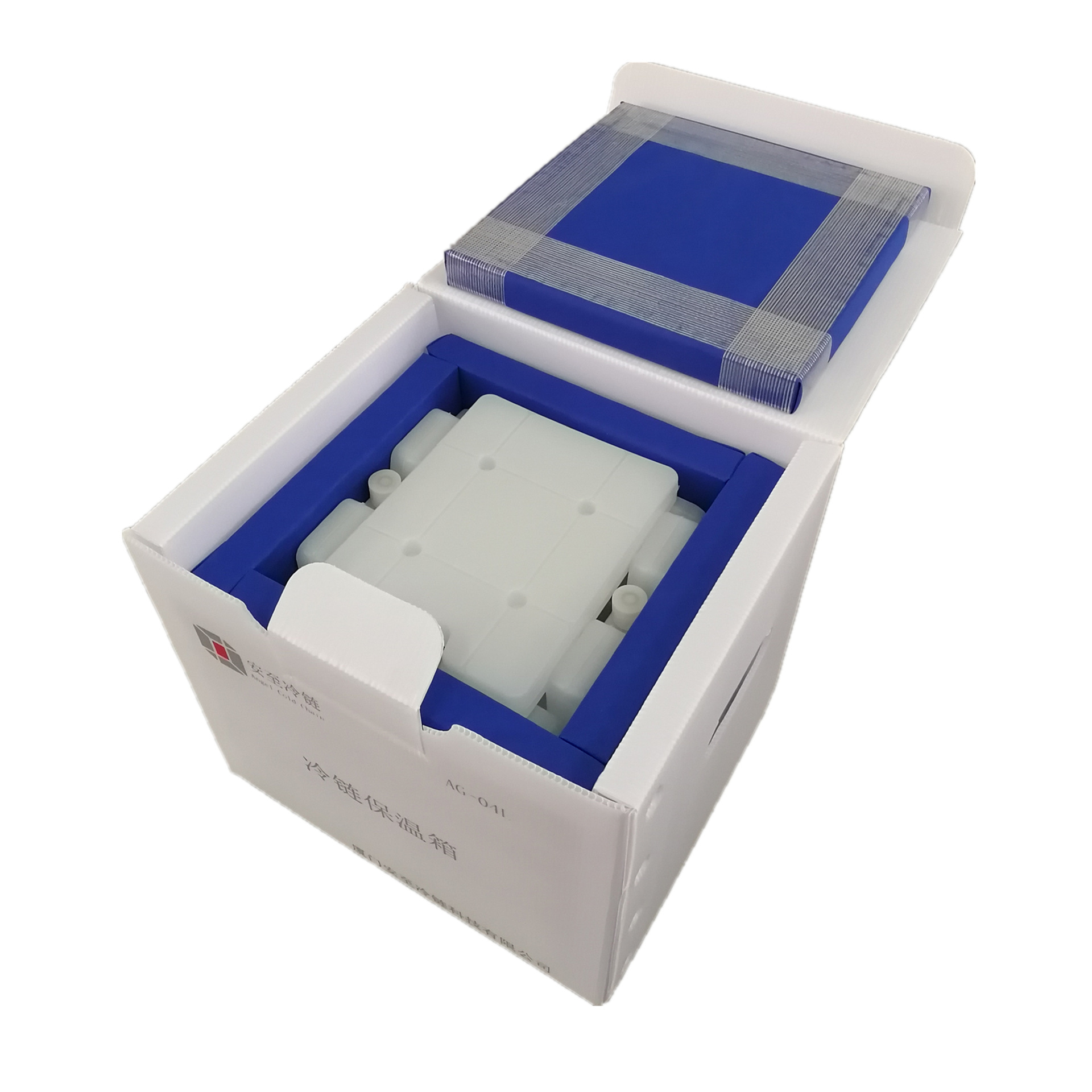

Fumed Silica VIP cooler box
-
Thermal Conductivity:
-
2~4mW/m*K (tolerance +/-0.5mW)
-
Insulation Layer:
-
Fumed Silica VIP
-
External Size:
-
470*430*435mm
-
Internal Size:
-
360*360*360mm
-
Volume:
-
48L
-
Pay load:
-
28L
-
Box Weight:
-
17kg
Quick Details
-
Material:
-
VIP+PP
-
Use:
-
Food
-
Pattern Type:
-
Diamond Lattice
-
Feature:
-
insulated, Thermal
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
UNT
-
Model Number:
-
AG-28L
-
Product name:
-
Fumed Silica VIP cooler box
-
Thermal Conductivity:
-
2~4mW/m*K (tolerance +/-0.5mW)
-
Insulation Layer:
-
Fumed Silica VIP
-
External Size:
-
470*430*435mm
-
Internal Size:
-
360*360*360mm
-
Volume:
-
48L
-
Pay load:
-
28L
-
Box Weight:
-
17kg
Product Description
Vacuum Insulation Panel, abbreviated as VIP, is composed of a filling core material and a vacuum protection layer. It can effectively reduce heat transfer caused by air convection, thus significantly lowering the thermal conductivity, which can reach 2~4mW/m.K- 1/10 of the thermal conductivity of traditional insulation materials.
The aerogel-type vacuum insulation panel exhibits excellent insulation performance and stability, making it the best material for making cold chain transport boxes. It is widely used in cold chain logistics transportation for high-value-added products such as in vitro diagnostic reagents, vaccines, blood, and bioproducts.
Specification
|
Product name
|
Fumed Silica VIP cooler box
|
|
Thermal Conductivity
|
2~4mW/m*K (tolerance +/-0.5mW)
|
|
Core Material
|
Fumed Silica VIP
|
|
Internal Size
|
360*360*360mm
|
|
External Size
|
470*430*435mm
|
|
Thickness
|
10-35mm
|
|
Working Temperature
|
-70-80℃
|
|
Box Weight
|
17kg
|
|
Density
|
180-200kgs/m3
|
|
Service Life
|
25 Years
|
Product Configurations
-Core Material: Fumed Silica, which is REACH & RoHs Compliant;
-Barrier Film: The barrier film is gas & water vapour impermeable. It's at a low thermal conductivity that can maximally prevent
the thermal bridge effect. It's used to envelope the core material for further evacuation and sealing to prevent outside gases
from entering the panel.
•
Standardized verification process, designed in accordance with ergonomics.
•
Stable and reliable performance, providing long-term stable temperature control.
•
Modular assembly, fast formation, damaged parts easy to replace.
•
Lightweight design, small in size, convenient for handling,storage and transportation.
•
Can be nested with each other and provide temperature control requirements with ultra-long durability
(>144h).
(>144h).
•
High utilization, optimal payload-to-volume ratio, and reduced customer transportation costs.
Product Performance
•
Providing complete plan design and simulation, guiding product processing and verification.
• Matching high latent heat storage and cooling materials in various temperature zones, providing core cold source for
• Highly stable gas silicon vacuum insulation board maintains low thermal conductivity throughout the life cycle of cold
• Matching high latent heat storage and cooling materials in various temperature zones, providing core cold source for
cold chain transport box.
• Highly stable gas silicon vacuum insulation board maintains low thermal conductivity throughout the life cycle of cold
chain transport box.
