Make/receive voice call 4g fwt 8848 volte 4g fixed wireless terminal for Emergency Elevator phone

2 RJ11/FXS fwt 4G lte fixed wireless terminal for telephone/PBX/Billing/Alarm system

1.General Description

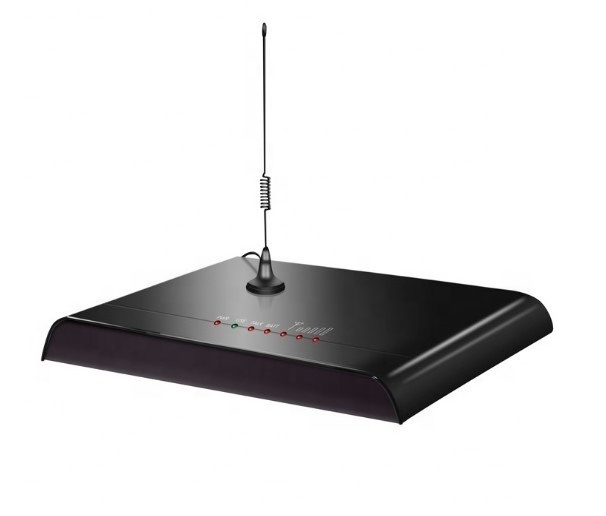

4G LTE FWT ETS-8848 is a 4G Lte to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local land line(PSTN) except your calls will go out from the 4G network. This device can both receive and make calls.

It is a 4G LTE Fixed Wireless Terminal that produces an analog FXS phone line .

2.Main application:

Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call;

connecting PBX for call extensions;

Connecting billing systems for public phone use;

Connecting alarm system for security purpose;

Connecting Vo-IP FXO gate-way to realize Vo-IP call termination.

Module employed:

Quectel 4G LTE Standard EC2x(EC25,EC21,EC20 R2.0 and EC20 R2.1)/EG21-G/EC200T etc.for different countries and networks.

3 . Features:

1) It is a 1 port 4G LTE fixed wireless terminal which has 2 RJ-11 outputs for extensions;

2) It supports VoLTE function;

3) It can connect with ordinary telephone set, PBX , Alarm system,Billing meter ,VO-IP Gate-way.

4) Employ industrial module Quectel EC2X series to make;

5) Simple to install and easy to maintain;

6) Steady module and reliable design ensures good performance;

7) Provides optimized circuit directly connecting the exchange device for extensions;

8) Compatible to most telephones, PBX device;

9) Strong signals with high gain antenna;

10) Attractive plastic casing;

11) SIM card supported (1.8V, 3V);

12) Caller ID display;

13) Support DTMF/FSK;

14) Provides reversal polarity signal for metering;

15) No noise and clear voice;

16) Suitable for wide voltage range and low power consumption;

17) Suitable for all kinds of weather and environment;

18) Locking PIN / network (optional);

4 . Technical Specifications:

Air interface standard:

Quectel 4G LTE standard module EC2X is a wireless module which is designed for the global market.it can be designed in many kinds of applications which can work on 4G LTE network.

Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W

Color: White /Black (optional)
AC-Adapter interface: Input: AC 110~240VAC  50~60Hz
Output: 12DC 1A.

AC-Adapter type: EU,US,AU,British can be optional

5.Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA
