Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Bailu, Bailu
-
Dimension(L*W*H):
-
8*150mm/Customized
-
Weight:
-
0.07 KG
-
Working Temperature Range:
-
0 - 850 ℃
-
Core Components:
-
Heating Wire
-
Application:
-
Air, liquid,mould
-
Standard leads length:
-
300mm
-
Heat intensity:
-
Not exceeding 30W/cm²
-
Insulation (when cold):
-
5 Min Ohmios 500 Watts minimun
-
Cold areas:
-
Depends on length and diameter
-
Working temperature:
-
850℃ Max
-
Resistance wire:
-
Ni80Cr20, FeCrAl etc
-
Resistance tolerance:
-
±5%
-
Sheath material:
-
Seamless SS304 / SS316/SS321 / Incoloy800
Quick Details
-
Type:
-
Cartridge Heater
-
Power Source:
-
Electric
-
Voltage:
-
220V/Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Bailu, Bailu
-
Dimension(L*W*H):
-
8*150mm/Customized
-
Weight:
-
0.07 KG
-
Working Temperature Range:
-
0 - 850 ℃
-
Core Components:
-
Heating Wire
-
Application:
-
Air, liquid,mould
-
Standard leads length:
-
300mm
-
Heat intensity:
-
Not exceeding 30W/cm²
-
Insulation (when cold):
-
5 Min Ohmios 500 Watts minimun
-
Cold areas:
-
Depends on length and diameter
-
Working temperature:
-
850℃ Max
-
Resistance wire:
-
Ni80Cr20, FeCrAl etc
-
Resistance tolerance:
-
±5%
-
Sheath material:
-
Seamless SS304 / SS316/SS321 / Incoloy800
Details Images
Product Paramenters
Bailu High Quality 220V 100W L Shape Cartridge Heater Heating
Rod Element with 500mm Waterproof Wire
|
Product Name
|
L shape cartridge heater
|
|
Sheath material
|
SUS304,321,316,Incoloy800,840
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Resistance tolerance
|
+10%, -5%
|
|
Voltages available
|
380V,240V, 220V,110V,36V,24V,12V or Customized
|
|
Max operating temp
|
800℃
|
|
Length tolerance
|
±1 mm
|
|
Diameter tolerance
|
±0.01mm
|
|
Standard Cold Zone
|
5-10mm
|
|
Thermocouple Location
|
type J or K are available
|
|
Insulation resistance (cold)
|
≥ 500 MΩ
|
|
Maximum leakage current (cold)
|
≤ 0.5 mA
|
|
Provide services
|
Accept customized services
|
Products Description

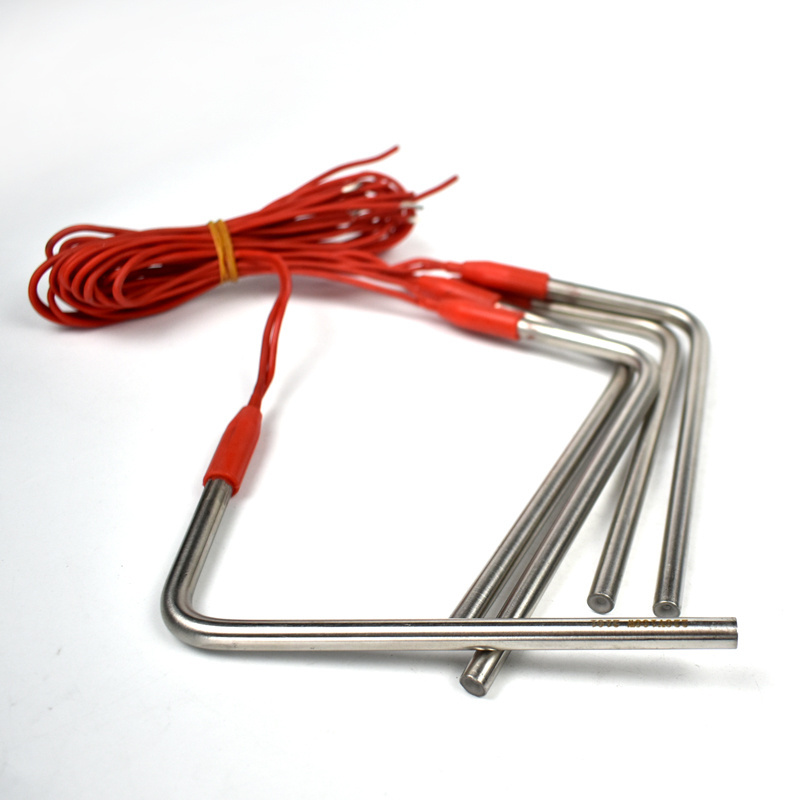

L-shaped cartridge heater
L-shaped cartridge heater is a seamless metal tube (carbon steel tube, titanium tube, stainless steel tube, copper tube) placed in the heating wire, and the gap is tightly filled with crystal MgO which has good thermal conductivity and insulation. The two ends are connected to the power supply through two lead rods, and the gap is filled with MgO then shrinking.
Features of L-shaped cartridge heater
1. According to the environment in which the equipment is used, select pipes with excellent performance to meet the special requirements of corrosion resistance, heat resistance, long dry burning life, rapid cooling and heating.
2. The surface of L-shaped electric heating pipe adopts special process and seamless stainless steel to prevent dry burning explosion.
3. Excellent electrical performance, improve equipment safety.
Application of L Shape Cartridge Heater
Plastic Processing Machinery
Water and Oil Heating Appliances
Packaging Machineries
Vending Machines
Dies and Tools
Heating Chemical Solutions
Ovens & Dryers
Kitchen Equipment
Product packaging & delivery
Package and Delivery
The packaging adopts internationally accepted cardboard or wooden box packaging, with protective film inside the packaging to ensure that the product is not damaged. It is shipped within 7-15 days after placing an order, and the packaging also accepts customized services. Please contact us for more details.
Order Notification
How to order?
Please offer these information:
1.Type of Cartridge Heater (shape, striaght or right angle)
2.Diameter of Tube
3.Overall length for Cartridge Heaters.
4.Wattage & Voltage
5.Lead type ( glass fibre / PTFE ) & lead length.
6.The lead wire length.
