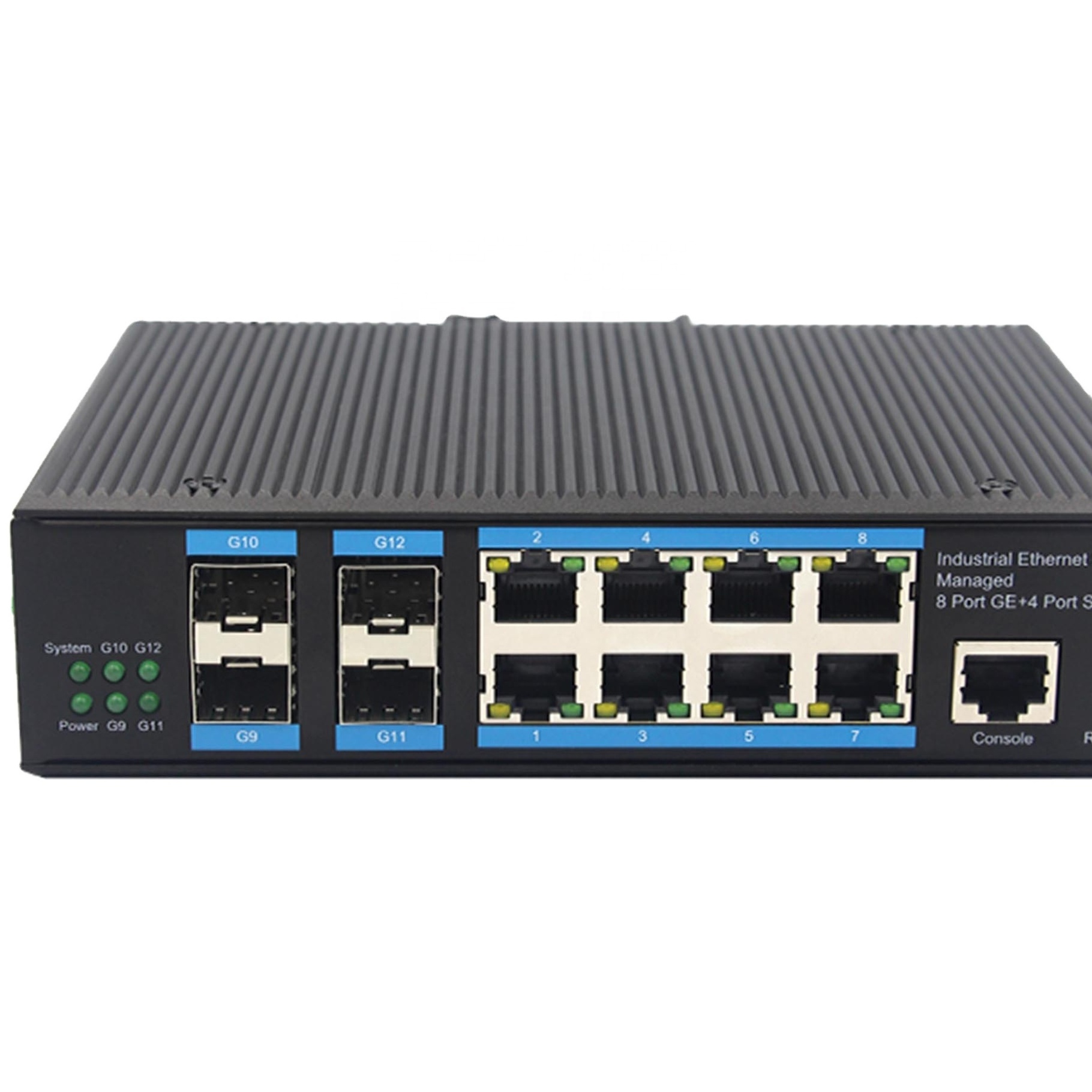

Customized Industrial Switch 4 GE PortS SFP+8 RJ45 PortS Full Gigabit Managed Industrial Ethernet Switch 10/100/1000

Customized Industrial Switch 4 GE PortS SFP+8 RJ45 PortS Full Gigabit Managed Industrial Ethernet Switch 10/100/1000

FOB Reference Price: Get Latest Price

≥1 Pieces

US $19

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: OEM

Use:: FTTX, FTTX

Transmission Rate:: 10/100/1000Mbps

Port:: 8 RJ45 port / 4 SFP

Certification:: CE FCC ROHS

Level of protection:: IP40

Operating temperature:: -30℃~+75℃

Input voltage:: DC10-58V

Installation:: Din-Rail

Warranty:: 5 years

Quick Details

Type:: industrial POE Ethernet switch

Model Number:: 1000M POE industrial Ethernet switch

Place of Origin:: Guangdong, China

Brand Name:: OEM

Use:: FTTX, FTTX

Transmission Rate:: 10/100/1000Mbps

Port:: 8 RJ45 port / 4 SFP

Certification:: CE FCC ROHS

Level of protection:: IP40

Operating temperature:: -30℃~+75℃

Input voltage:: DC10-58V

Installation:: Din-Rail

Warranty:: 5 years

Product Description

8 Port Poe Electrical RJ45 Ports / 4 SFP 10/100/1000M Industial Ethernet Switch

This product adopts industrial rail design, each device has 8 Gigabit optical fiber ports
and 4 Gigabit electrical ports, and adopts industrial redundant ring network design. Each device has two optical fiber ports to form cascading, single ring, tangent ring network and other topologies. The industrial redundant ring network is designed to achieve the stability, reliability and real-time performance of data transmission in harsh environments.

Application

The Ethernet switch can be widely used in various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial certificates, customs, shipping, electric power, water conservancy and oil fields.

Features

♦ IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant ♦ Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure ♦ All ports support wire speed switching, jumbo frame transmission ♦ Support upstream ports lightning protection ♦ Dynamic power control to ensure stable output power (Enhanced) ♦ Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products) ♦ Reliable short-circuit protection to ensure safety (Enhanced) ♦ Over-voltage and under-voltage protection (Some other manufacturers' products don't support this)

Specification

Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;IEEE802.3af; IEEE802.3at;
POE Standards	Standard PoE: IEEE802.3af/ IEEE802.3at
		PoE interface:1 port suport PoE
		Output power: Maximum power15.4W (IEEE 802.3af) Maximum power30W (IEEE 802.3at) POE port automatic identify af/at
		Output voltage: DC48~57V
		Power supply mode: 1/2+;3/6-
RJ45 Interface	10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive
Fiber Interface	1000BaseFX port (SC/FC/ST /SFP optional)
Switch properties	Application level: Layer 2 Total backplane bandwidth: 15.2Gbps Whole machine packet forwarding rate: 11.3088Mpps MAC address table: 1K Packet buffer: 512K Exchange delay: <3µs Exchange method: store-forward Power consumption: <3W
Protection Level	IP40
LED indicator	Power indicator: PWR Interface indicator: electrical port, optical port (Link/ACT)
Power Supply	Input voltage: 48~57V (dual power supply redundant backup) Access terminal: Phoenix terminal Support dual power supply redundancy Support built-in overcurrent 4.0A protection Support reverse connection protection
Working Environment	Working temperature: -40~85℃ ; Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation)
Industrial Standard	MI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz～150kHz), 10V(150kHz～80MHz) IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s IEC(EN)61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Mechanical properties	Shell: metal material Installation: DIN rail type, wall-mounted installation Weight: 0.36Kg Size:118 x 86 x 39mm(length×width×height)
MTBF	300,000 hours
Warranty	5 years
